Overview
Specification
| Parameter | Specification |
|---|---|

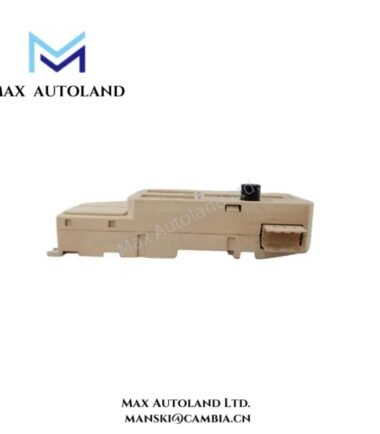

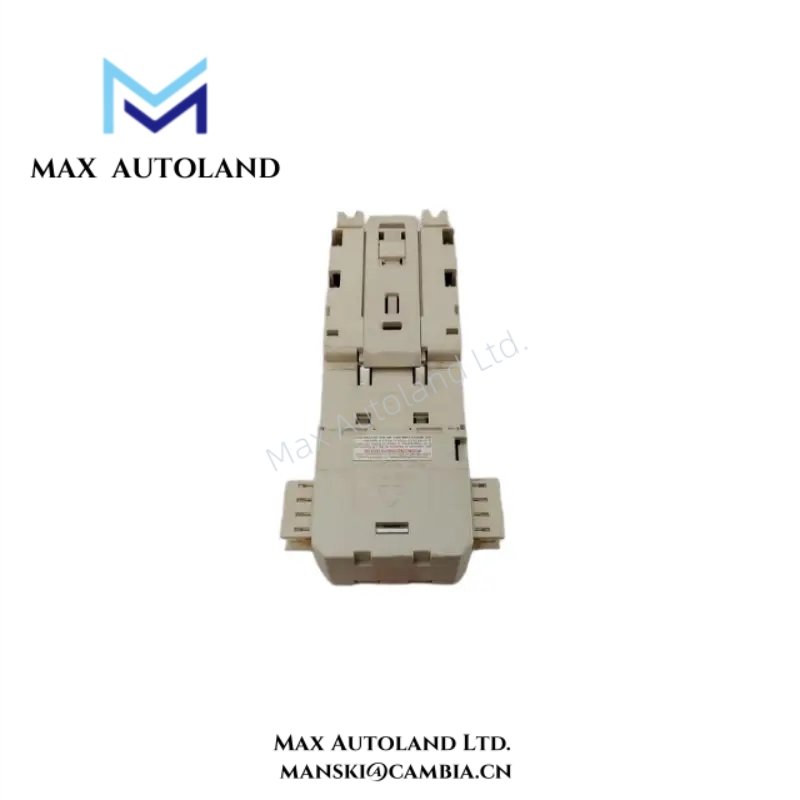

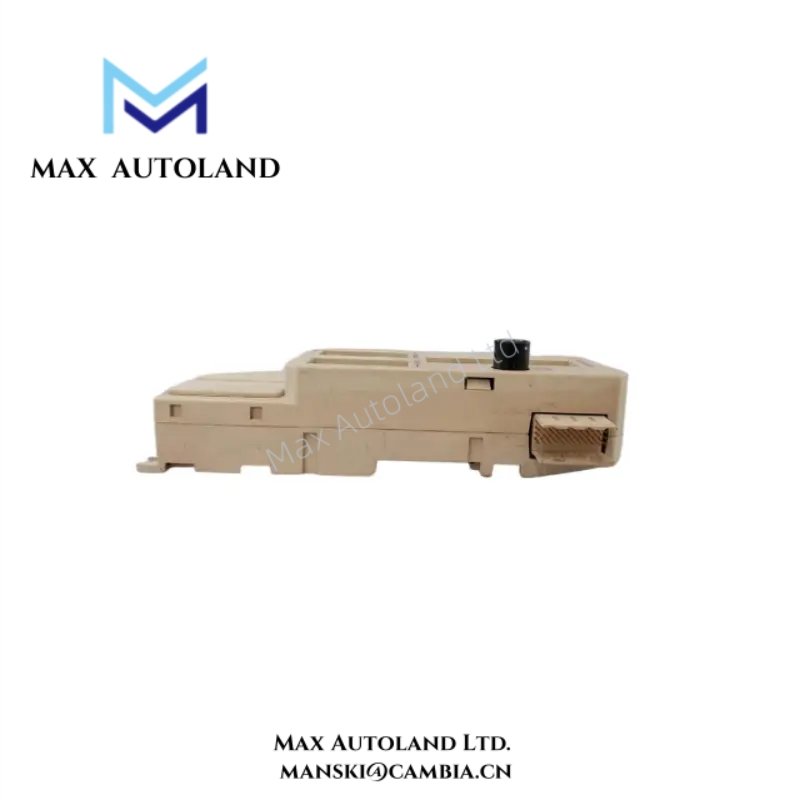

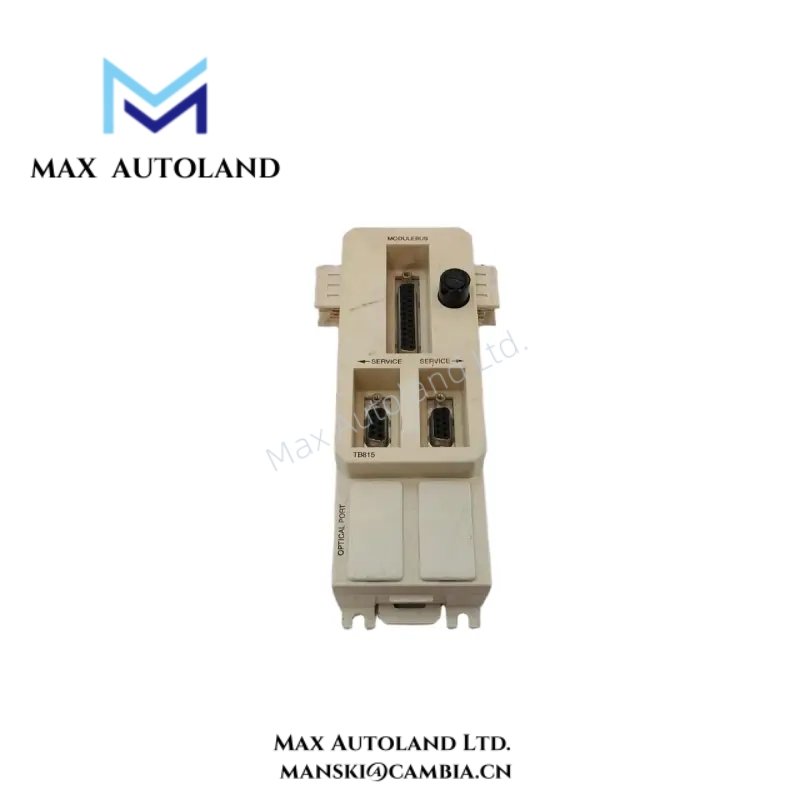

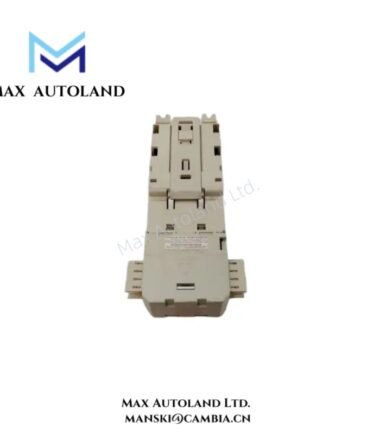

| Product Name | ABB TB815 Interconnection Unit |
| ABB Type Designation | TB815 |
| Ordering Number / Part Number | 3BSE013204R1 |
| Module Type | Interconnection Unit for Advant OCS / 800xA |
| Function | Provides reliable communication and interconnection between I/O modules |
| Included Components | 1 × TB815 Unit, 1 × TB807 Modulebus Terminator |
| Dimensions (H × W × D) | 250 mm × 50 mm × 90 mm |
| Weight | 0.25 kg |
| Environmental Compliance | RoHS exempt under EU Directive 2011/65/EU; WEEE Category 5 (Small Equipment) |
| Number of Batteries | 0 |
| HS Code | 85389091 |
| Installation | Direct integration into standard ABB racks for S800 I/O modules |
| Compatible Systems | Advant OCS, 800xA 4.0–5.1, S800 I/O 4.0–5.1 |
FAQ
A1: The package includes 1 TB815 Interconnection Unit and 1 TB807 Modulebus Terminator.
Q2: Is TB815 RoHS compliant?
A2: TB815 is exempt from RoHS under EU Directive 2011/65/EU, as specified in ABB documentation.
Q3: Which control systems are compatible with TB815?
A3: TB815 supports Advant OCS and 800xA systems, including S800 I/O modules 4.0 through 5.1.
Q4: Can it be installed in standard ABB racks?
A4: Yes, its compact dimensions (250 × 50 × 90 mm) allow flexible integration.
