Overview

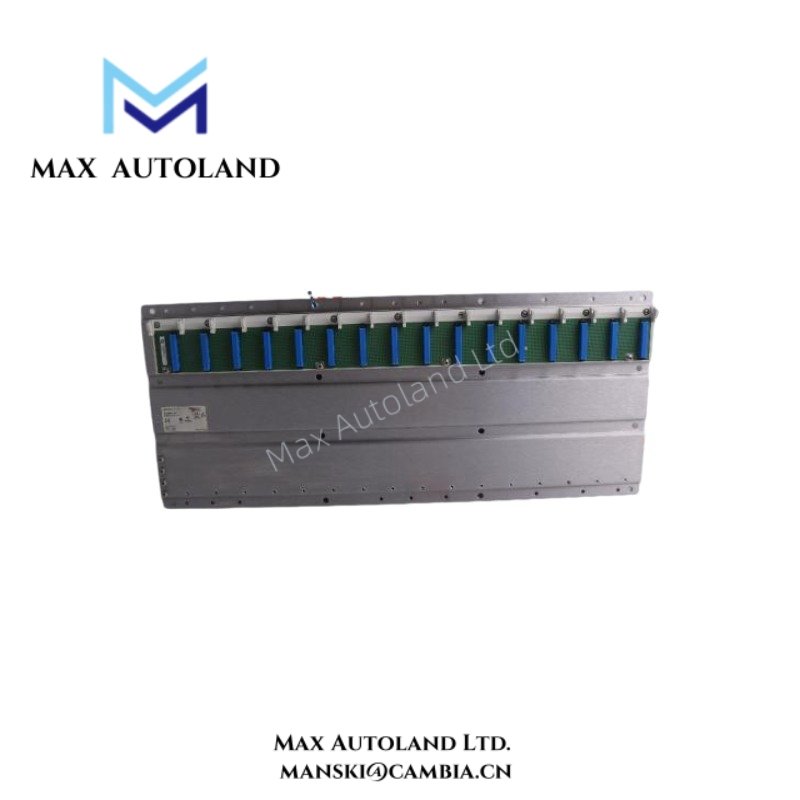

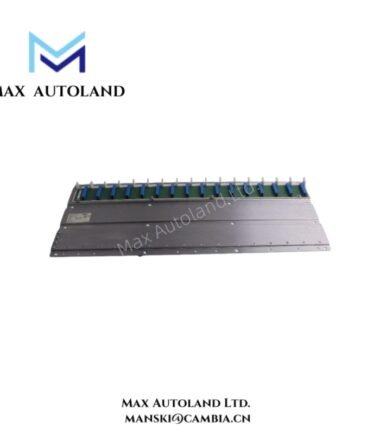

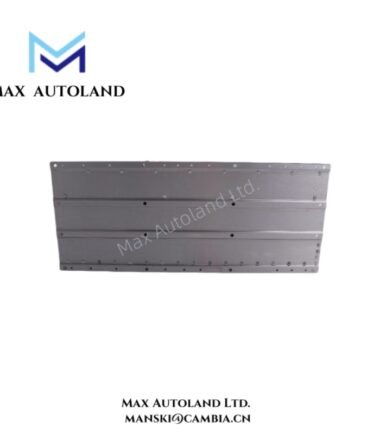

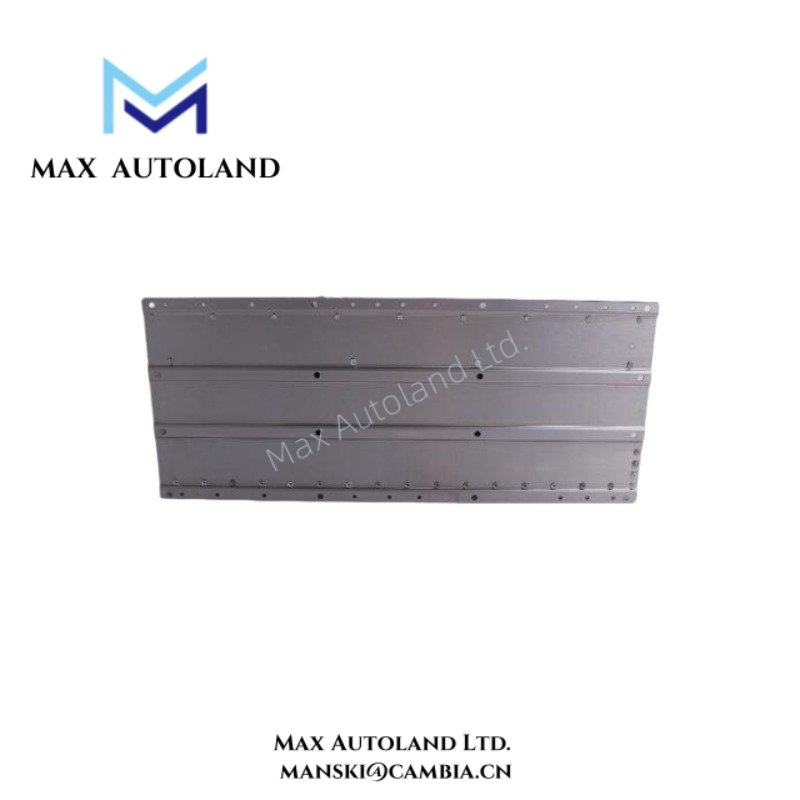

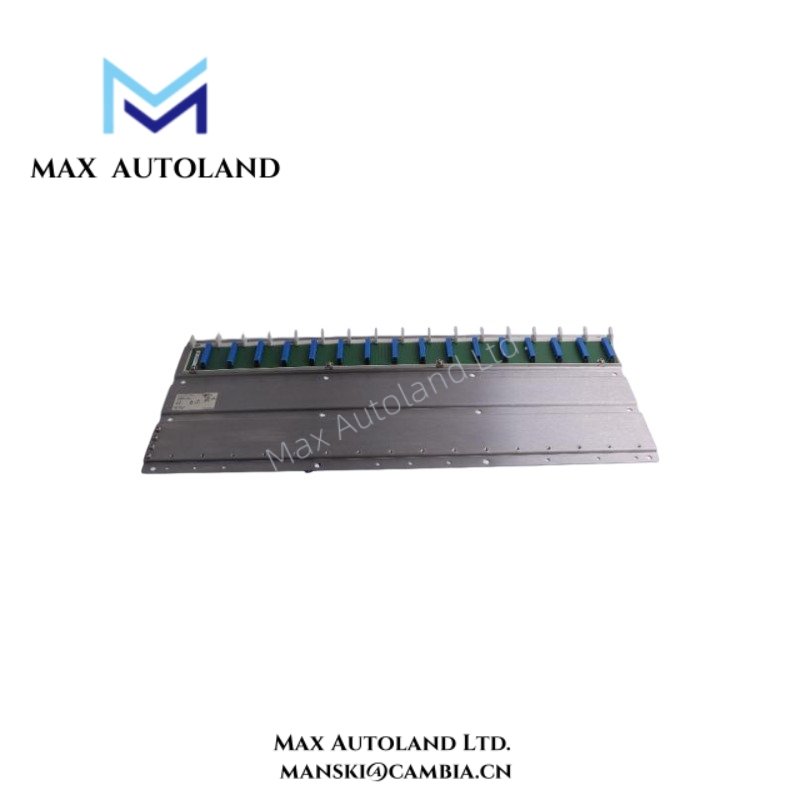

The Schneider Electric 140XBP01600 serves as a high-capacity foundation for the robust Modicon Quantum automation platform. Engineers specifically design this 140XBP01600 backplane to support diverse configurations including local, distributed, and remote I/O module setups. This essential component provides the structural and electrical backbone necessary for seamless communication across large-scale industrial control systems. Since the Modicon Quantum series thrives in demanding environments, the 140XBP01600 offers reliable connectivity for up to sixteen individual modules.
Specification
| Category | Specification | Details |
|---|---|---|
| Range of Product | Modicon Quantum automation platform | Compatible with the full Modicon Quantum series |
| Product Type | Rack Backplane | Designed for I/O integration in automation systems |
| Application | Local I/O Modules | Supports modules installed directly on the rack |
| Distributed I/O Modules | Integrates with distributed I/O networks | |
| Remote I/O Modules | Allows remote expansion via standard connections | |
| Number of Free Slots | 16 | Accommodates up to 16 I/O modules for flexible expansion |
| Mounting Support | Mounting Plate | Easy screw-fixed installation on standard panels |
| Fixing Mode | By Screw | Ensures stable and secure mounting in industrial environments |
| Product Weight | 3.53 lb (1.6 kg) | Lightweight design for minimal structural load |
| Package Details | Units per Package | 1 unit per package |
| Package Weight | 6.9 lb (3.13 kg) including packaging | |
| Category Code | 18155 | QUANTUM I/O & Power Supplies |
| Discount Schedule | PC21 | Pricing and discount category |
| GTIN | 00785901794929 | Global Trade Item Number for tracking and ordering |
| Returnability | Yes | Eligible for return under standard policy |
| Country of Origin | FR (France) | Manufactured in France |
| Sustainability | Green Premium Product | Eco-friendly design certified by Schneider Electric |
| RoHS Compliance | Compliant since 1336 | Declaration of conformity from Schneider Electric |
| REACh Compliance | SVHC Not Present | Meets regulatory thresholds for hazardous substances |
| Product Environmental Profile | Available | Details on environmental impact and lifecycle |
| End-of-Life Instructions | Available | Guidelines for safe disposal or recycling |
| Warranty | 18 months | Manufacturer-backed warranty period |
FAQ
Q1: Is the 140XBP01600 compatible with all Modicon Quantum modules?
A1: Yes, it supports local, distributed, and remote I/O modules from the Modicon Quantum series.
Q2: How long does shipping usually take?
A2: We ship within 3 days to 2 weeks depending on order size, commonly via DHL.
Q3: What is the weight of the backplane?
A3: The 140XBP01600 weighs 3.53 lb (1.6 kg), and the packaged weight is 6.9 lb.
Q4: Is this product new and original?
A4: Yes, it is fully original and new from Schneider Electric.
Q5: Can I return it if there’s a defect?
A5: We offer returns within 30 days for any quality issues.
