Overview

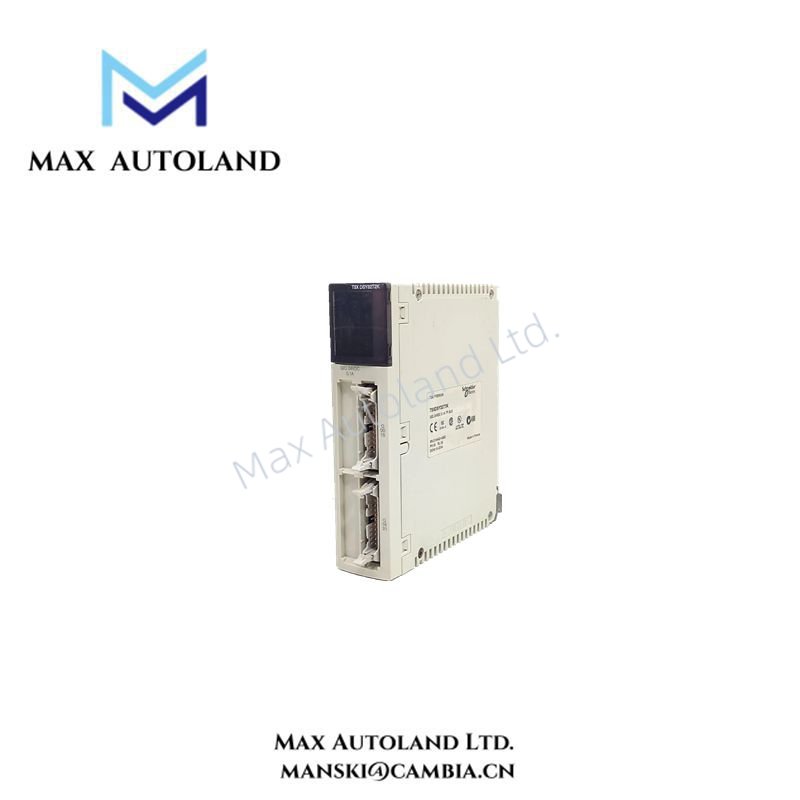

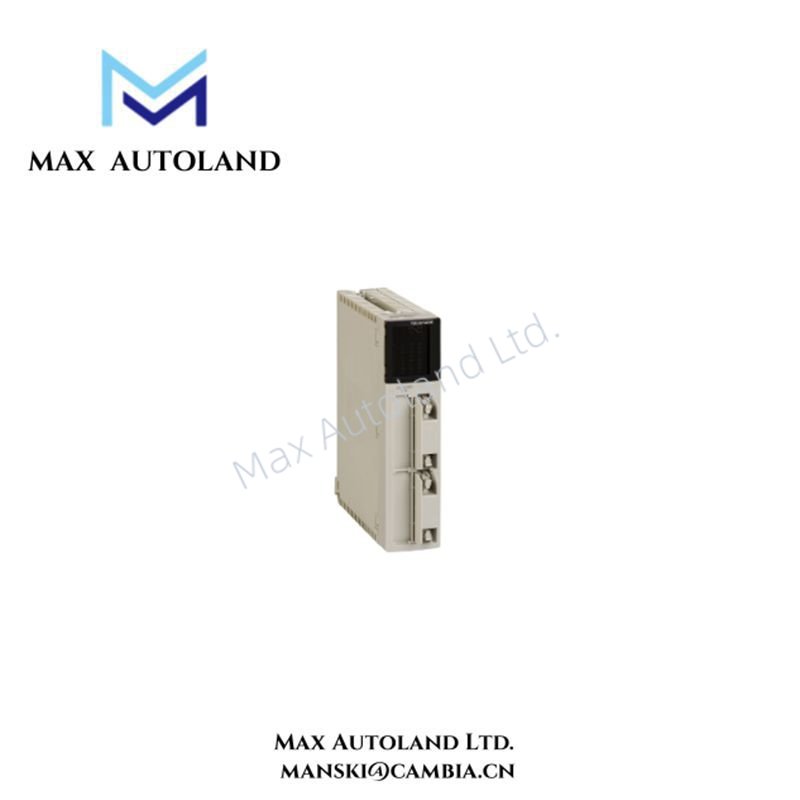

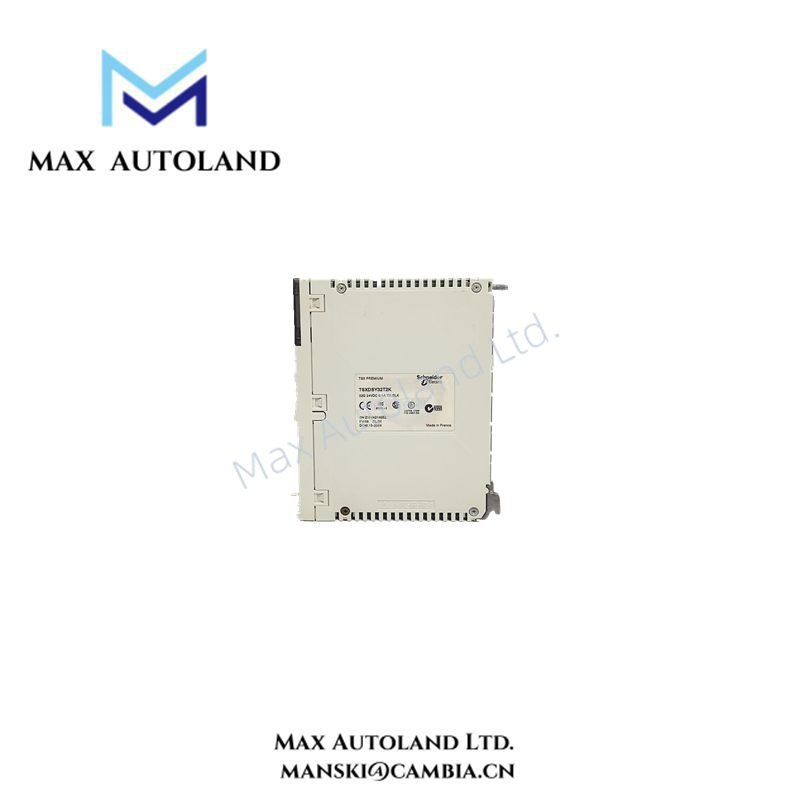

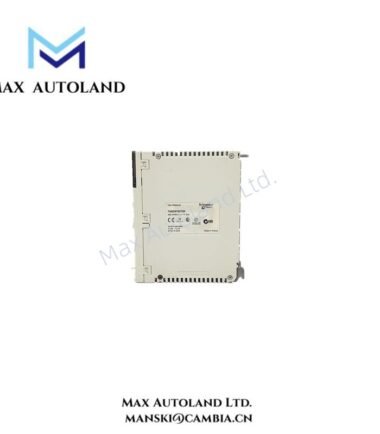

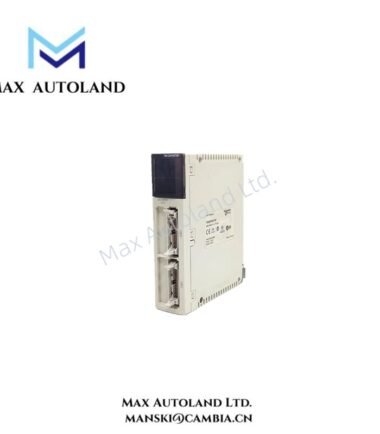

This output module integrates advanced overvoltage protection using a Transil diode, safeguarding equipment from electrical surges. Compact dimensions and a lightweight build allow seamless installation within Modicon Premium racks, ensuring compatibility and long-term performance.
Specification
| Specification | Details |
|---|---|
| Range of Product | Modicon Premium Automation Platform |
| Product Type | Discrete Output Module |
| Number of Outputs | 32 solid-state protected outputs |
| Output Type | Solid-state (protected) |
| Output Voltage | 24 V DC positive (EN/IEC 61131-2 compliant: 19–30 V) |
| Current per Channel | 0.1 A |
| Maximum Current per Module | 3.2 A |
| Maximum Leakage Current | 0.1 mA at 30 V |
| Maximum Tungsten Load | 1.2 W |
| Residual Voltage [Ures] | 1.5 V |
| Response Time | 1.2 ms |
| Paralleling of Outputs | Up to 3 outputs |
| Overvoltage Protection | Transil diode |
| Reverse Polarity Protection | Reverse-mounted diode |
| Overload Protection | Automatic trip |
| Short-Circuit Protection | Automatic trip |
| Minimum Load Impedance | 220 Ω at state 1 |
| Isolation Resistance | > 10 MΩ at 500 V |
| Power Dissipation | 1.6 W + 0.1 W × number of outputs |
| Product Compatibility | Dial and Power |
| Marking | CE |
| Electrical Connection | 2 HE-10 connectors |
| Current Consumption | 140 mA at 5 V DC |
| Module Format | Standard |
| Net Weight | 0.3 kg |
