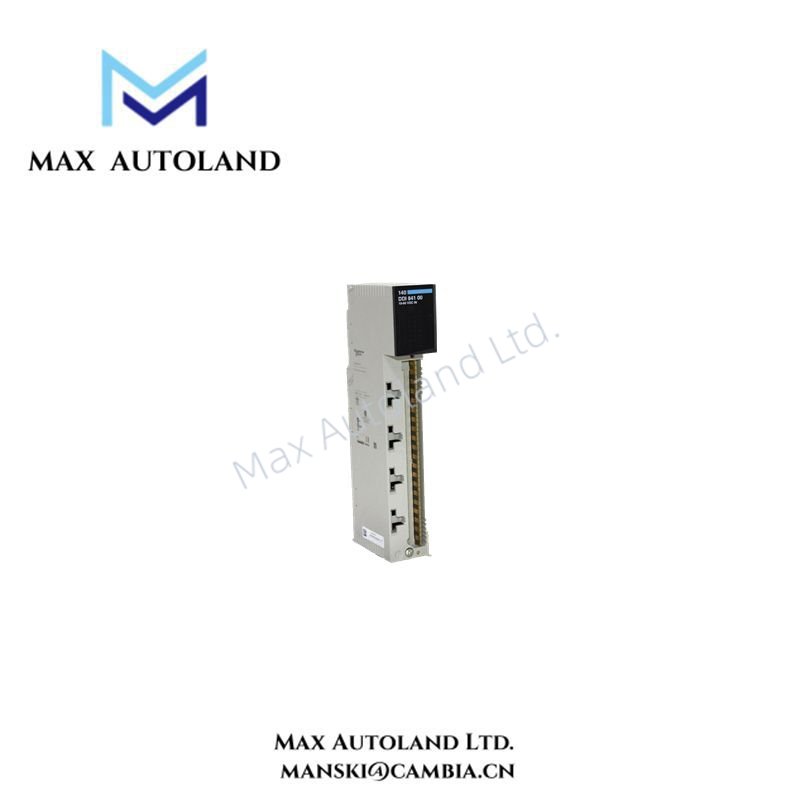

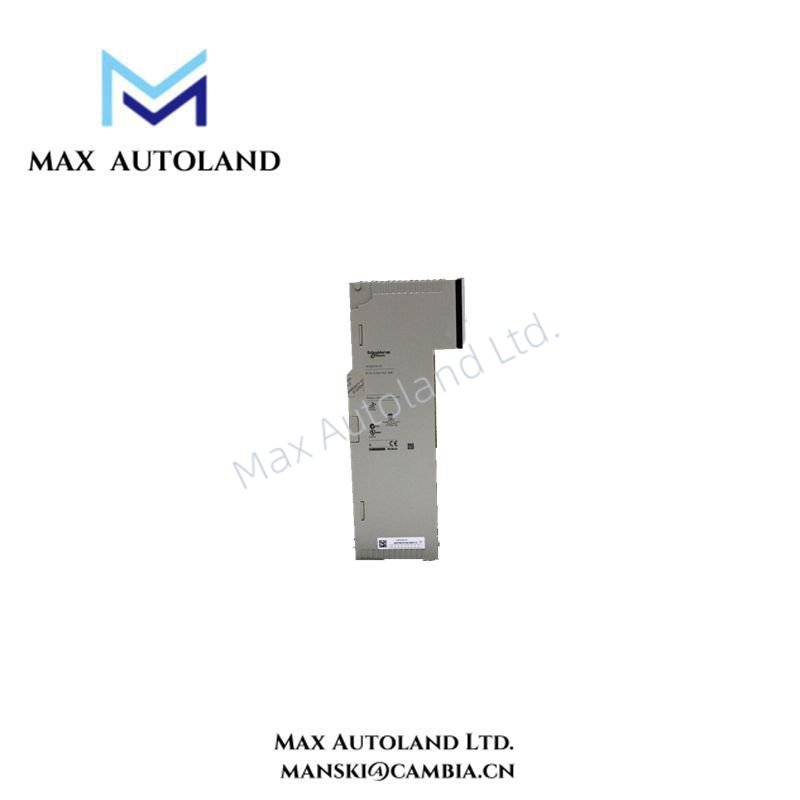

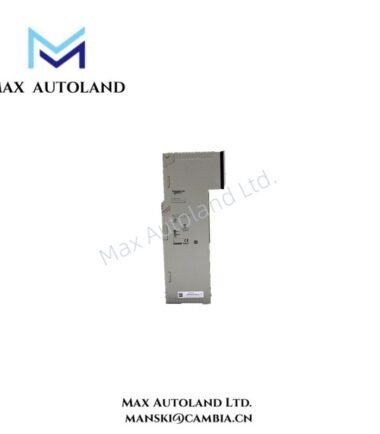

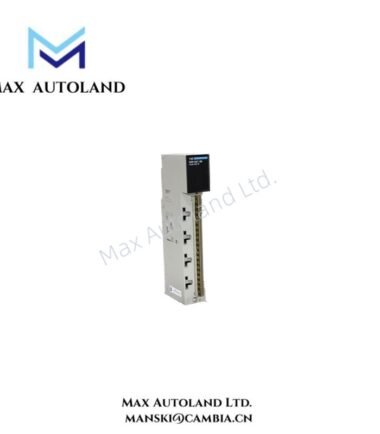

Overview
Specification
| Category | Specification |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product Type | DC discrete input module |
| Input Channels | 16 discrete inputs (grouped in 8 channels) |
| Logic Input | Positive (sink) |
| Input Voltage Limits | 10…60 V |
| Input Current | 12 V: 5–10 mA DC24 V: 6–30 mA DC48 V: 2–15 mA DC60 V: 1–5 mA DC |
| Voltage State 1 (ON) | 9…12 V at 12 V ±5%11…24 V at 24 V ±20%34…48 V at 48 V ±20%45…60 V at 60 V ±20% |
| Voltage State 0 (OFF) | 0…1.8 V at 12 V ±5%0…5 V at 24 V ±20%0…10 V at 48 V ±20%0…9 V at 60 V ±20% |
| Absolute Max Voltage | 75 V |
| Addressing Requirement | 1 input word |
| Response Time | 4 ms (0 → 1)4 ms (1 → 0) |
| Switching Frequency | ≤100 Hz |
| Isolation (Group/Bus) | 2500 Vrms DC for 1 min |
| Isolation (Between Groups) | 700 Vrms DC for 1 min |
| Power Dissipation | 1 W + (0.62 × number of points ON) |
| Bus Current Requirement | 200 mA |
| Marking | CE |
| Local Signalling | 1 LED green: bus active1 LED red: external fault16 green LEDs: input status |
| Module Format | Standard Quantum rack |
| Net Weight | 0.3 kg |
| Dimensions | 140 × 35 × 160 mm (approx.) |
| Standards | UL 508, CSA C22.2 No 142 |
| Certifications | FM Class 1 Division 2, C-Tick |
| Electrostatic Resistance | 4 kV contact (IEC 801-2)8 kV air (IEC 801-2) |
| EM Field Resistance | 10 V/m, 80–2000 MHz (IEC 801-3) |
| Operating Temperature | 0…60 °C |
| Storage Temperature | -40…85 °C |
| Relative Humidity | 95% non-condensing |
| Operating Altitude | ≤5000 m |
FAQ
Yes, all modules are 100% original and factory-sealed.Q2: Do you have the 140DDI84100 in stock?
Yes, we maintain inventory, and shipping occurs within 3 days to 2 weeks depending on order size.
Q3: What shipping options are available?
We typically use DHL, FedEx, or UPS to ensure fast and secure delivery.
Q4: What is the power consumption of this module?
The 140DDI84100 consumes a maximum of 5 W, drawing 450 mA at 5 VDC from the backplane.
Q5: Can I return the module if it is faulty?
Yes, we support returns within 30 days if any quality issues arise.
