Overview

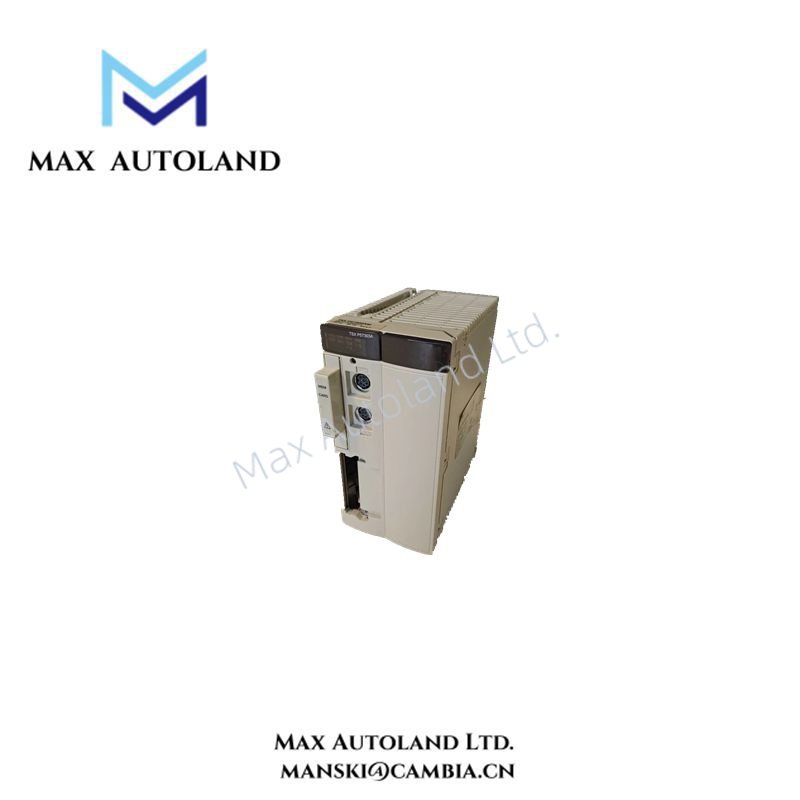

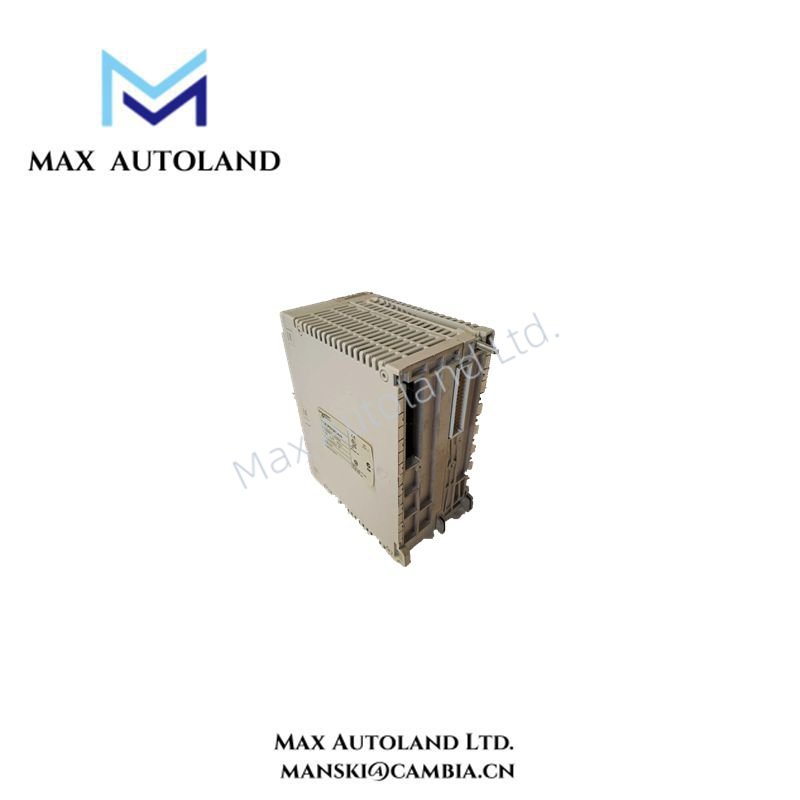

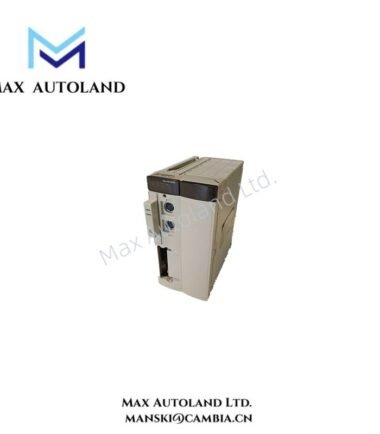

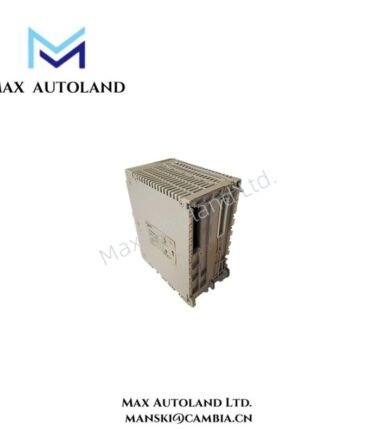

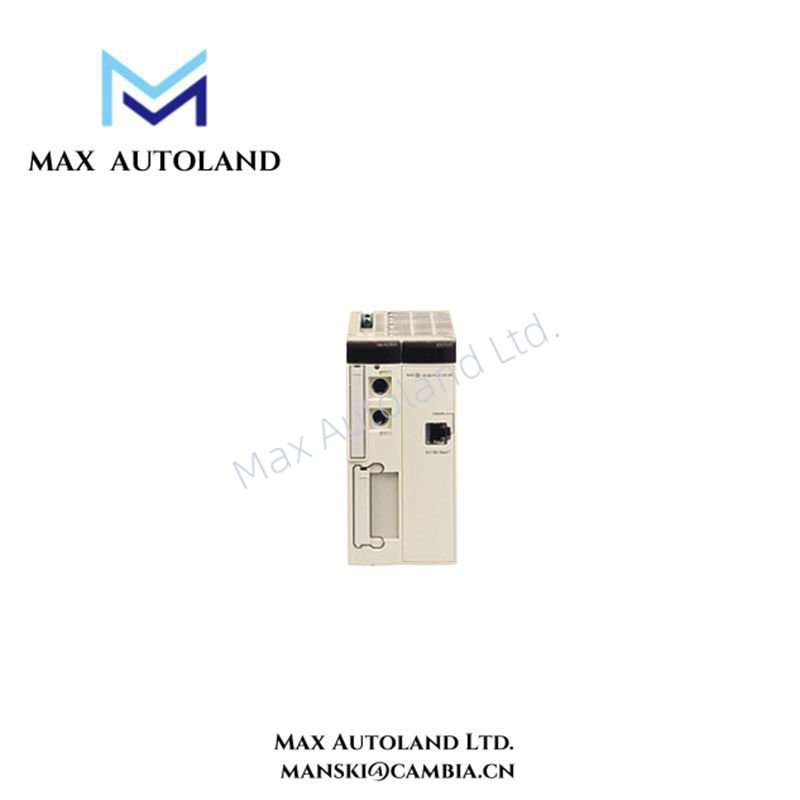

With 32-channel PL7 Junior compatibility, the TSXP57303AM supports efficient control and smooth communication with peripheral modules. Its compact double-format design optimizes installation space while maintaining stable performance across demanding industrial conditions.
Specification
| Category | Specification |
|---|---|
| Range of Product | Modicon Premium |
| Product Type | Double-Format PL7 Processor |
| Model Reference | TSXP57303AM |
| Internal RAM | 64K words for program and data storage |
| Channels | 32-channel PL7 Junior Pro support |
| Instruction Execution Time | 0.1 µs per simple Boolean instruction |
| Memory Type | Internal battery-backed RAM |
| Program Languages Supported | PL7 Junior / PL7 Pro |
| Communication Interfaces | Integrated Ethernet, Modbus, and optional Fipio |
| Expansion Slots | Supports additional I/O and communication modules |
| Dimensions (H x W x D) | 298 x 106 x 137 mm |
| Net Weight | 1.15 kg |
| Power Consumption | 5 V DC, 1150 mA |
| Mounting | Standard Premium PLC rack |
| Operating Temperature | 0…60 °C |
| Storage Temperature | -25…70 °C |
| Relative Humidity | 5…95 % without condensation |
| Certifications | CE, UL, CSA |
FAQ
Yes, we only provide brand-new, factory-sealed Schneider TSXP57303AM processors.
Q2: What is the memory capacity of the TSXP57303AM?
It includes 64K words of internal RAM for both program execution and data storage.
Q3: What communication options are available?
The processor supports integrated Ethernet and Modbus, with optional Fipio expansion modules.
Q4: What is the typical execution speed?
It performs simple Boolean instructions in approximately 0.1 microseconds.
Q5: What are your shipping and return policies?
We ship within 3 days to 2 weeks depending on order size, usually via DHL. If quality issues occur, returns are supported within 30 days.
