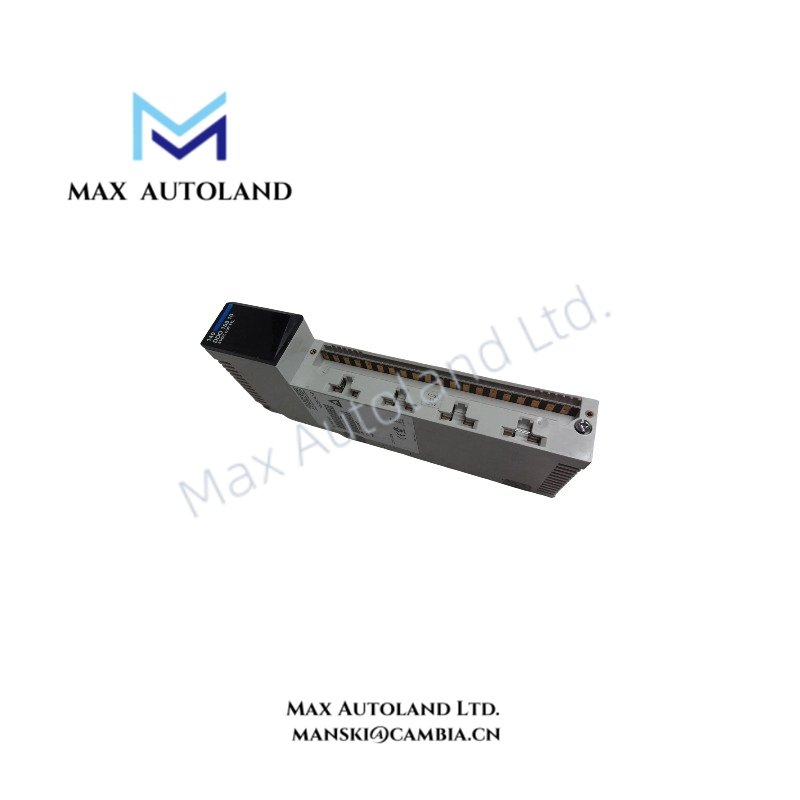

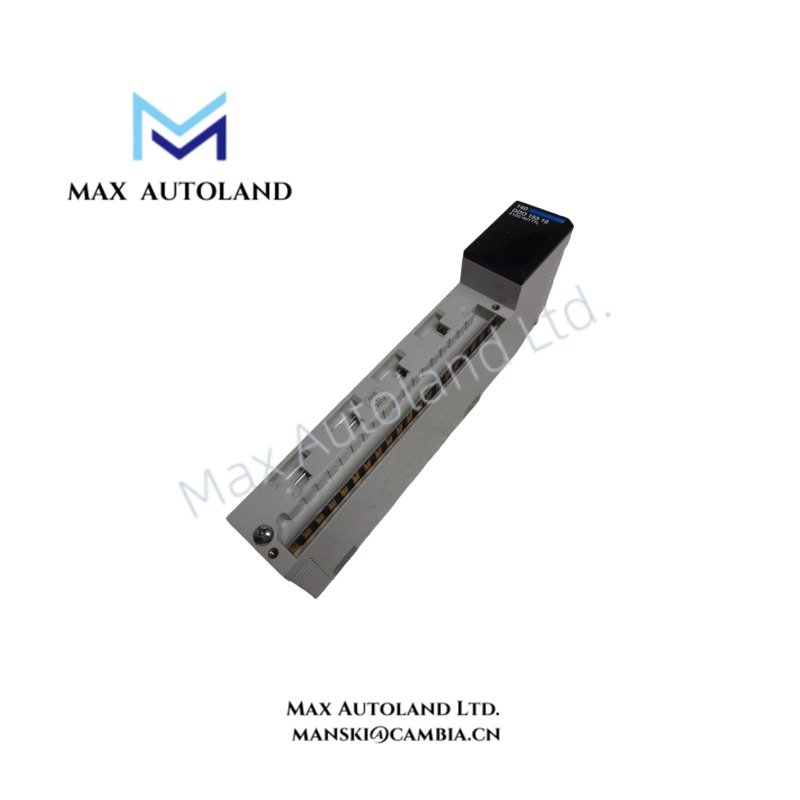

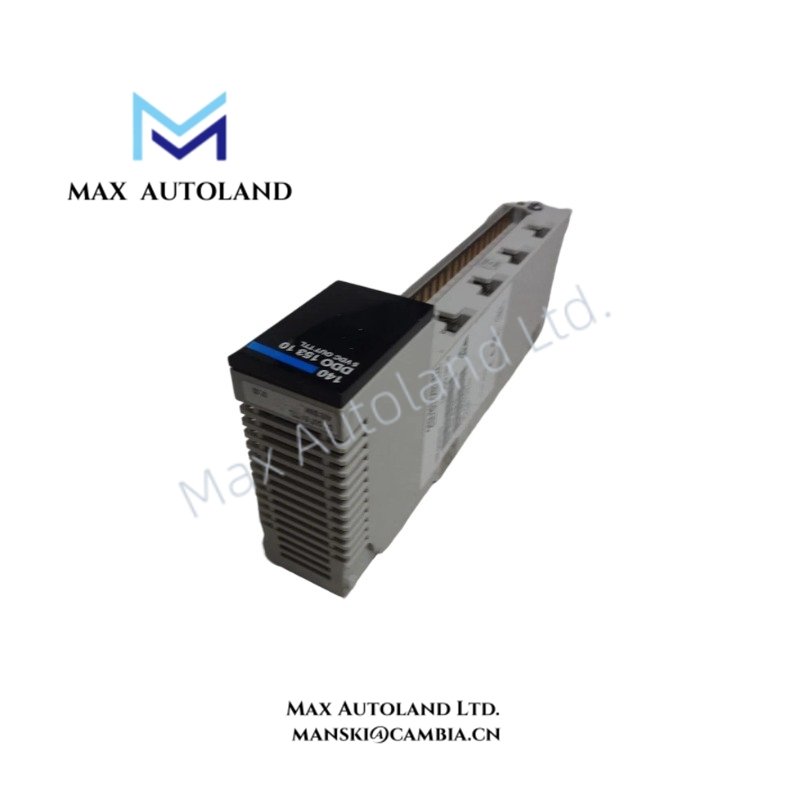

Configured for TTL discrete signal execution in the Modicon Quantum automation platform, the Schneider Electric 140DDO15310 (140DDO15310 TTL Discrete Output Module) provides direct electrical switching of 32 positive (sink) output channels for industrial control applications.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 140DDO15310 |
| Brand | Schneider Electric |
| Product Type | TTL Discrete Output Module |
| Series | Modicon Quantum Automation Platform |
| Origin | CN |
| Weight | 0.45 kg |
| Dimensions | Package: 31.2 cm x 16.3 cm x 4.5 cm |
| Operating Temp | 0 deg C to 60 deg C |
| Storage Temp | -40 deg C to 85 deg C |
| Power Consumption | 4 W |
| Discrete Output Number | 32 channels |
| Output Type | Positive (sink), TTL |
| Output Voltage | 5 V DC |
| Channel Grouping | 4 groups of 8 channels |
| Addressing Requirement | 2 output words |
| Rated Supply Voltage | 4…5.5 V DC |
| Maximum Load Current | 2.4 A per module, 600 mA per group, 75 mA per point |
| Voltage State 1 Guarantee | <= 0.2 V |
| Response Time | <= 250 us state 0 to state 1, <= 250 us state 1 to state 0 |
| Output Protection | Transient voltage suppression and internal fuse protection |
| Isolation Between Groups | 500 Vrms for 1 minute |
| Bus Current Requirement | 350 mA |
| Current Consumption | 2800 mA at 5 V DC |
| Local Indication | 1 green bus communication LED, 1 red fault LED, 32 green status LEDs |
| Module Format | Standard |
| Certifications | RMRS, GOST, C-tick, FM Class 1 Division 2 |
| Standards Compliance | UL 508, CSA C22.2 No 142 |
Backplane Bus Communication and I/O Density Scaling
The 140DDO15310 is designed for Modicon Quantum PLC architectures and uses the Quantum backplane interface for module communication and power distribution. The 32-channel TTL output density allows high point-count control configurations while maintaining grouped channel organization through four independent groups of eight outputs.
The module supports deterministic output updates through the PLC backplane system. Channel grouping, internal fuse protection, and transient voltage suppression provide electrical management for TTL-level field interface circuits. Firmware compatibility and hardware identification are managed through the Quantum platform configuration environment.
Frequently Asked Questions
Q: What type of electrical output signals does the 140DDO15310 provide?
A: The module provides 32 TTL discrete outputs with positive (sink) output configuration and a rated output voltage of 5 V DC.
Q: How is the module protected against output faults?
A: The module includes transient voltage suppression and internal fuse protection. Fault conditions such as loss of field power and blown fuse status are indicated through local LEDs.
Q: What is the maximum current capacity of the output channels?
A: The maximum load current is 2.4 A per module, with a limit of 600 mA per channel group and 75 mA per individual output point.
Field Installation Guidelines
- Install the module in a compatible Modicon Quantum rack and verify correct backplane seating before energizing the system.
- Confirm that field wiring matches the TTL output voltage requirements and output polarity configuration.
- Separate low-level TTL signal wiring from high-voltage or high-current conductors to reduce electrical interference.
- Connect cable shields according to the control cabinet grounding practice and avoid creating ground loops.
- Verify field power availability before commissioning outputs and confirm LED diagnostic states after startup.
- Ensure the rack power supply capacity is sufficient for the module current consumption and total backplane load.
