Overview
Specification
| Parameter / Attribute | Specification / Description |
|---|---|

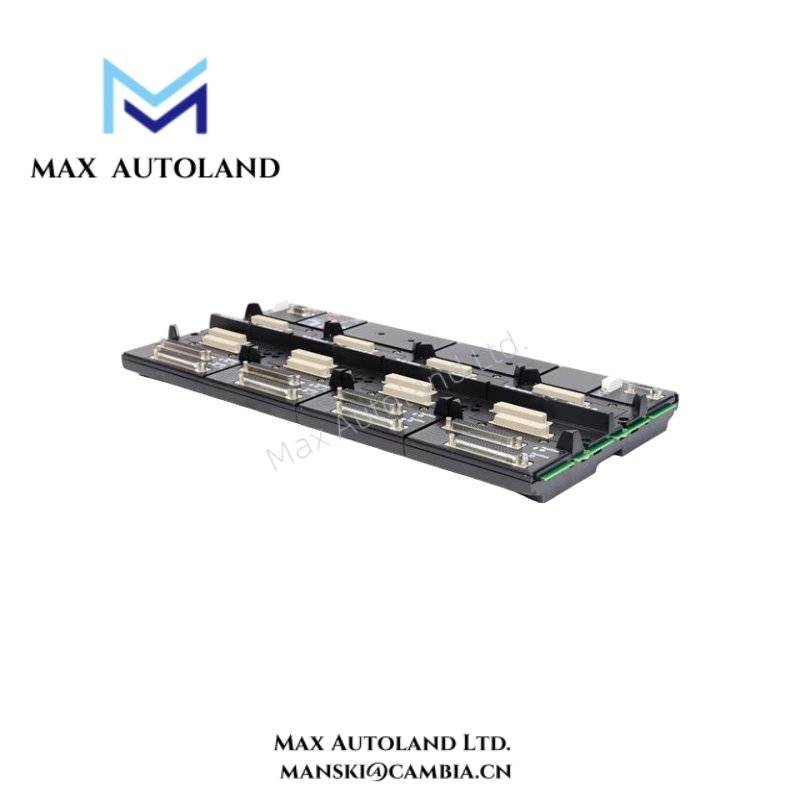

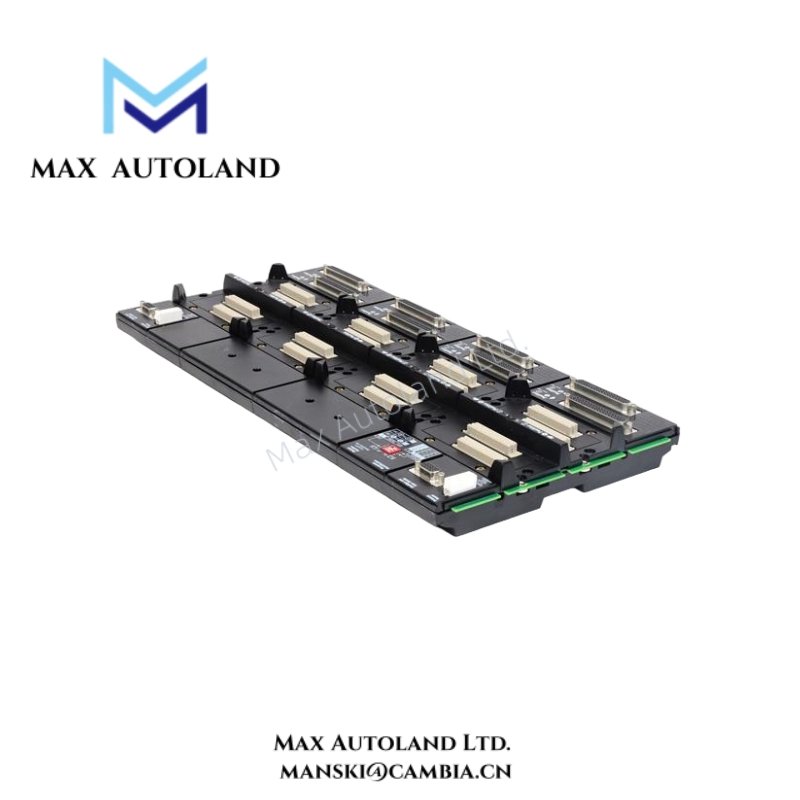

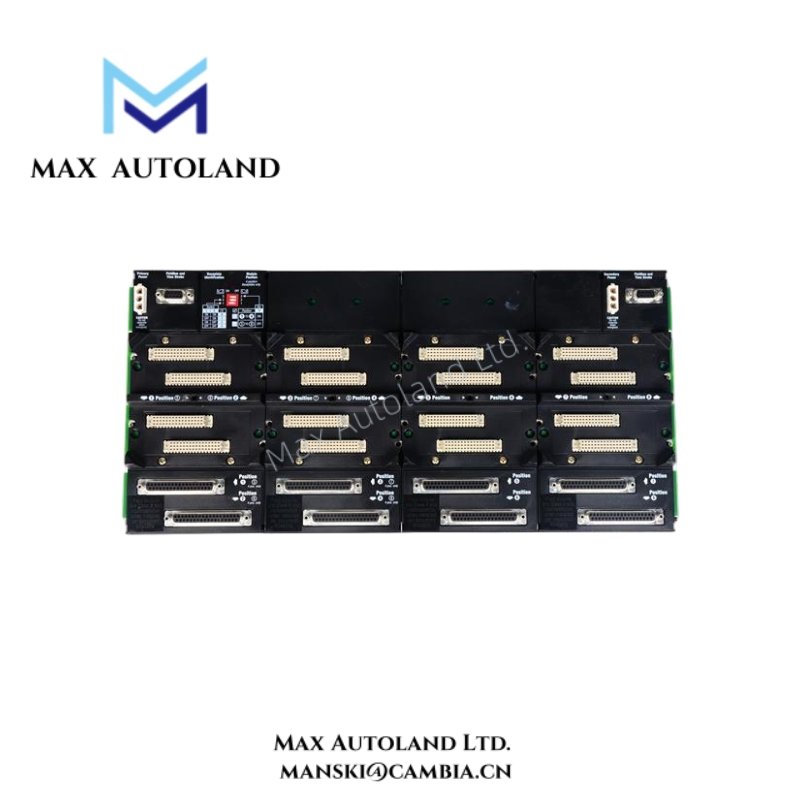

| Model / Part Number | P0926JM |
| Product Type | 8‑Position Modular Baseplate (Modular I/O baseplate) |
| Manufactured By | Foxboro |
| Module Capacity | Supports up to 8 I/A Series FBM (Fieldbus) modules simultaneously |
| Mounting Method | DIN‑rail mounting or panel/cabinet mounting (standard industrial enclosure) |
| Power Supply Input | 24 V DC (supports redundant dual 24 V DC feeds for redundancy) |
| Communication / Bus Interface | Dual fieldbus bus (A/B channels) and time‑strobe support for module communication and synchronization |
| Module Identification / Configuration | DIP‑switch for baseplate/module identification (for compatibility in multi‑plate systems) |
| Environmental / Operating Conditions | Operating temperature: –20 °C to +60 °C (–4 °F to +140 °F) Storage temperature: –40 °C to +70 °C (–40 °F to +158 °F) Operating relative humidity: 5% to 95% non‑condensing Operating altitude: –300 m to +3,000 m (–1,000 to +10,000 ft) |
| Weight | ~ 2.72 kg |
| Color | Black |
| Compliance / Warranty | Typically supplied with 12‑month warranty |
| Use Case / Compatibility | Suitable for mounting various Foxboro I/A Series FBM modules — analog I/O, discrete I/O, HART, RTD/TC, etc. |
| Installation / Maintenance Features | Front‑access module insertion allows easier maintenance; supports addition of further baseplates without system shutdown when redundant bus is used |
FAQ
A1: It supports up to 8 modules, arranged in a standard modular layout.Q2: Is the baseplate compatible with other brands?
A2: It is designed primarily for Foxboro modules but may support other standards if dimensions match.
Q3: Can it be mounted on a panel or DIN rail?
A3: Yes, it supports both standard DIN-rail and panel mounting options.
Q4: How does it improve system installation?
A4: Its modular design organizes modules neatly, simplifies wiring, and reduces setup time.
