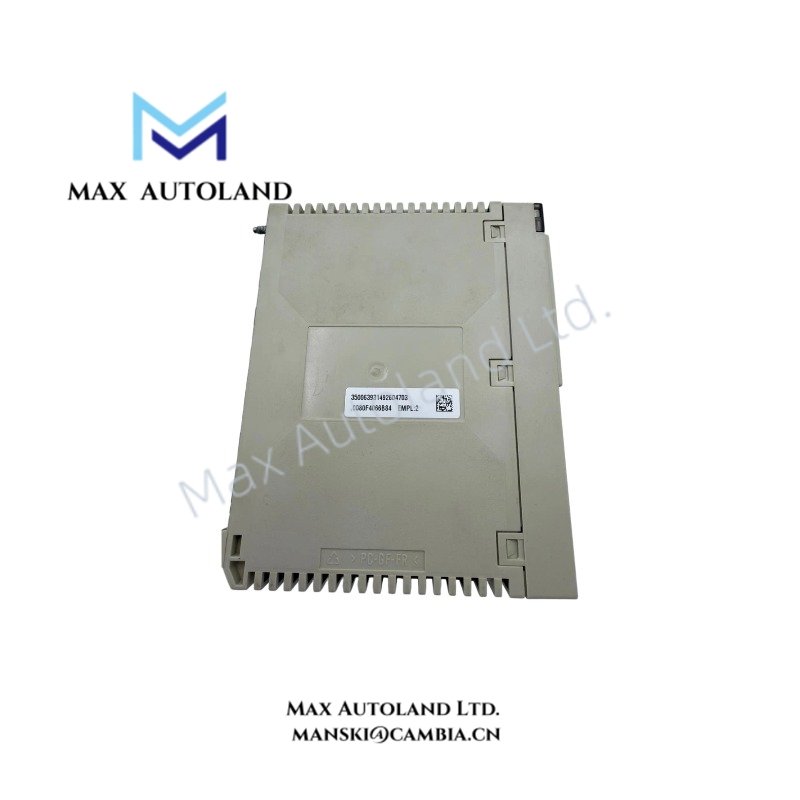

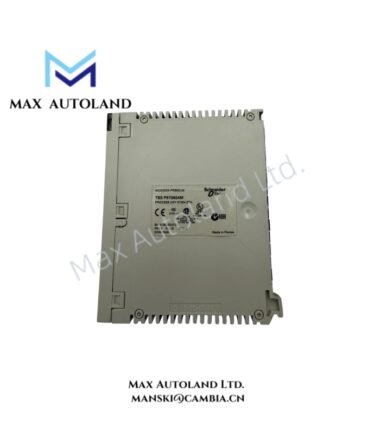

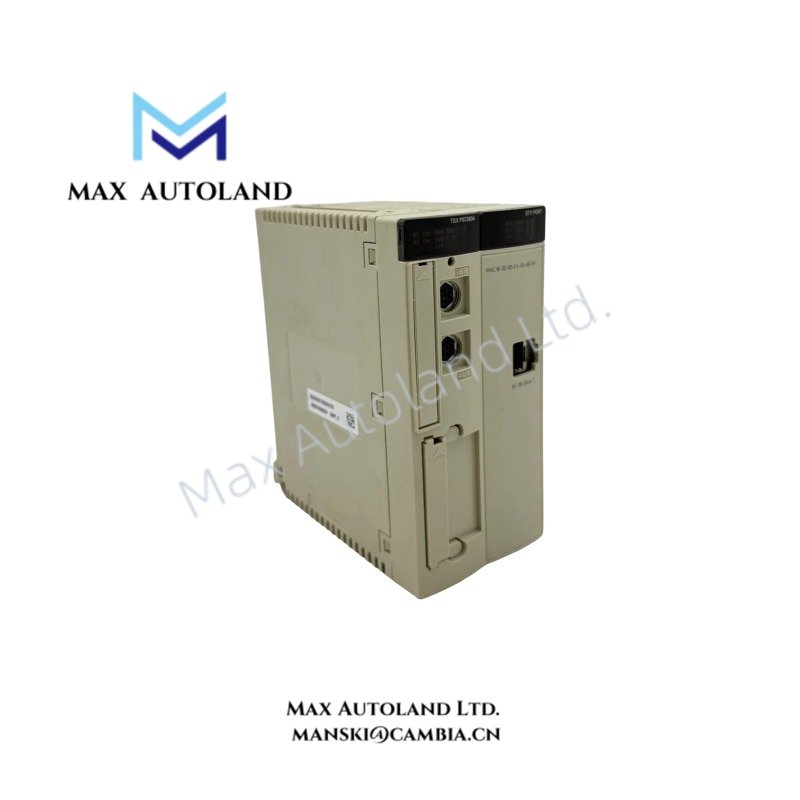

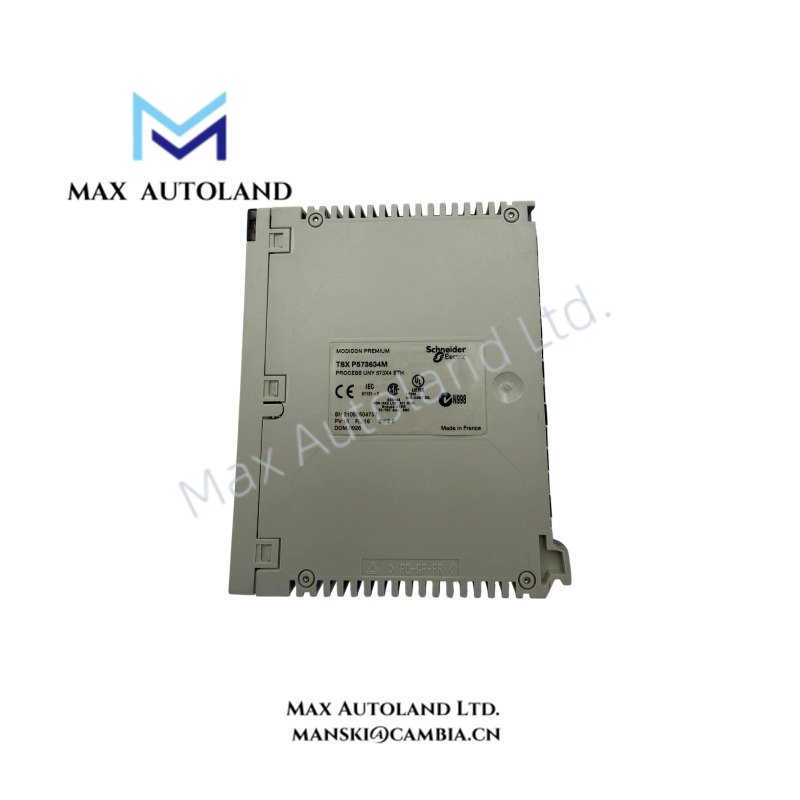

Configured for application execution and I/O control in the Modicon Premium Automation platform, the Schneider Electric TSXP573634M (TSXP573634M Unity Processor) provides direct physical/electrical execution through PLC backplane communication, Ethernet TCP/IP connectivity, and distributed automation control functions.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | TSXP573634M |
| Brand | Schneider Electric |
| Product Type | Unity Processor |
| Series | Modicon Premium Automation platform |
| Software Designation | Unity Pro |
| Origin | Not specified |
| Weight | 0.64 kg |
| Dimensions | 7.6 cm x 15.2 cm x 12.7 cm (shipping size) |
| Operating Temp | 0…60 deg C |
| Storage Temp | -25…70 deg C |
| Power Consumption | 1900 mA at 5 V DC |
| Module Format | Double |
| Number of Racks | 16 racks (4/6/8 slots) or 8 racks (12 slots) |
| Maximum Number of Slots | 128 / 96 / 64 slots depending on rack configuration |
| Discrete I/O Processor Capacity | 1024 I/O |
| Analog I/O Processor Capacity | 128 I/O |
| Application Specific Channels | Up to 32 |
| Process Control Channels | Up to 15, supporting up to 45 simple loops |
| Ethernet Interface | 10BASE-T / 100BASE-TX RJ45 |
| Serial Communication | 2 x female mini DIN RS485, 19.2/115 kbit/s |
| Communication Module Capacity | 1 / 2 / 3 / 8 modules |
| Internal RAM | 192 kB program and data without PCMCIA card |
| Internal RAM with PCMCIA | 1792 kB program, 192 kB data |
| PCMCIA Additional Storage | 16384 kB |
| Application Structure | 1 fast task, 1 master task, 64 event tasks |
| Boolean Instruction Execution Time | 0.12 us without PCMCIA card; 0.17 us with PCMCIA card |
| Word Arithmetic Execution Time | 0.17 us without PCMCIA card |
Firmware Flash Compatibility and PLC Backplane Communication
The TSXP573634M operates as a CPU processing unit within the Modicon Premium PLC architecture. The processor manages application execution, I/O scanning, communication services, and task scheduling through the Premium backplane system.
The processor supports firmware and application management through Unity Pro software tools and PCMCIA memory expansion. Program storage capacity changes according to the installed memory configuration, allowing application data management and backup functions within the controller environment.
The processor architecture supports I/O density scaling through multiple rack configurations, allowing up to 128 slots with distributed module placement. Ethernet TCP/IP communication provides connection capability through 10BASE-T and 100BASE-TX interfaces, while RS485 serial links support field device communication.
Frequently Asked Questions
Q: Can the TSXP573634M operate with different Premium rack configurations?
A: Yes. The processor supports configurations with up to 16 racks using 4/6/8-slot racks or up to 8 racks using 12-slot racks, according to the Modicon Premium platform architecture.
Q: What is the maximum I/O processing capability of the TSXP573634M?
A: The processor supports up to 1024 discrete I/O points and up to 128 analog I/O channels.
Q: Does the processor provide onboard communication interfaces?
A: Yes. The module includes an Ethernet TCP/IP RJ45 interface and two RS485 serial communication links using female mini DIN connectors.
Field Installation Guidelines
Install the TSXP573634M in the designated Modicon Premium rack position according to the system hardware configuration. Verify that the backplane connector is correctly engaged before applying power.
Maintain proper cabinet wiring practices by separating communication cables from high-current power conductors. Ethernet and RS485 communication wiring should follow industrial grounding and shielding practices to reduce electrical interference.
Confirm that the controller power supply can provide the required 5 V DC backplane current load of 1900 mA. Ensure that operating temperature, humidity, and installation altitude remain within the specified environmental limits.
Use Unity Pro configuration tools to verify processor firmware compatibility, application loading parameters, communication settings, and I/O module addressing before system commissioning.
