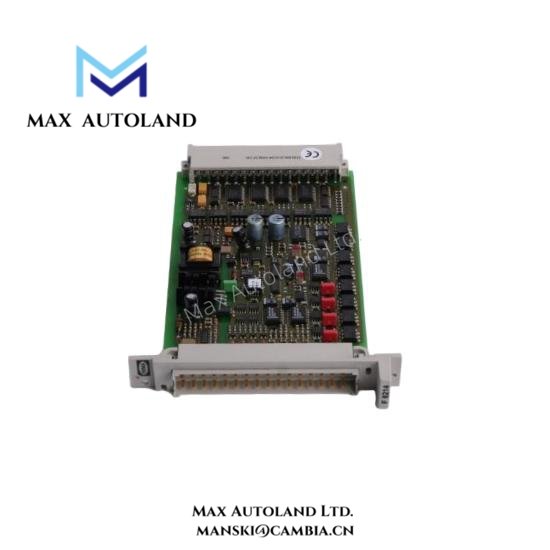

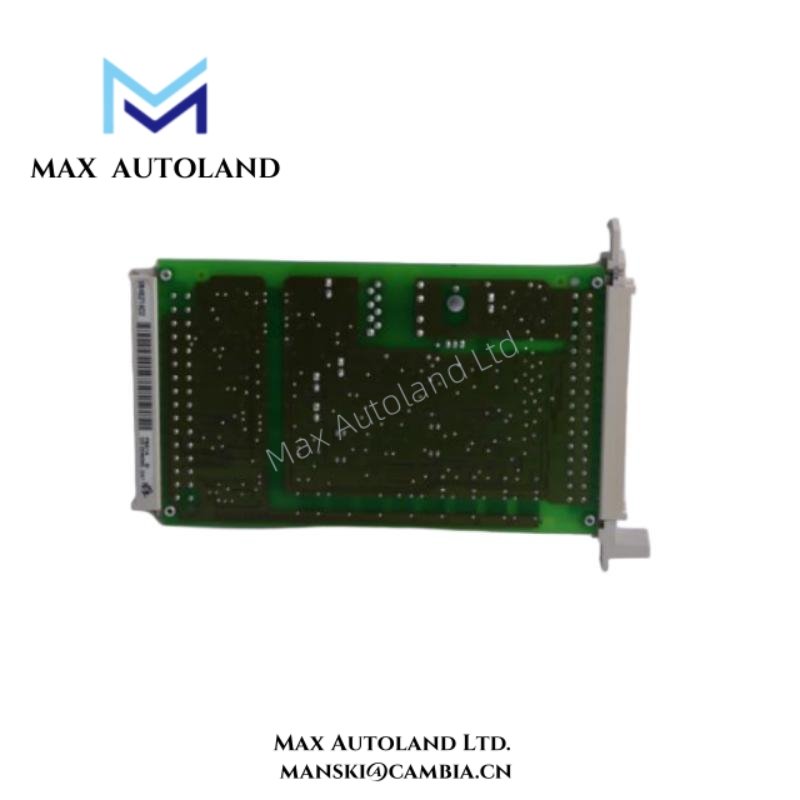

Overview
It supports multiple analog inputs, ensuring accurate measurement of process variables in real time.
Moreover, its modular design allows seamless integration and hot-swappable installation within HIMatrix racks.
Engineers trust this module for reliable data acquisition in critical safety applications across industries
Specification
| Parameter | Specification |
|---|---|
| Model | F6214 |
| Manufacturer | HIMA |
| Product Type | Analog Input Module |
| Number of Channels | 8 standard analog inputs |
| Input Signal Type | 0–20 mA, 4–20 mA, 0–10 V |
| Resolution | 16-bit |
| Supply Voltage | 24 V DC nominal |
| Accuracy | ±0.1% of full scale |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Isolation | Channel-to-channel galvanic isolation |
| Module Dimensions | Standard HIMatrix form factor |
| Connector Type | HIMatrix backplane connection |
| Diagnostics | Channel status LEDs and fault detection |
| Reliability Features | Vibration-resistant, SIL-rated for safety applications |
FAQ
A1: It provides 8 independent analog input channels for current and voltage signals.
Q2: Can this module operate in harsh industrial environments?
A2: Yes, it resists vibration, temperature fluctuations, and electromagnetic interference.
Q3: Does the module support hot-swappable installation?
A3: Yes, the module can be replaced without shutting down the HIMatrix system.
Q4: Which industries commonly use this analog input module?
A4: It is used in oil and gas, chemical processing, power generation, and manufacturing facilities.
