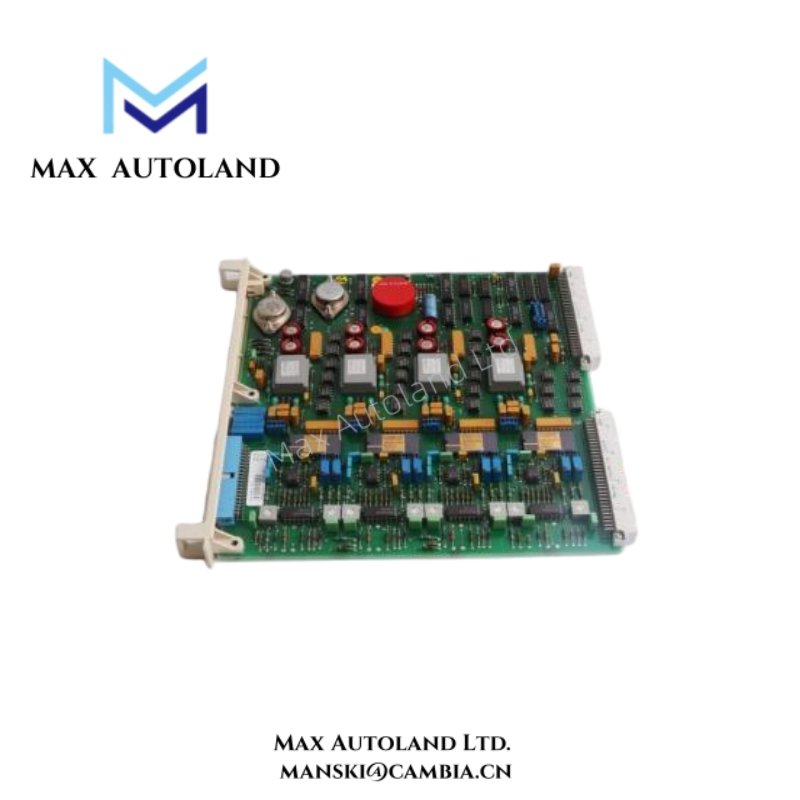

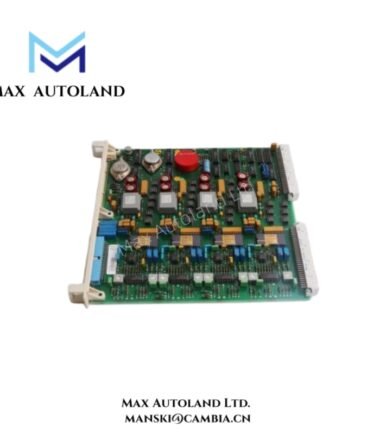

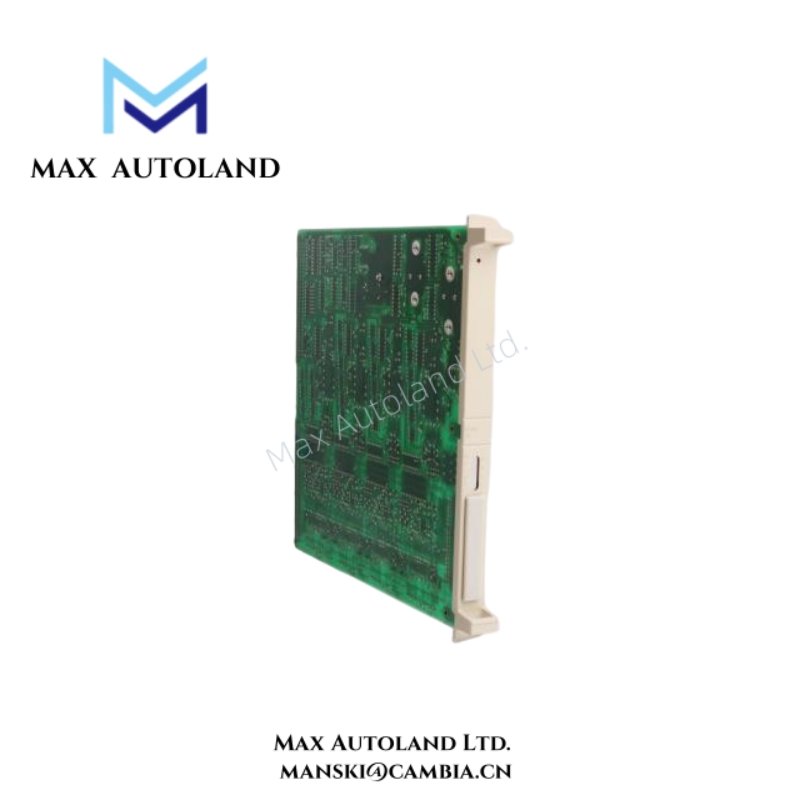

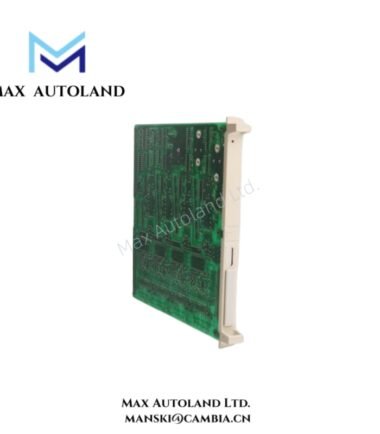

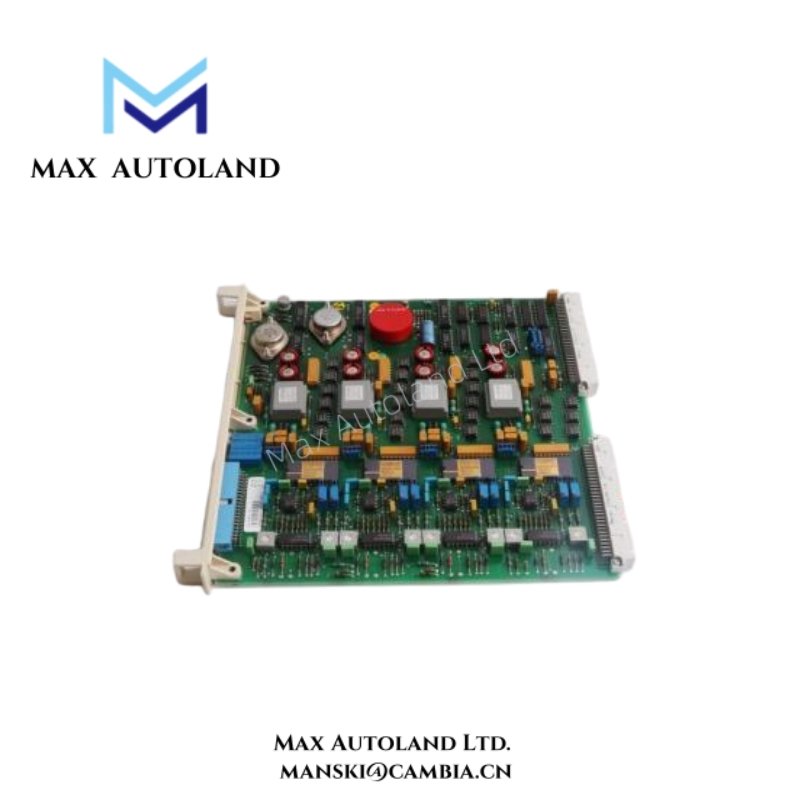

Overview
Specification
| Parameter | Specification |
|---|---|
| Model Number | DSAO110 |
| ABB Part Number | 57120001-AT |
| Module Type | Analog Output Module (4 Channels) |
| Number of Output Channels | 4 analog outputs |
| Output Signal Type | Voltage: 0–10 V; Current: 0–20 mA |
| Output Accuracy | 0.05% |
| Output Resolution | 12-bit D/A conversion |
| Output Isolation | Fully isolated channels per output |
| Max Load Resistance | Voltage mode: ≥2 kΩ; Current mode: ≤500 Ω |
| Response Time | ≤ 10 ms |
| Linearity Error | ±0.05% |
| Temperature Coefficient | ±50 ppm/°C |
| Update Rate | 50 ms |
| Crosstalk | <0.1% |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -20°C to +70°C |
| Relative Humidity | 5–95% non-condensing |
| Power Supply | 24 V DC ±10% |
| Power Consumption | ≤ 5 W |
| Mounting | DIN rail or rack installation |
| Diagnostics | LED indicators per channel |
| Protection Rating | IP20 |
| Electrical Noise Immunity | Complies with industrial EMC standards |
| Weight | 0.595 kg |
| Country of Origin | Sweden |
| Compliance & Standards | CE, IEC 61131, IEC 61000-6-2 (EMC immunity) |
FAQ
A: The module provides 4 analog output channels for accurate process control.
Q: What types of signals can it output?
A: It supports voltage (0–10 V) and current (0–20 mA) signals.
Q: Is the module suitable for harsh industrial environments?
A: Yes, it operates reliably from 0°C to +60°C with 5–95% non-condensing humidity.
Q: Can it be integrated with Advant OCS systems?
A: Yes, it integrates seamlessly with ABB Advant OCS and Master automation networks.
