Overview
Therefore, it enables efficient and deterministic data exchange between controllers and distributed fieldbus networks, improving overall system responsiveness.
Moreover, the CI860 integrates smoothly into existing ABB architectures and maintains configuration consistency throughout long-term system operation.
As a result, engineers choose this module when they require scalable Ethernet-based fieldbus communication in demanding industrial environments.
Specification
| Parameter | Description |
|---|---|
| Manufacturer | ABB |

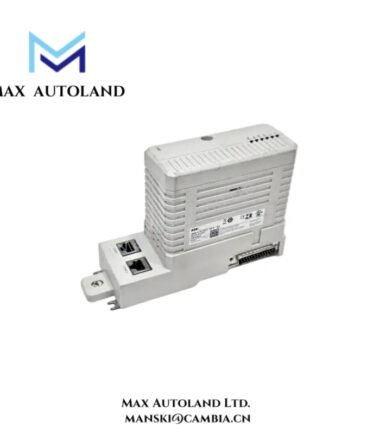

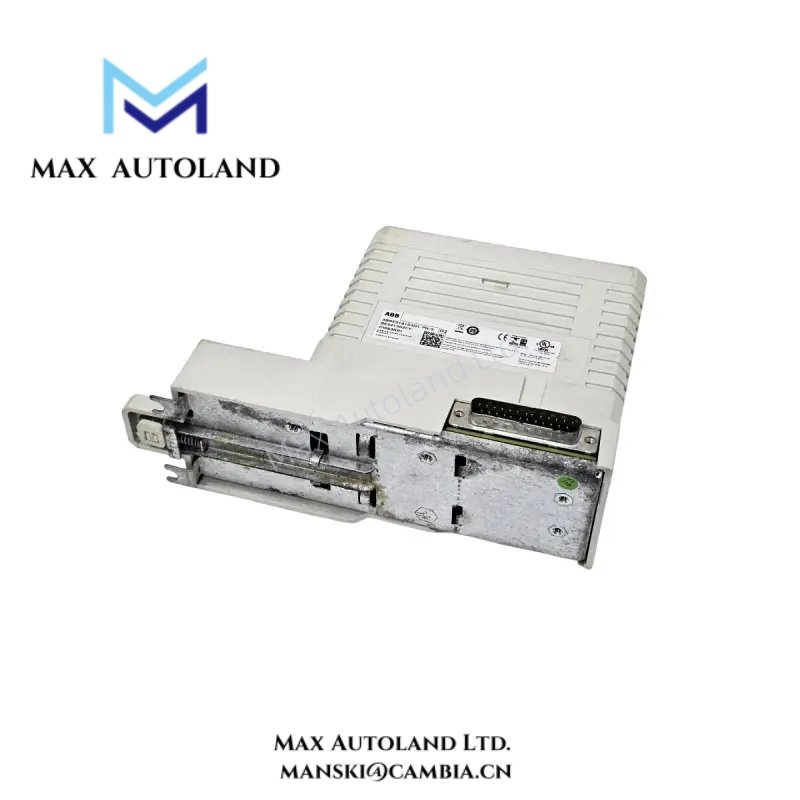

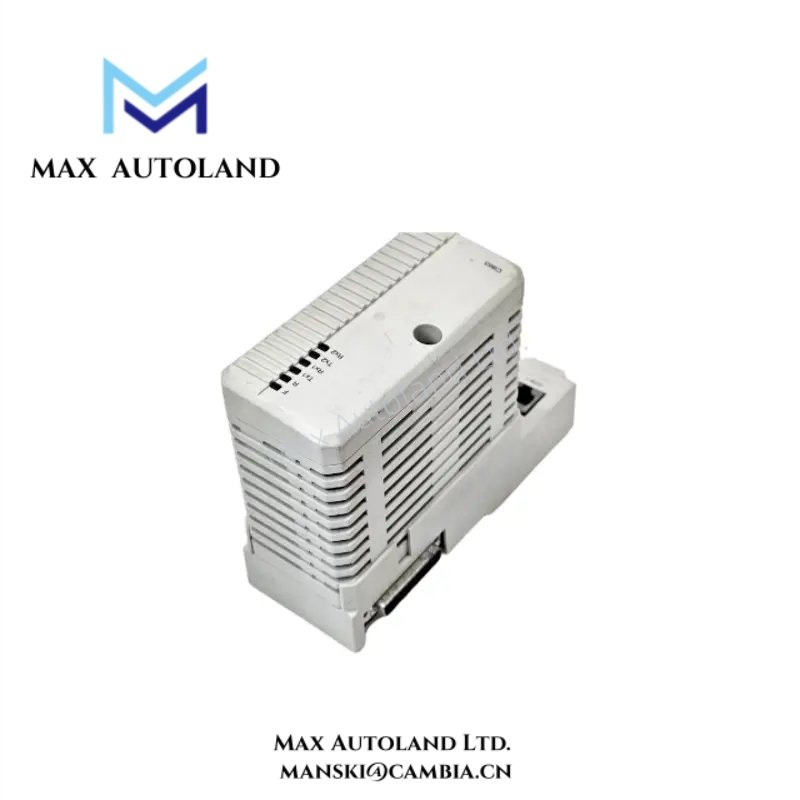

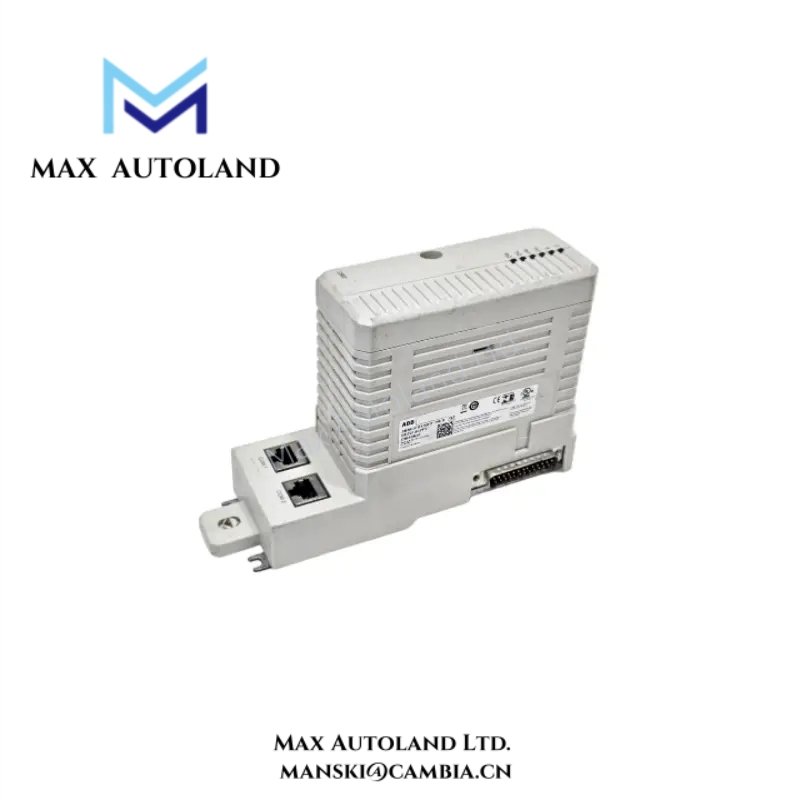

| Model | CI860 / CI860K01 |
| Order Number | 3BSE032444R1 |
| Module Type | Communications Input Module |
| Communication Protocol | FOUNDATION Fieldbus HSE |
| System Compatibility | ABB Advant OCS, ABB 800xA |
| Ethernet Speed | 10 / 100 Mbit/s |
| Interface Type | Industrial Ethernet (RJ-45) |
| Redundancy Support | Yes |
| Hot Swap Capability | Supported |
| Backplane Capacity | Up to 12 modules per system bus |
| Power Supply | Supplied via system backplane |
| Typical Current Consumption | Approx. 100 mA @ 24 V DC |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | –40 °C to +70 °C |
| Relative Humidity | 5% to 95%, non-condensing |
| Protection Rating | IP20 |
| Corrosion Resistance | Industrial grade, suitable for harsh environments |
| Mounting | Standard ABB control system rack |
| Approximate Weight | ~700 g |
FAQ
CI860 provides FOUNDATION Fieldbus HSE communication between ABB controllers and Ethernet-based fieldbus networks.
Q2: Can CI860 be used in redundant system architectures?
Yes, the module supports redundant configurations to improve communication reliability and system availability.
Q3: How is the CI860 powered during operation?
The module receives power directly from the system backplane and does not require an external power supply.
Q4: Is CI860 suitable for large-scale automation systems?
Yes, it supports multiple modules per system bus, making it suitable for scalable and distributed installations.
Q5: Does CI860 support hot swapping?
Yes, CI860 supports hot swap functionality, allowing replacement without shutting down the entire system.
Q6: What industries commonly use the CI860 module?
Typical industries include power generation, oil and gas, chemical processing, and continuous manufacturing.
