Overview
Specification
| Parameter | Specification |
|---|---|

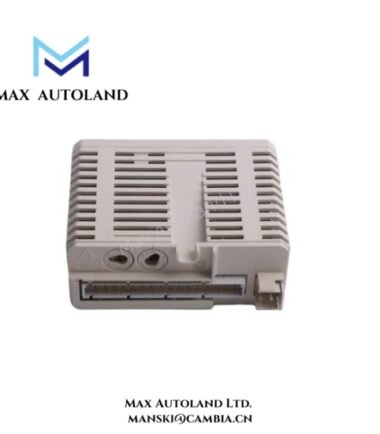

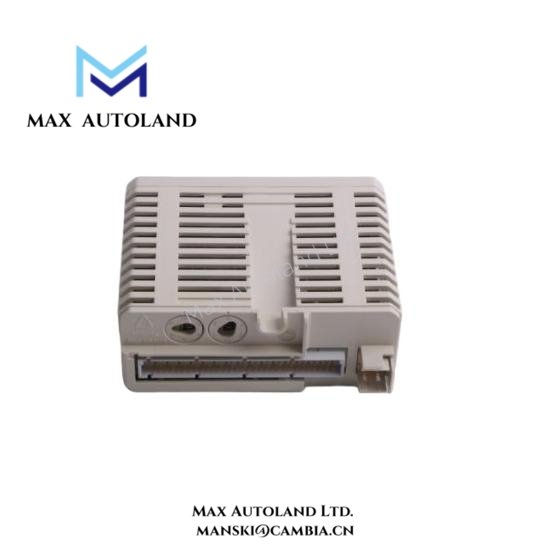

| Model | AI810 (3BSE008516R1) |
| Input Channels | 8 Analog Inputs |
| Signal Types | 0–20 mA, 4–20 mA, 0–10 V, ±10 V |
| Input Impedance | 250 Ω for current, 100 kΩ for voltage |
| Resolution | 16-bit |
| Accuracy | ±0.1% full scale |
| Sampling Rate | 50 ms per channel (typical) |
| Operating Temperature | 0–60 °C |
| Relative Humidity | 5–95%, non-condensing |
| Power Supply | 24 V DC (typical) |
| Diagnostics | Channel status, signal range monitoring, fault detection |
| Mounting | ABB rack compatible (Advant OCS / 800xA) |
| Certification | CE, UL recognized |
FAQ
A1: It supports 0–20 mA, 4–20 mA, 0–10 V, and ±10 V analog signals.
Q2: How many channels does this module provide?
A2: The AI810 includes 8 independent analog input channels for flexible monitoring.
Q3: Can AI810 integrate into both Advant OCS and 800xA systems?
A3: Yes, it works seamlessly with both ABB Advant OCS and 800xA control architectures.
Q4: What level of measurement accuracy does the AI810 provide?
A4: The module provides 16-bit resolution with ±0.1% full-scale accuracy for precise readings.
Q5: Does AI810 provide any diagnostic features?
A5: Yes, it includes real-time channel status monitoring and fault detection capabilities.
Q6: What environmental conditions can AI810 operate under?
A6: It reliably operates from 0–60 °C and 5–95% relative humidity (non-condensing).
