Overview
Specification
| Parameter | Specification |
|---|---|

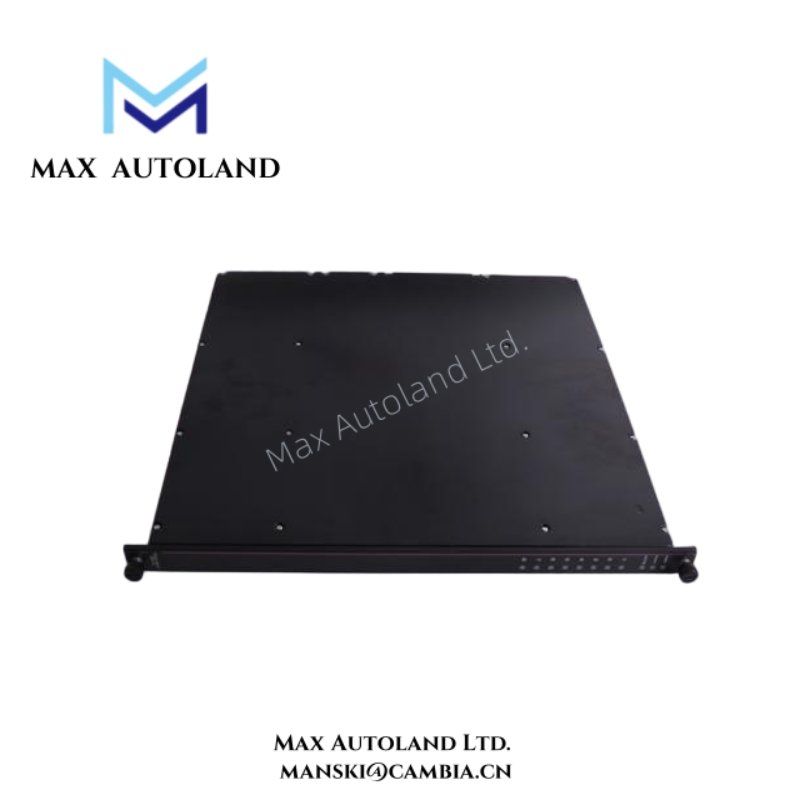

| Model | Triconex 3511 |
| Module Type | Pulse Input Module |
| Input Channels | 16 digital pulse inputs |
| Input Voltage | 24 VDC nominal |
| Input Frequency | 0–100 kHz per channel |
| Redundancy | Triple Modular Redundant (TMR) |
| Bus Interface | High-speed Triconex backplane |
| Data Acquisition | Synchronized with system scan cycle |
| Power Consumption | Typical 5 W, maximum 8 W |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | –40°C to 85°C |
| Relative Humidity | 5–95% RH, non-condensing |
| Status Indicators | Multi-color LEDs for input status and module health |
| Isolation | Galvanic isolation between inputs and module logic |
| Mounting | Triconex standard rack, hot-swappable |
| Dimensions | Height 130 mm × Width 40 mm × Depth 180 mm |
| Weight | ~0.45 kg |
| Safety Certification | IEC 61508 SIL-3 / IEC 61511 compliant |
| EMC Compliance | EN 61000-6-2 / EN 61000-6-4 industrial immunity and emission standards |
| Diagnostics Features | Pulse error detection, channel fault logging, LED alerts |
FAQ
A1: The module supports high-speed pulse signals, enabling accurate acquisition for safety-critical systems.Q2: Can the 3511 integrate with existing Triconex I/O systems?
A2: Yes, it integrates seamlessly with Triconex I/O modules, providing synchronized data collection across the system.
Q3: What is the maximum pulse frequency the module can handle?
A3: The 3511 reliably processes pulse signals up to its rated maximum frequency, ensuring rapid detection without data loss.
Q4: Is the module suitable for harsh industrial environments?
A4: Absolutely. Its rugged design maintains consistent performance even under high temperature, vibration, or electrical noise conditions.
Q5: How does the module contribute to system safety?
A5: By providing accurate and real-time pulse input, it ensures timely detection of process events, supporting critical safety functions.
