Overview
Specification
| Parameter | Specification |
|---|---|

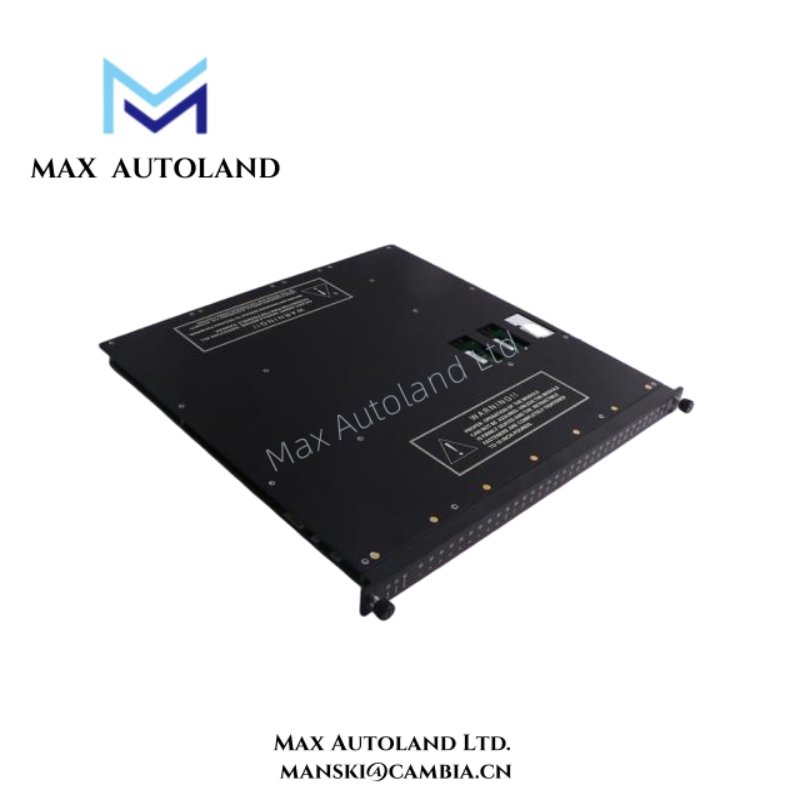

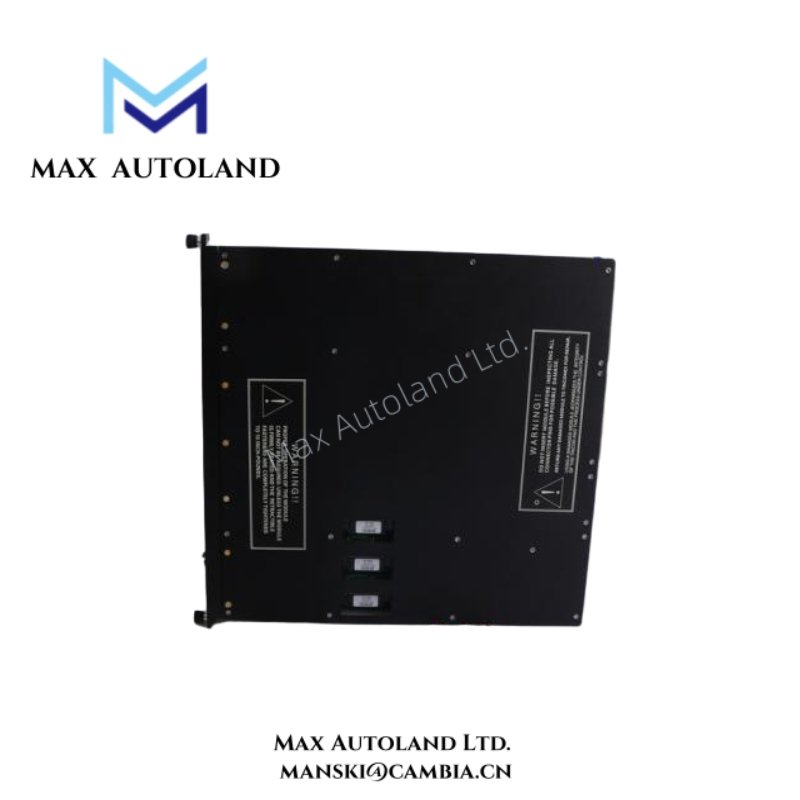

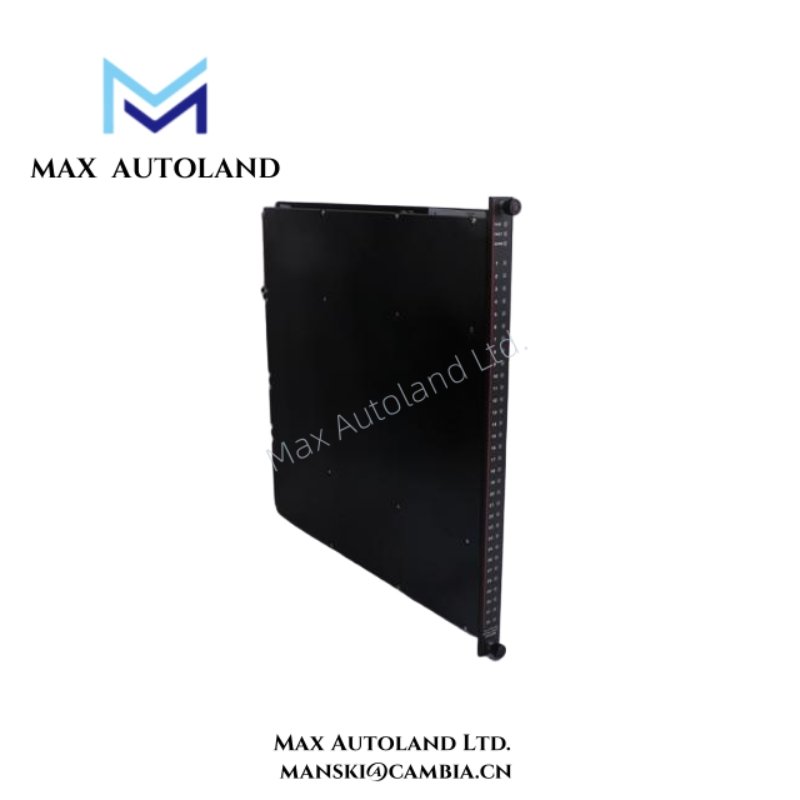

| Product Model | Triconex 3503E |
| Manufacturer | Triconex (Schneider Electric) |
| Module Type | TMR Digital Input Module |
| Safety Architecture | Triple Modular Redundancy (TMR) structural design |
| Number of Input Channels | 32 isolated digital inputs, commoned in groups of 8 |
| Input Voltage (Nominal) | 24 VAC or 24 VDC |
| Input Voltage Range | 20–42.5 VAC/VDC |
| Input Frequency Range | DC or 47–63 Hz |
| Switching Threshold Off→On | 15 VAC/VDC typical, 18 VAC/VDC worst case |
| Switching Threshold On→Off | 8 VAC/VDC typical, 6 VAC/VDC worst case |
| Input Impedance | ≥1.25 kΩ nominal |
| Response Time | Off→On < 8 ms / On→Off < 15 ms |
| Typical Hysteresis | ~4 VAC/VDC |
| Isolation | Opto‑isolated inputs, ≥1000 VAC minimum / ≥1500 VDC minimum between points and logic |
| Point Grouping | Inputs commoned in groups of 8 |
| Built‑in Diagnostics | Per‑point fault detection and self‑test monitoring |
| Status Indicators | Individual channel LEDs and module PASS/FAULT/ACTIVE indicators |
| Redundancy Voting | 2‑out‑of‑3 voting logic for fault tolerance |
| Operating Temperature Range | –40 °C to +70 °C |
| Storage Temperature Range | –45 °C to +85 °C |
| Relative Humidity | 0–95% non‑condensing |
| Vibration Resistance | ~0.05 g RMS random 20–500 Hz |
| Shock Resistance | ~5 g half‑sine pulse 11 ms |
| Power Consumption | < 10 W logic power; ~0.5 W per ON point typical |
| Backplane Interface | Triconex proprietary TMR backplane connection |
| Mounting | Standard Triconex rack, hot‑swappable |
| Dimensions | ~130 mm × 100 mm × 30–50 mm |
| Weight | ~1.2–1.35 kg depending on variant |
| Safety & Compliance | IEC 61508 SIL‑3 certified, compatible with Tricon SIS architectures |
| EMC Compliance | Meets IEC 61000‑4 series industrial EMI standards |
FAQ
A1: It supports 16 digital inputs, allowing efficient signal acquisition for process monitoring.Q2: Can the 3503E module handle harsh industrial conditions?
A2: Yes, it operates reliably under high vibration, temperature extremes, and electrical noise.
Q3: What input voltage range does the module accept?
A3: The module accepts 24 VDC ±10%, ensuring compatibility with standard industrial signals.
Q4: How does the 3503E contribute to system safety?
A4: It provides fast and accurate digital input detection for safety-critical applications, supporting SIL 3 compliance.
Q5: Is it compatible with existing Triconex I/O systems?
A5: Yes, it integrates seamlessly, enabling synchronized data collection and easy system expansion.
Q6: What maintenance is required for the 3503E module?
A6: Minimal maintenance is required; routine inspection and system diagnostics help maintain optimal performance.
