Overview

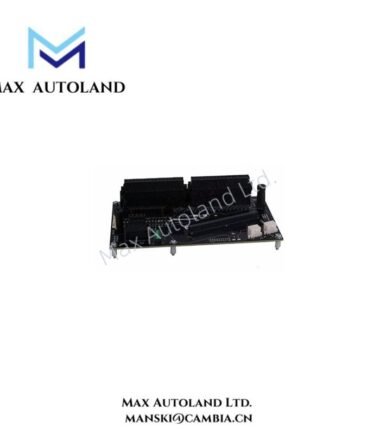

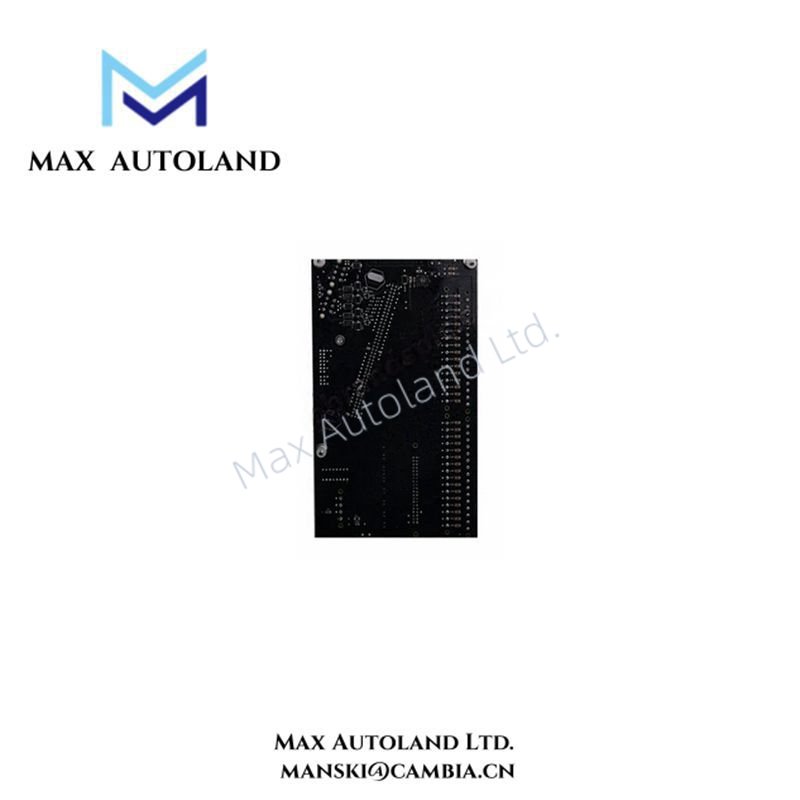

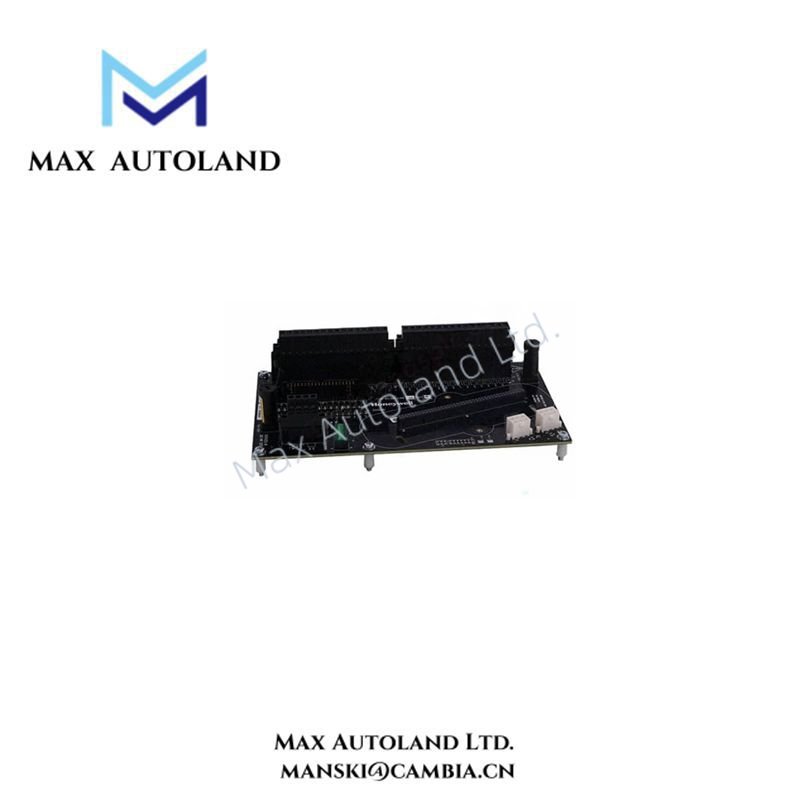

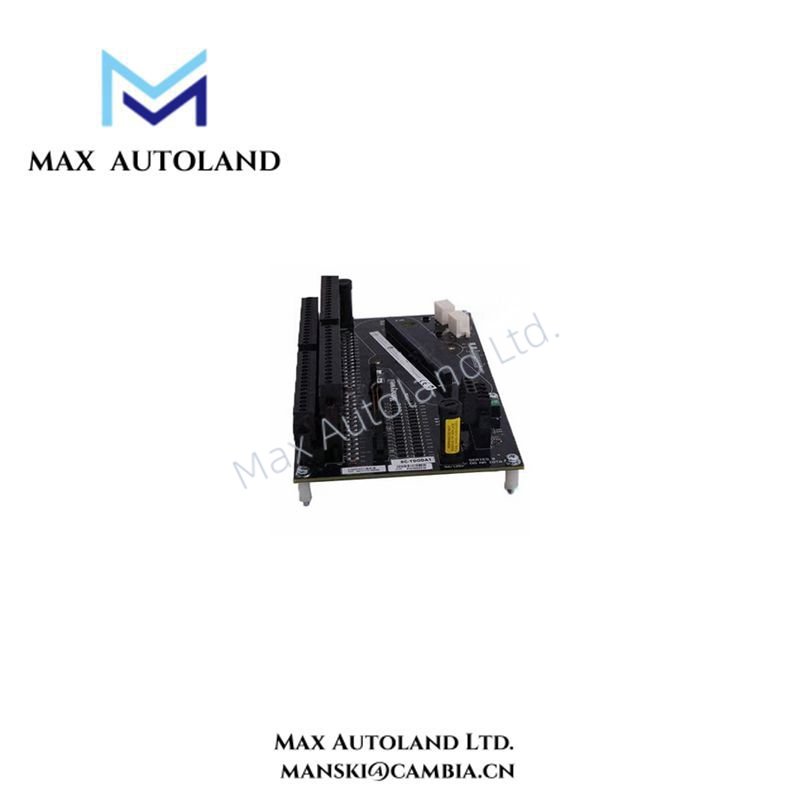

The Honeywell 8C-TDOLA1 is a coated Digital Output Module designed for the Experion C300 Series 8 system. It provides 32 channels with 24VDC input, offering reliable signal processing and integration within distributed control systems (DCS).
Specification
| Attribute | Specification |
|---|
| Model | 8C-TDOLA1 |
| Part Number | 51307141-175 |
| Input Voltage | 24 VDC |
| Input Channels | 32 |
| Channels 1-16 | Pulse accumulation & frequency measurement |
| Channels 17-32 | Standard digital inputs |
| Input Type | Isolated, non-polarized digital inputs |
| Input Impedance | 1.6 kΩ |
| Signal Compatibility | TTL/CMOS |
| Resolution | 12-bit |
| Accuracy | ±0.1% FS |
| Conversion Time | 1 ms |
| Operating Temperature | –40°C to +70°C |
| Storage Temperature | –40°C to +85°C |
| Humidity | 0–95% RH, non-condensing |
| Dimensions (H × W × D) | 3 cm × 31.3 cm × 27.8 cm |
| Weight | 0.56 kg |
