140XTS00206 Modicon Quantum Schneider Electric Terminal Strip

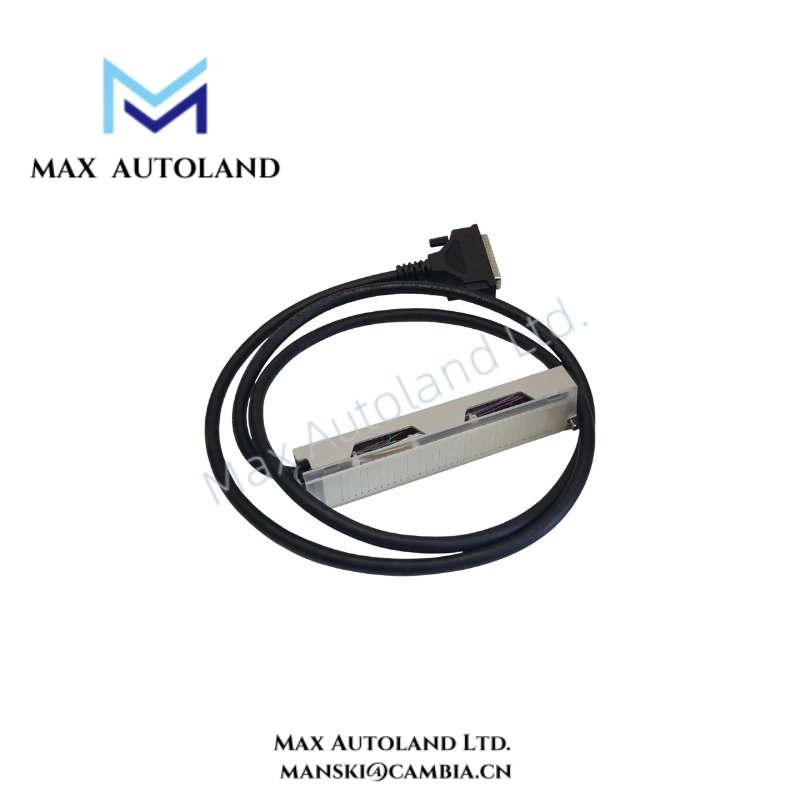

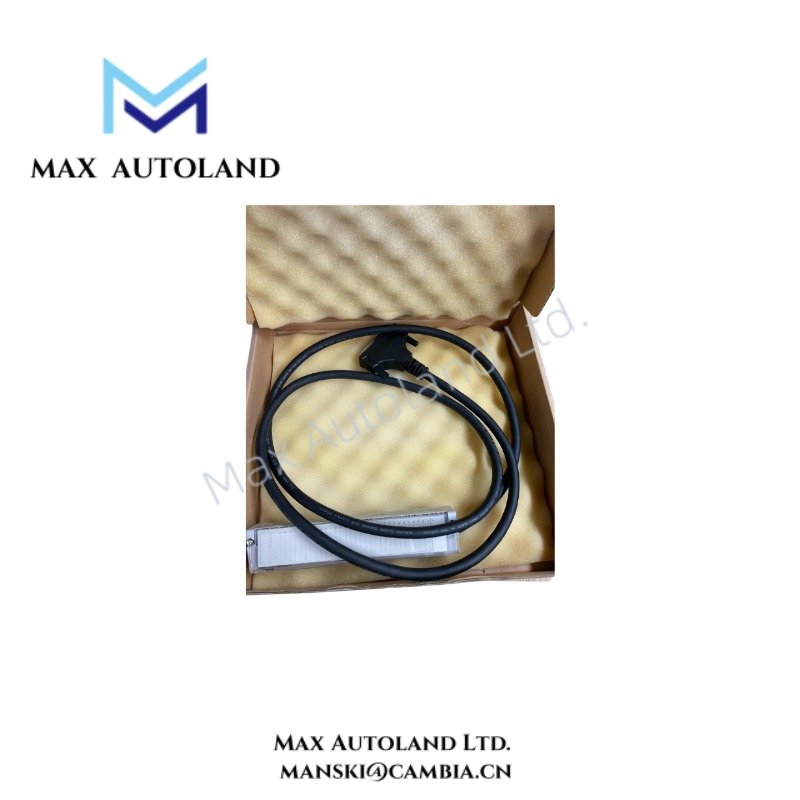

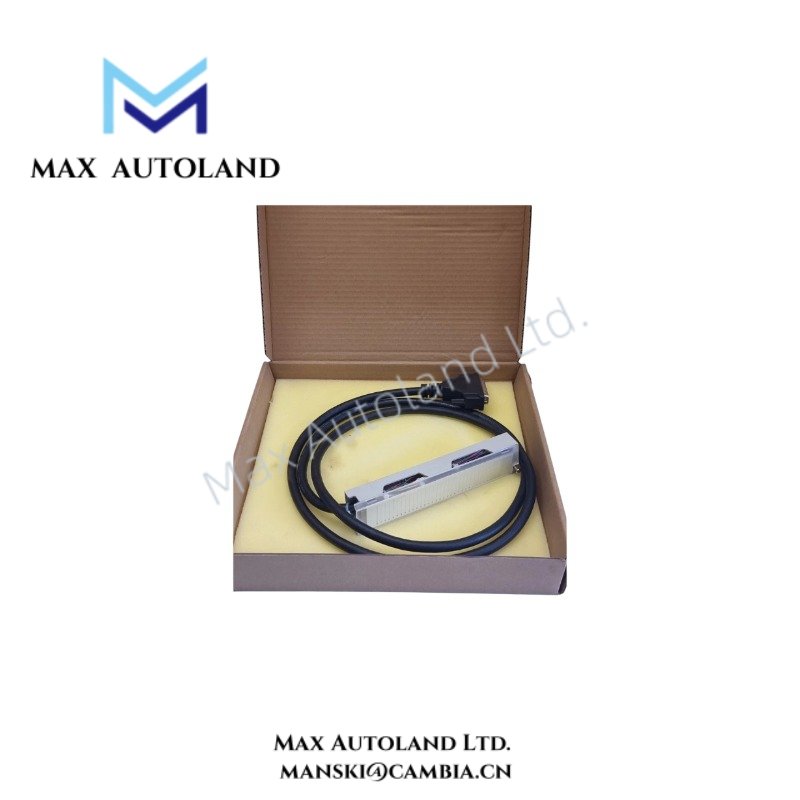

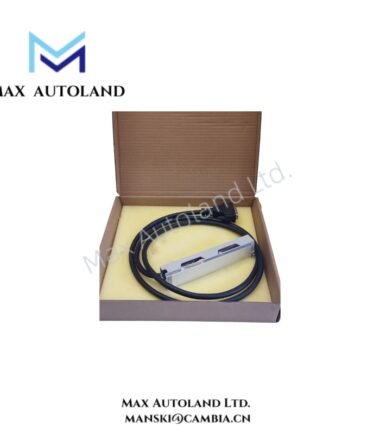

Configured for terminated I/O cable connection in the Modicon Quantum automation platform, the Schneider Electric 140XTS00206 (140XTS00206 Terminal Strip) provides direct electrical execution. The assembly integrates a terminated 1.8 m cable with a Quantum I/O connector and a 50-pin SUB-D connector for field wiring between I/O modules and external equipment.

Suffix Breakdown & Model Matrix

The supplied documentation identifies 140XTS00206 as a single catalog number. No official suffix or option matrix is specified; therefore, no model breakdown is provided.

Hardware Specifications

Firmware Flash Compatibility and Quantum I/O Connectivity

The 140XTS00206 is a passive interconnection component intended for physical signal routing within the Modicon Quantum platform. It contains no programmable firmware and therefore does not require firmware flash updates or revision management. System compatibility is determined by the mating Quantum I/O interface and the corresponding 50-pin SUB-D field connector. Proper connector engagement and cable routing should be verified during installation to maintain signal continuity.

Frequently Asked Questions

Q: Does the 140XTS00206 support hot replacement while the system is energized?
A: As a passive terminated cable assembly, replacing or disconnecting the unit while field circuits are energized may interrupt I/O signals. Follow the maintenance procedure specified for the connected Quantum I/O module before replacement.

Q: Does this terminal strip consume power from the PLC backplane?
A: No. The 140XTS00206 is a passive wiring assembly and does not have a specified power consumption or backplane current requirement.

Q: Can the cable length be modified without affecting operation?
A: The supplied assembly is manufactured with a fixed 1.8 m terminated cable. Any field modifications should maintain conductor integrity, shielding continuity where applicable, and correct connector pin assignments.

Field Installation Guidelines

• Verify that the Quantum I/O connector and the 50-pin SUB-D connector are fully seated before system commissioning.
• Route the cable separately from high-voltage power conductors to minimize electrical interference.
• Maintain the factory cable bend radius and avoid excessive mechanical tension during installation.
• Secure the cable using appropriate cable clamps or ties to prevent connector movement caused by vibration.
• Inspect connector contacts before installation and ensure that no pins are bent or contaminated.
• Confirm that installation conditions remain within the specified operating temperature, humidity, and altitude limits.
