Overview

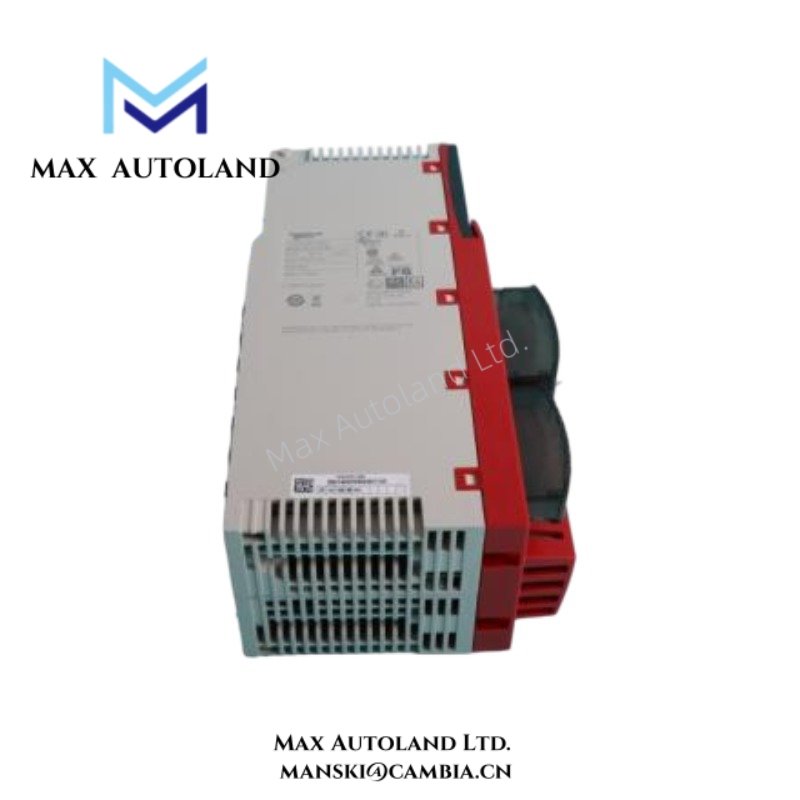

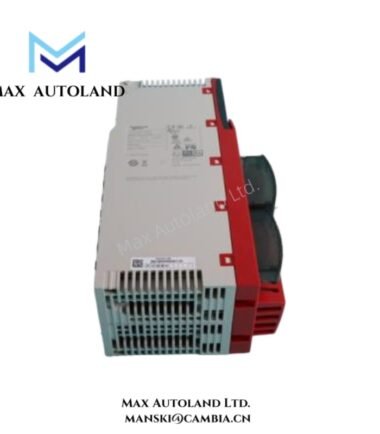

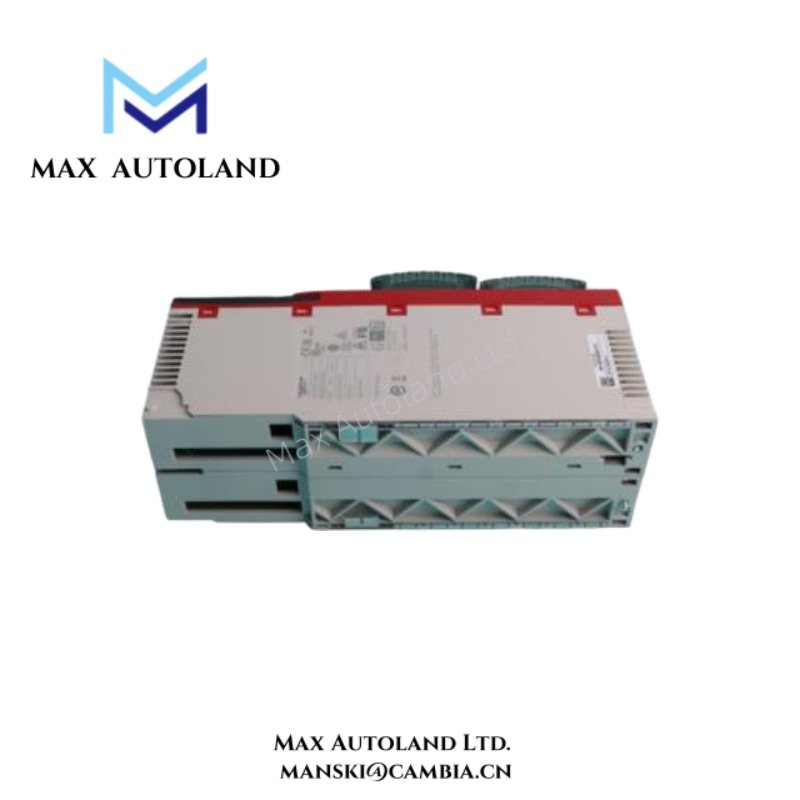

The Schneider 140CPU67160S is a high-performance Unity safety processor specifically designed for the Modicon Quantum automation platform. Moreover, it provides robust and reliable safety logic processing while handling complex control applications efficiently. In addition, this processor maintains system integrity by offering integrated diagnostics, ensuring fast communication, and supporting modular scalability for demanding industrial environments.
Specification
| Category | Parameter | Specification |
|---|---|---|
| Processor | Type | Unity Safety Processor for Modicon Quantum |
| Architecture | 32-bit high-performance CPU | |
| Safety certification | SIL3 (IEC 61508), FM, CSA, UL, CE | |
| Cycle time | Deterministic, optimized for safety applications | |
| Number of safety tasks | Multiple concurrent safety tasks supported | |
| Integrated diagnostics | Self-test, error detection, and fault logging | |
| Memory | Safety program memory | 2 MB |
| Standard program/data memory | 1 MB | |
| Communication | Protocols | Modbus, CANopen, optional Ethernet, optional Profibus |
| Status indicators | Multi-color LEDs for CPU, safety, and communication activity | |
| I/O Support | Compatibility | Digital input/output, analogue input/output, mixed modules |
| Expansion | Supports multiple safety and standard I/O modules | |
| Power & Protection | Supply voltage | 24 V DC ±10% |
| Power consumption | ≤12 W typical | |
| Protection | Reverse polarity, overcurrent/short-circuit protection | |
| Isolation | Galvanic isolation | Full isolation between CPU, power, and I/O modules |
| Mechanical | Dimensions (W × H × D) | 142 × 130 × 52 mm |
| Weight | 0.9 kg | |
| Environment | Operating temperature | 0–60 °C |
| Storage temperature | -40–85 °C | |
| Relative humidity | 5–95 % non-condensing | |
| Operating altitude | ≤5000 m | |
| EMC & Reliability | Shock & vibration | Compliant with IEC 61131-2 |
| Electromagnetic compatibility | IEC 61000-6-2, IEC 61000-6-4 | |
| Diagnostics | Integrated self-test, error detection, and fault logging | |
| Sustainability | End-of-life instructions | Available in Schneider Electric environmental profile |
FAQ
Q1: Is this processor new and original?
A1: Yes, the 140CPU67160S is fully new, original, and factory-certified by Schneider Electric.
Q2: How quickly can you ship this module?
A2: We ship within 3 days to 2 weeks depending on order size. Common logistics include DHL and FedEx.
Q3: Can I return it if there’s a quality problem?
A3: Returns are supported within 30 days for manufacturing defects or quality issues.
Q4: What kind of safety applications can this processor handle?
A4: It supports safety control up to SIL3, including emergency stop, safety interlocks, and safety monitoring functions.
Q5: What is the power requirement for this processor?
A5: The module operates on 24 V DC with power dissipation up to 12 W.
