Overview

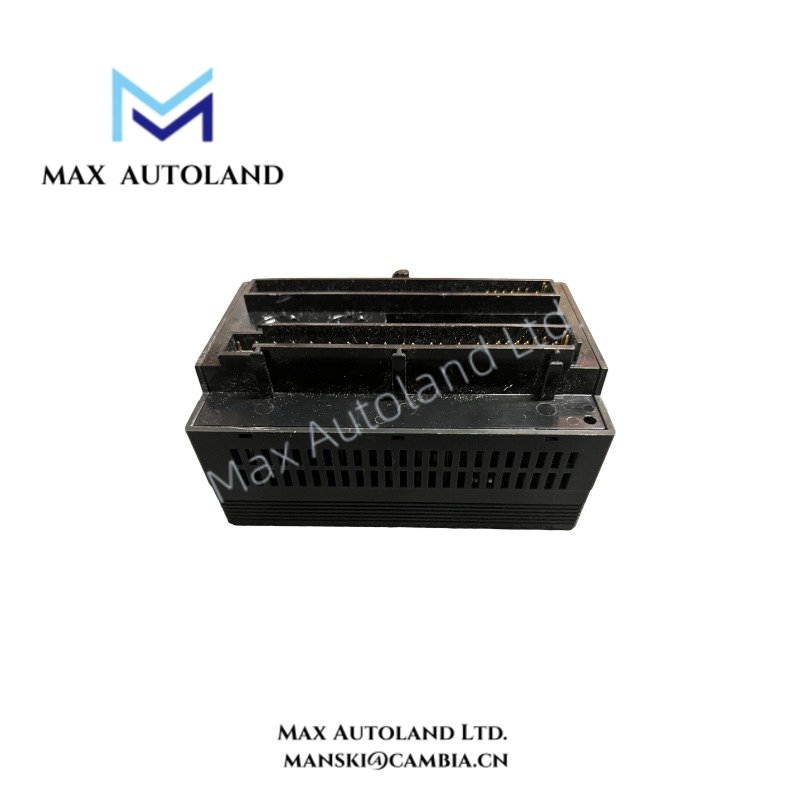

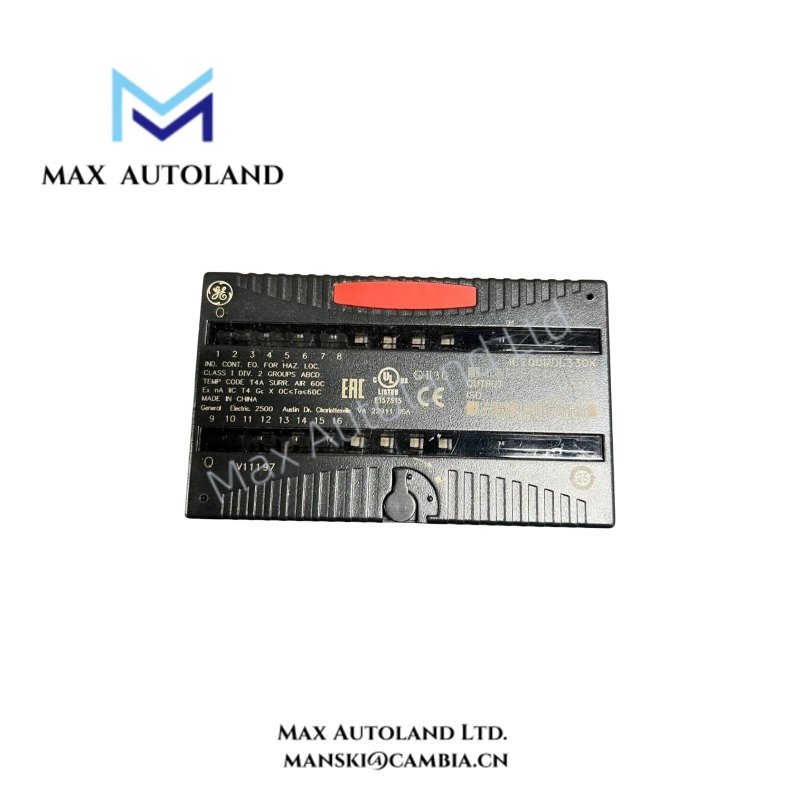

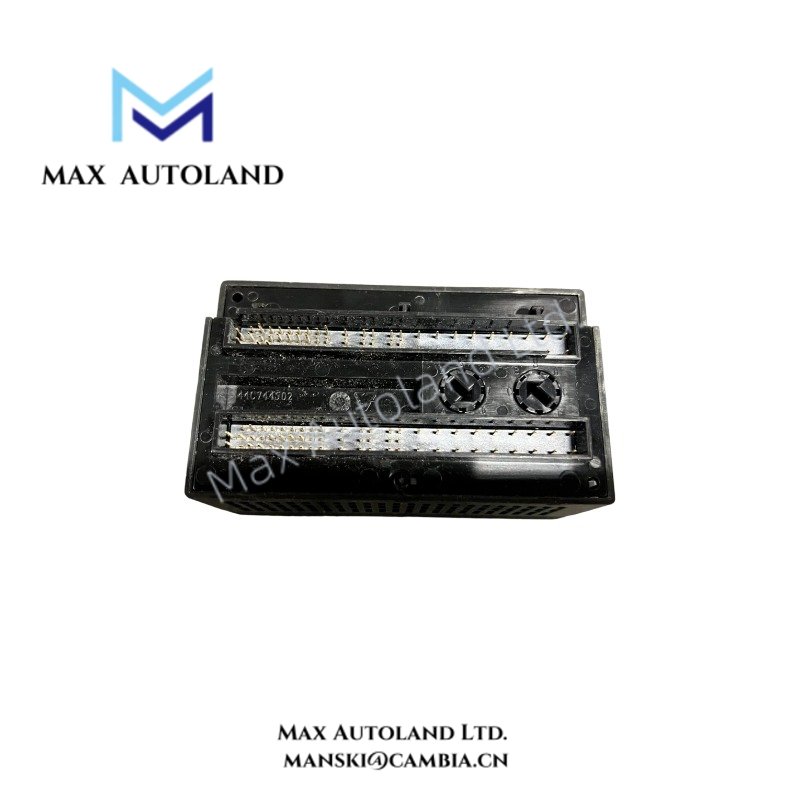

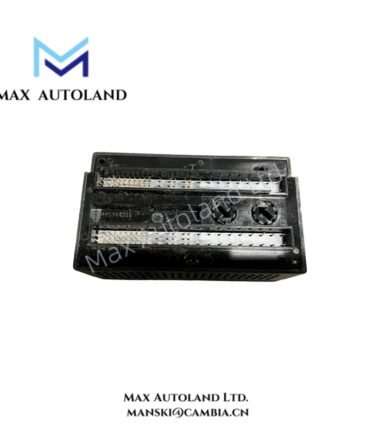

Configured for discrete AC output switching in VersaMax I/O systems, the General Electric IC200MDL330 (IC200MDL330 Discrete Output Module) provides direct electrical execution through 16 isolated output points. The module switches externally supplied 85 to 132 VAC circuits and supports up to 0.5 A per output point. It interfaces with the VersaMax backplane through the associated I/O carrier and draws operating current from the BIU power supply.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC200MDL330 |
| Brand | General Electric |
| Series | VersaMax |
| Product Type | Discrete Output Module |
| Output Type | Isolated AC discrete outputs |
| Number of Outputs | 16 |
| Output Voltage | 85 to 132 VAC |
| Frequency | 47 to 63 Hz |
| Maximum Output Current | 0.5 A per point |
| Output Voltage Drop | 2.0 V maximum |
| Output Leakage Current | Less than 2 mA at 132 VAC |
| External Power Supply | 85 to 132 VAC |
| Current Drawn from BIU Power Supply | 140 mA maximum |
| Origin | USA |
| Weight | 0.15 kg |
| Dimensions | 11 x 5.8 x 6.6 cm |
| Operating Temp | Not specified |
| Power Consumption | 140 mA maximum from BIU power supply |
VersaMax I/O Density and Backplane Interface
The IC200MDL330 supports I/O density scaling by providing 16 discrete AC output channels within the VersaMax distributed I/O architecture. Each output point operates with isolation, which separates individual output circuits from the common module interface.
The module receives control data through the VersaMax backplane interface. The BIU supplies up to 140 mA for module operation, while an external 85 to 132 VAC supply provides field-side output power. Therefore, installation must account for both backplane power capacity and external AC circuit requirements.
Frequently Asked Questions
Q: How many output points does the IC200MDL330 provide?
A: The module provides 16 discrete isolated output points.
Q: What external voltage range does the module require for output operation?
A: The output circuits operate with an external supply ranging from 85 to 132 VAC at 47 to 63 Hz.
Q: How much current does the module draw from the BIU power supply?
A: The IC200MDL330 draws a maximum of 140 mA from the BIU power supply.
Field Installation Guidelines
Install the IC200MDL330 in the correct VersaMax I/O carrier position and verify proper engagement with the backplane connector before applying power.
Connect the external AC field supply according to the system wiring documentation. Keep AC field wiring separated from low-level signal and communication wiring where practical to reduce electrical interference.
Verify the load current for each output circuit before energizing the system. Each output point supports a maximum current of 0.5 A.
Use properly rated wiring and protective devices for the applied AC voltage and connected loads. Disconnect system power before installing, removing, or rewiring the module.
Inspect terminal connections for secure mechanical contact and confirm that the BIU power budget supports the 140 mA maximum module current requirement.
