Overview

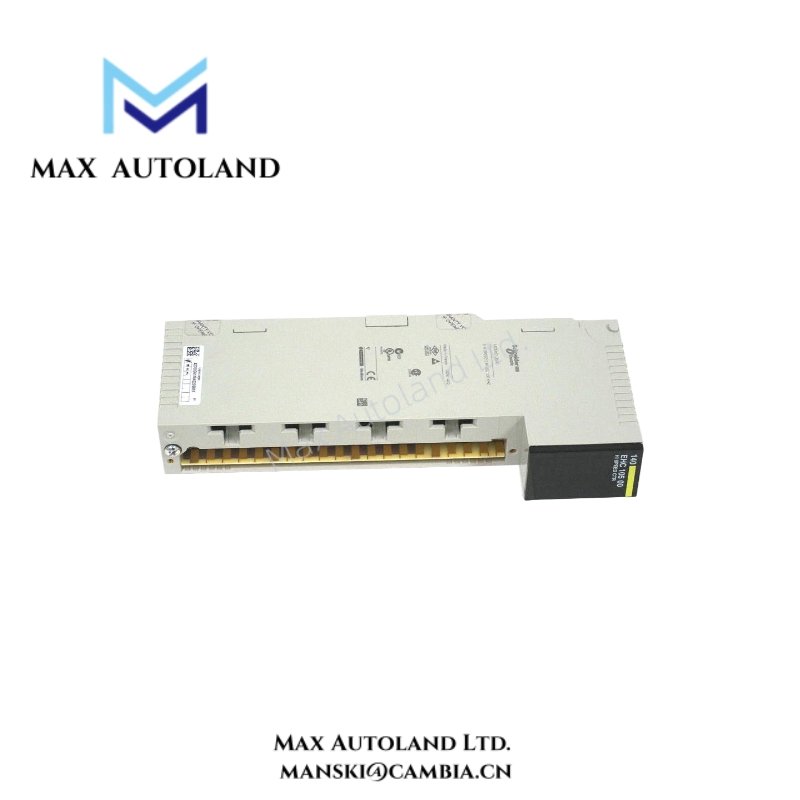

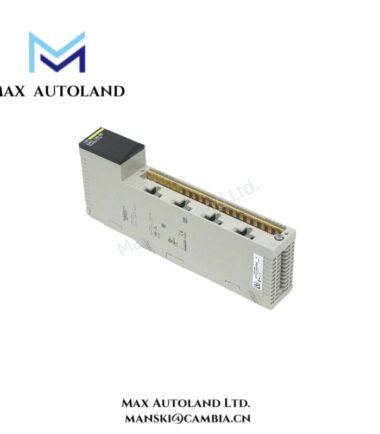

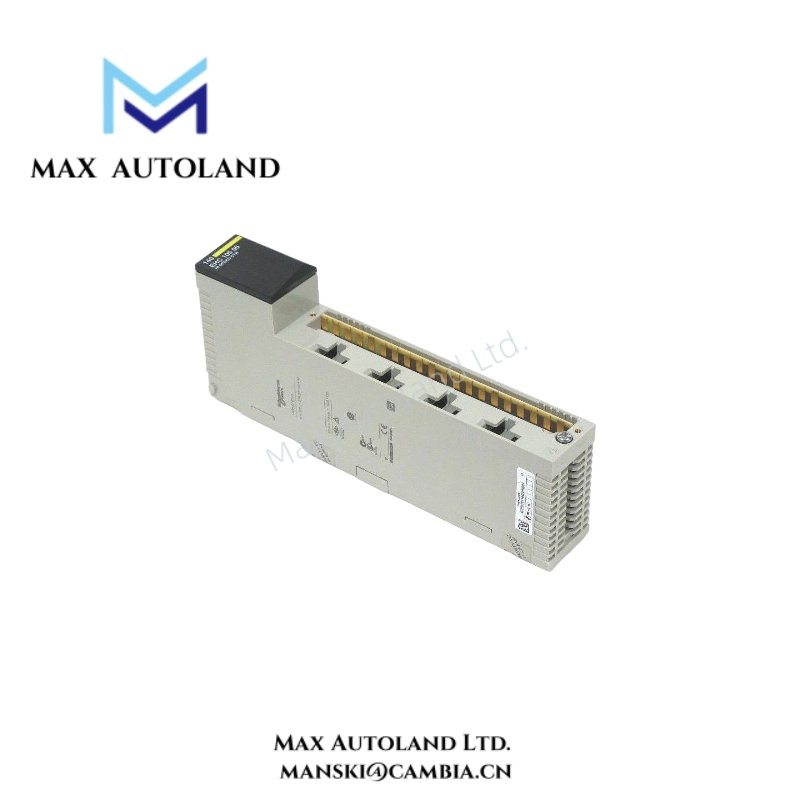

In addition, engineers choose the 140EHC10500 because it delivers fast response times and maintains stable performance even under dynamic operating conditions. Its modular design facilitates seamless integration into Modicon Quantum PLC racks, and the diagnostic LEDs clearly indicate system status for rapid troubleshooting. Moreover, strong signal isolation and excellent noise immunity allow this module to maintain consistent operation, even within electrically harsh industrial environments.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Range of Product | Modicon Quantum |
| Model | 140EHC10500 |
| Module Type | High-speed counter module |
| Number of Channels | 5 |
| Number of Inputs | 8 |
| Addressing Requirement | 12 input words, 12 output words |
| Data Format | 32-bit (2147483647 dec), 16-bit (65535 dec) |
| Counting Input Voltage | Max 30 V DC |
| Counting Input Current | 7 mA |
| Counting Input Type | Discrete incremental counter |
| Counting Frequency | 100,000 Hz |
| Duty Cycle | 1/1 counter input |
| Discrete Input Current | 5 mA |
| Operating Threshold (ON) | 15–30 V single-ended mode (24 V REF DC) |
| Operating Threshold (OFF) | 3–5 V single-ended mode (24 V REF DC) |
| Discrete Output Number | 8 |
| Discrete Output Type | Field Effect Transistor (FET) |
| Discrete Output Voltage (OFF) | 0 V DC |
| Discrete Output Voltage (ON) | 20–30 V DC |
| Load Current | 0.21 A |
| Leakage Current (OFF) | ≤ 0.1 mA |
| Voltage Drop (ON) | 1.25 V |
| Isolation (Channels vs Bus) | 500 Vrms for 60 s |
| Fault Type | Loss of output field power |
| Output Short-Circuit Protection | Internal |
| Power Dissipation | ≥ 6 W |
| Bus Current Requirement | 250 mA |
| External Power Requirement | 19.2–30 V |
| Rack Type | Local, Distributed, Remote |
| Local Signalling | 5 LEDs for channel status |
| Marking | CE |
| Current Consumption | ≤ 1140 mA (24 V DC external power supply) |
| Module Format | Standard |
FAQ
Q1: Is the 140EHC10500 an original Schneider Electric product?
Yes, all our 140EHC10500 modules are 100% brand-new and factory-sealed genuine Schneider Electric parts.
Q2: How long does shipping take?
We ship within 3 to 14 days, depending on order quantity and logistics. We use DHL, FedEx, and UPS for fast global delivery.
Q3: Does the 140EHC10500 support incremental encoder input?
Yes, it supports incremental encoder signals and can be configured for various counter modes.
Q4: What if the module fails after delivery?
We offer a 30-day return or replacement policy for any verified quality issues.
Q5: Can it be used with older Modicon Quantum racks?
Yes, the 140EHC10500 maintains backward compatibility with existing Modicon Quantum rack systems.
