Overview

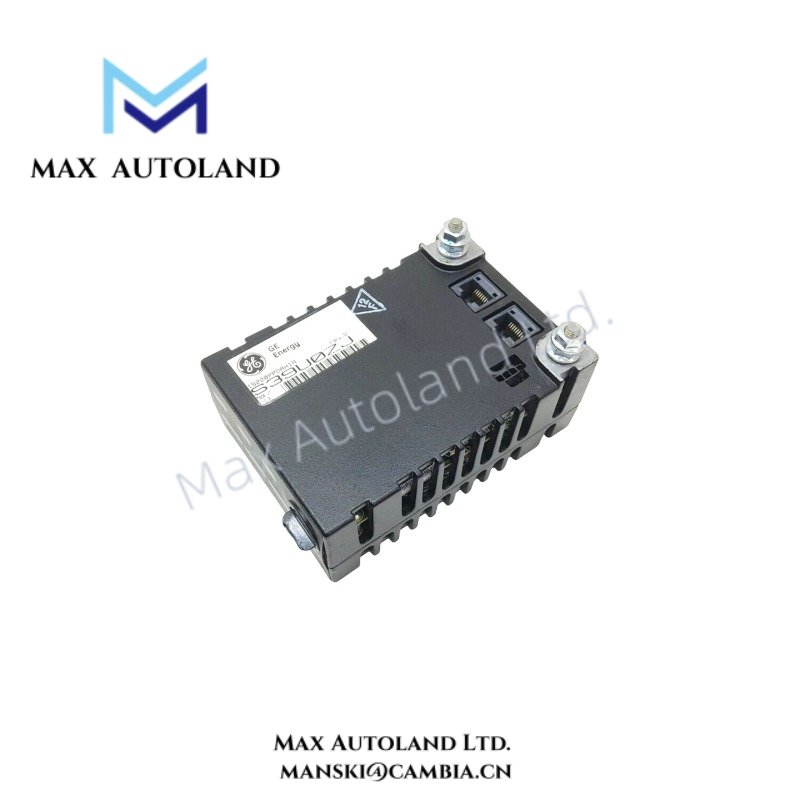

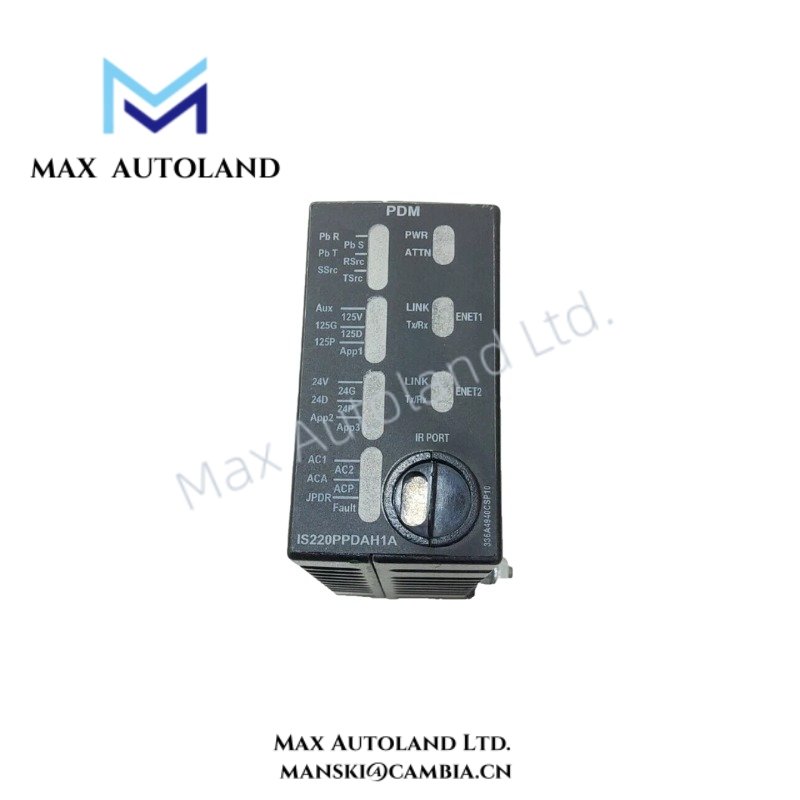

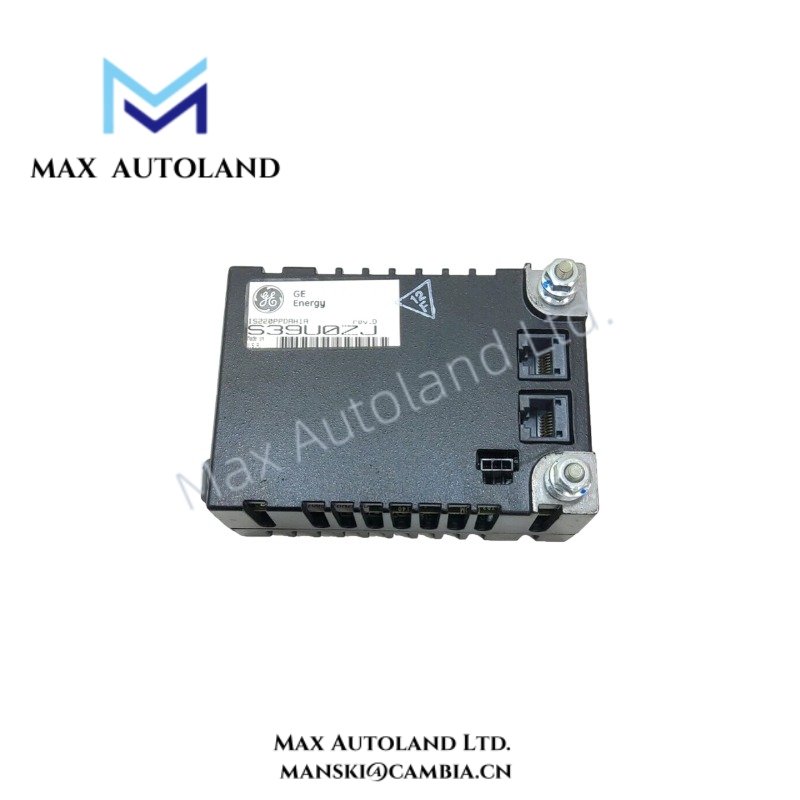

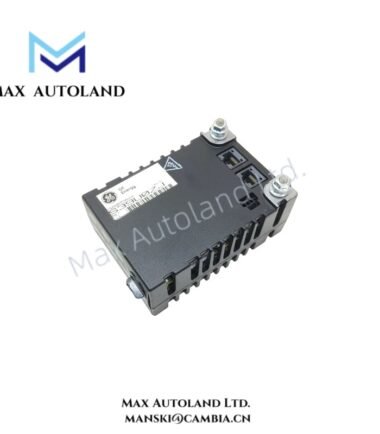

The GE IS220PPDAH1A, also cataloged as the IS220PPDAH1A Feedback I/O Pack, operates as a dedicated hardware component for power distribution feedback acquisition within the GE Mark VIe Turbine Control System.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS220PPDAH1A |
| Brand | General Electric (GE) |
| Product Type | Feedback I/O Pack |
| System Platform | GE Mark VIe Turbine Control System |
| Functional Description | Power Distribution System Feedback I/O Pack, PDM Diagnostics Type |
| Origin | USA |
| Weight | 0.38 kg |
| Dimensions | 6 x 12.8 x 8.2 cm |
| Operating Temp | -30 to 65 deg C ambient temperature |
| Power Consumption | 24 VDC power supply |
| Input Voltage Range | 0-600 V AC/DC |
| Current Measurement Range | 0-100 A |
| Frequency Measurement | 45-65 Hz |
| Digital Inputs | 4-32 channels |
| Communication Protocols | Modbus RTU/TCP |
| Tariff Code | 8537101190 |
GE Industrial Control Network Integration
The IS220PPDAH1A integrates into the GE Mark VIe control architecture through distributed I/O communication. It acquires power distribution feedback signals and transfers diagnostic information through configured communication channels.
Furthermore, the module supports industrial control data exchange through Modbus RTU/TCP interfaces. The design allows integration with GE control cabinets requiring voltage, current, frequency, and digital status monitoring.
The module follows GE industrial control hardware practices, including I/O density scaling and firmware flash compatibility within supported Mark VIe configurations. Therefore, system engineers can maintain consistent module management across distributed turbine control installations.
Frequently Asked Questions
Q: What electrical signals can the IS220PPDAH1A measure?
A: The IS220PPDAH1A measures AC/DC voltage inputs from 0-600 V, current inputs up to 100 A, frequency signals from 45-65 Hz, and digital status inputs.
Q: Does the IS220PPDAH1A require a separate power supply input?
A: Yes. The module operates from a 24 VDC power supply connection within the Mark VIe control system cabinet.
Q: Which communication protocols does the IS220PPDAH1A support?
A: The module supports Modbus RTU and Modbus TCP communication for power distribution feedback and diagnostic data exchange.
Field Installation Guidelines
- Install the IS220PPDAH1A inside the designated GE Mark VIe control cabinet slot according to system hardware drawings.
- Verify the 24 VDC supply polarity before connecting the module power terminals.
- Route voltage and current measurement wiring separately from high-noise switching circuits to reduce signal interference.
- Use proper shielding and grounding methods for communication cables connected to the module.
- Confirm terminal connections for AC/DC measurement inputs before system energization.
- Check module communication status through the Mark VIe controller interface after installation.
- Apply only supported firmware packages compatible with the installed Mark VIe hardware configuration.
