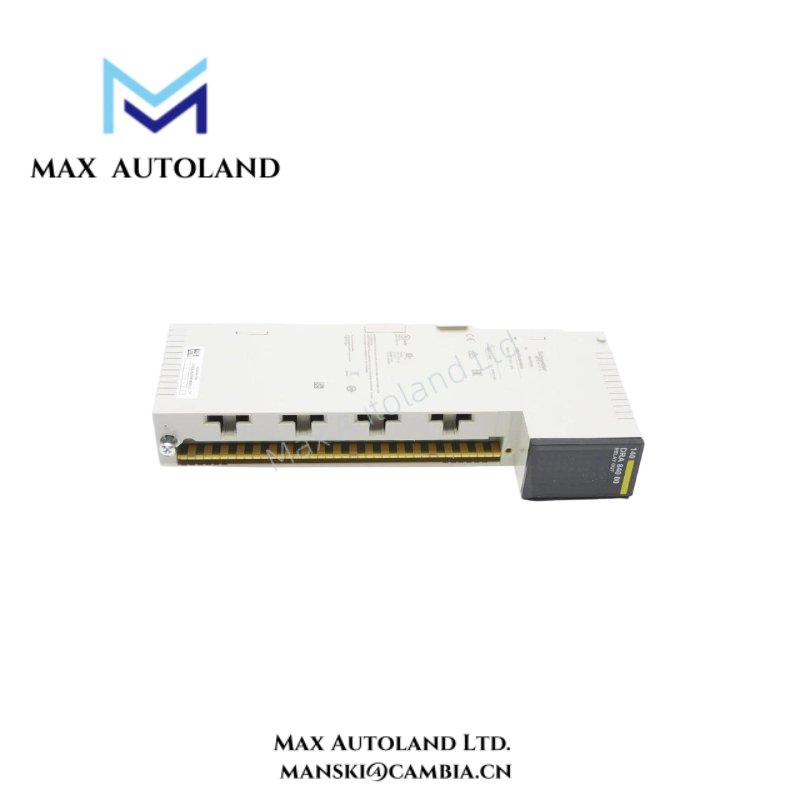

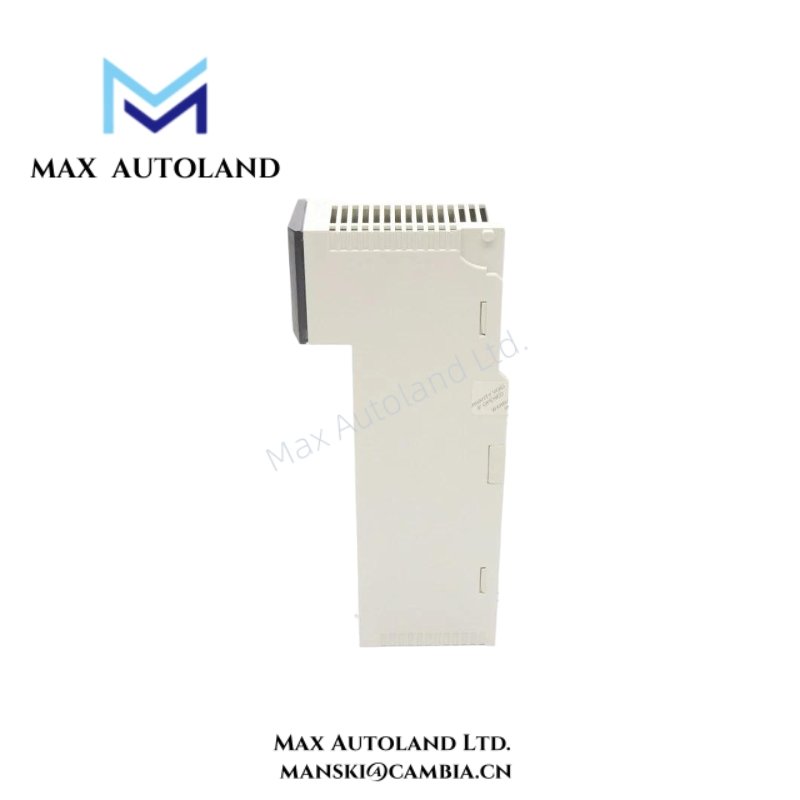

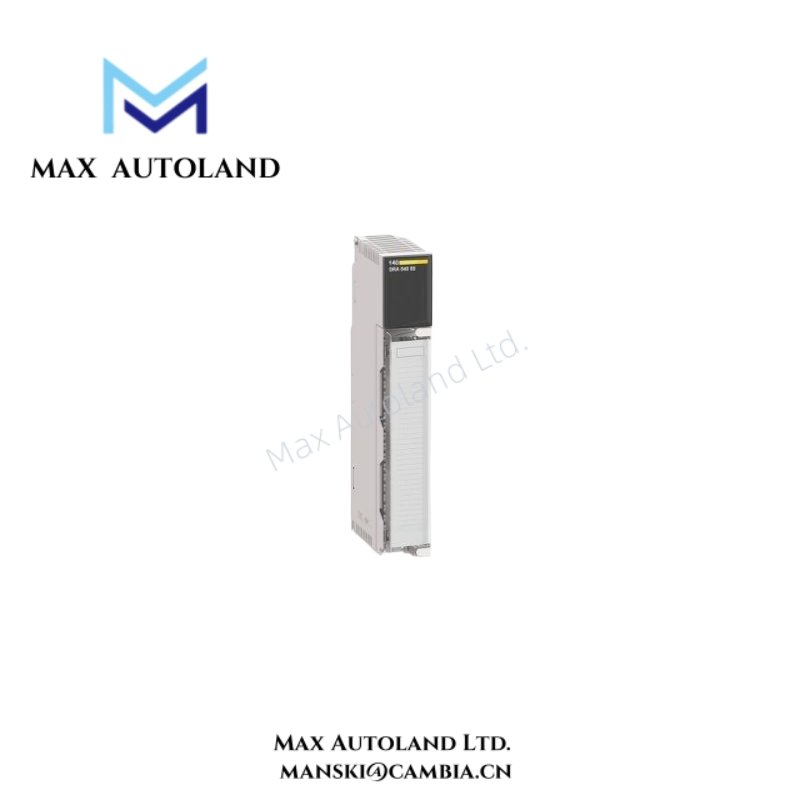

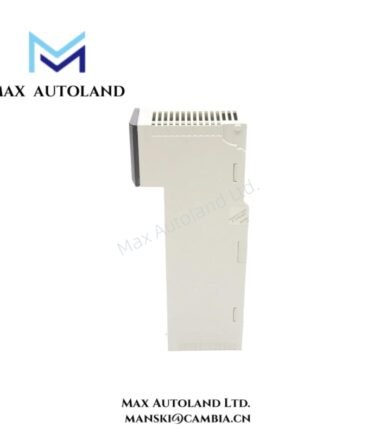

Overview
Engineers select the 140DRA84000 for its modular design, seamless integration with Modicon Quantum PLC racks, and capability to support continuous operation in demanding industrial environments. Its diagnostic LEDs provide clear status indicators, allowing efficient system monitoring and quick troubleshooting.
Specification
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | 140DRA84000 |
| Module Type | Discrete Output Module |
| Number of Channels | 16 |
| Output Voltage | 20–253 V AC |
| Output Type | Relay output |
| Switching Current | 0.5 A max per channel |
| Isolation | Individual channel isolation |
| Status LEDs | 16 green channel LEDs, 1 red fault LED |
| Response Time | 2–3 ms typical |
| Power Dissipation | ≤ 4 W |
| External Power Supply | Not required, powered by backplane |
| Operating Temperature | 0–60°C |
| Storage Temperature | -40–85°C |
| Module Format | Standard Modicon Quantum rack mount |
| Weight | 0.3 kg |
| Certifications | CE, UL 508, CSA C22.2 No 142 |
FAQ
Q: Is the 140DRA84000 brand new and original?
A: Yes, this module is 100% original Schneider Electric and comes fully factory-sealed.
Q: What is the typical delivery time?
A: We ship within 3 days to 2 weeks, depending on order size, using carriers like DHL.
Q: Can I return the product if there is a quality issue?
A: Yes, we offer a 30-day return policy for quality-related issues.
Q: What is the maximum load current per output channel?
A: Each output channel can handle up to 0.5 A reliably.
Q: Does it require external power?
A: No, the 140DRA84000 receives power directly from the Modicon Quantum backplane.
