Overview
Specification
| Specification | Details |
|---|---|

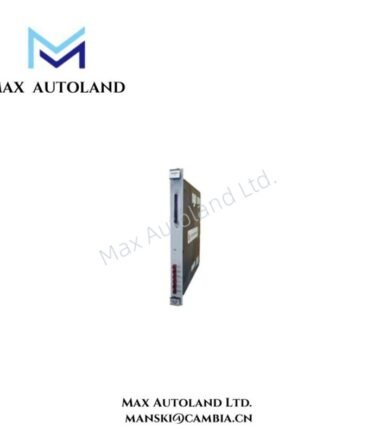

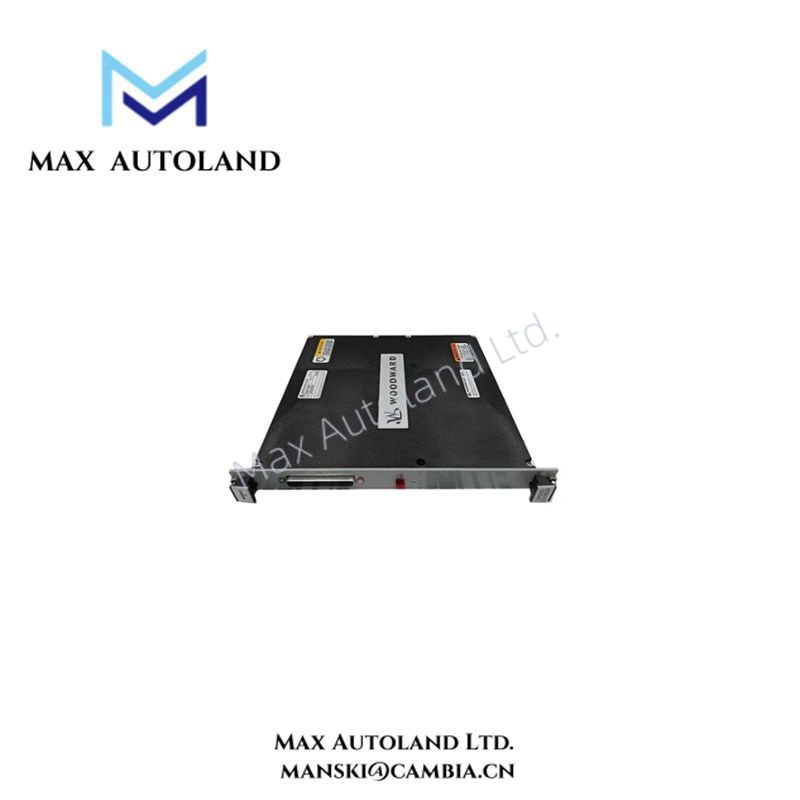

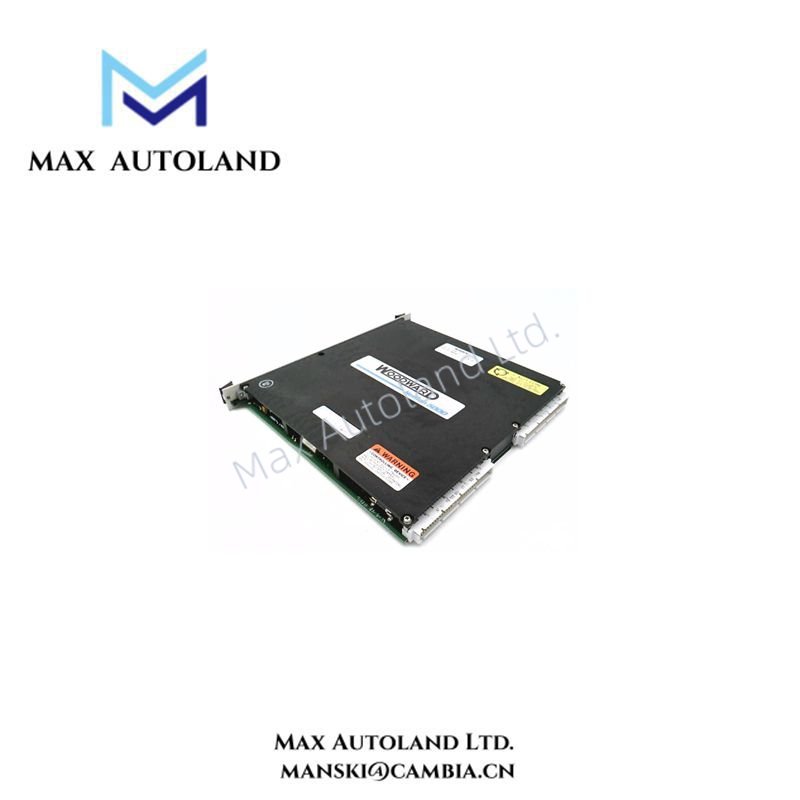

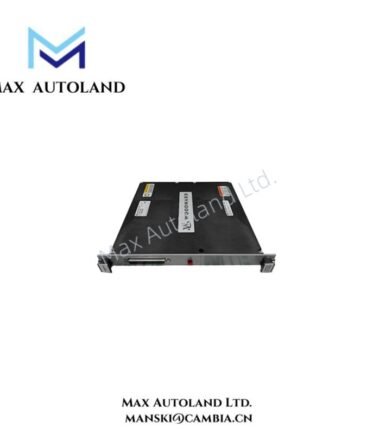

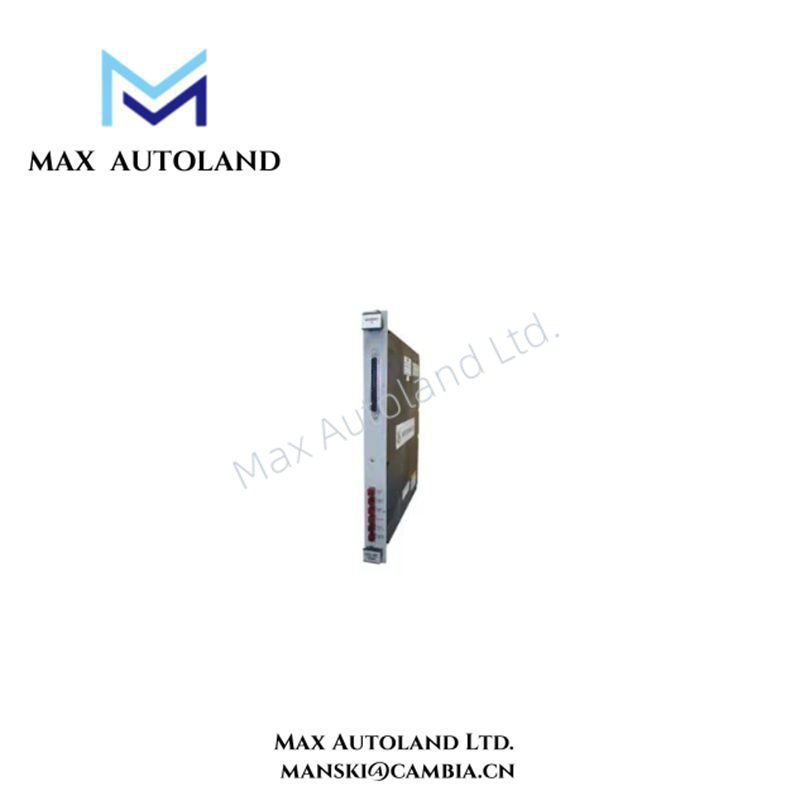

| Model / Type | 5464-648 |
| Manufacturer | Woodward |
| Module Type | Analog Output Module, 8 Channels |
| Output Signal Range | 4–20 mA |
| Number of Channels | 8 |
| Output Accuracy | ±0.25% of full scale typical |
| Load Resistance | 600 Ω maximum per channel |
| Power Requirements | 24 Vdc nominal, 150 mA typical |
| Dimensions | 127 mm x 64 mm x 76 mm (L×W×H) |
| Weight | 0.45 kg |
| Operating Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 95% non-condensing |
| Agency Approvals | CE, RoHS compliant |
FAQ
A1: The 5464-648 provides eight independent 4–20 mA analog output channels.Q2: What is the output accuracy of this module?
A2: It offers ±0.25% of full scale typical, ensuring precise signal control.
Q3: What is the maximum load resistance per channel?
A3: Each channel supports a load resistance of up to 600 Ω.
Q4: What are the power requirements for operation?
A4: The module requires a nominal 24 Vdc supply, drawing approximately 150 mA typical.
Q5: Can this module operate in harsh environments?
A5: Yes, it supports operating temperatures from -40°C to 85°C with 95% non-condensing humidity.
