Overview

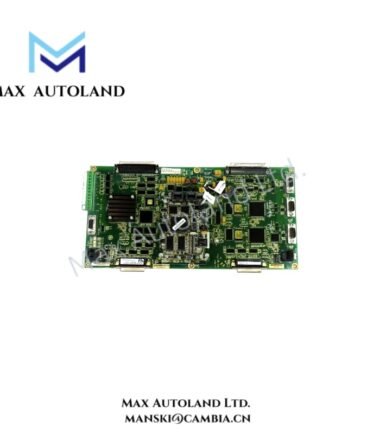

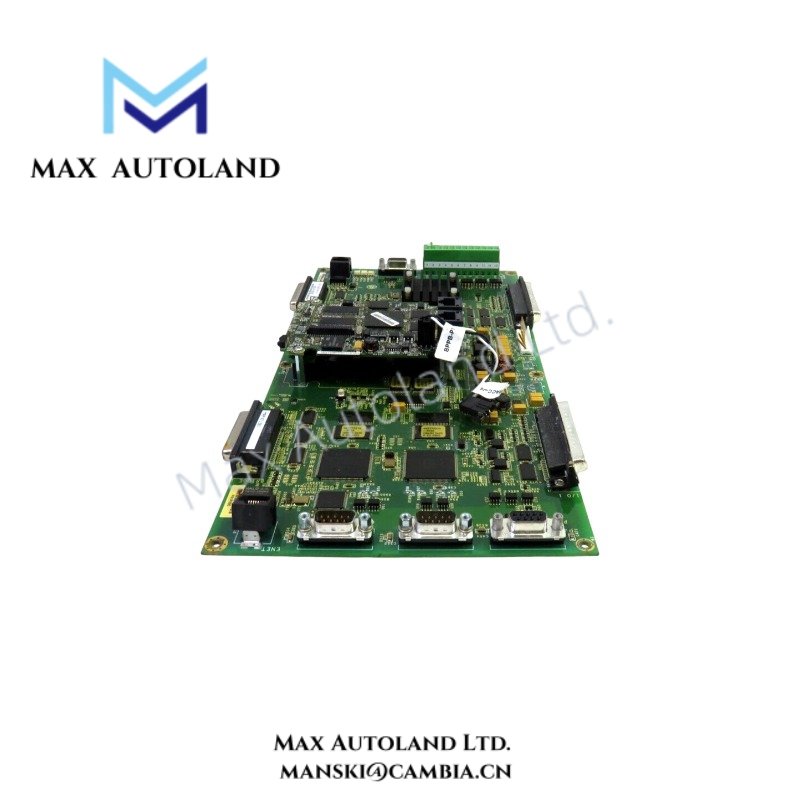

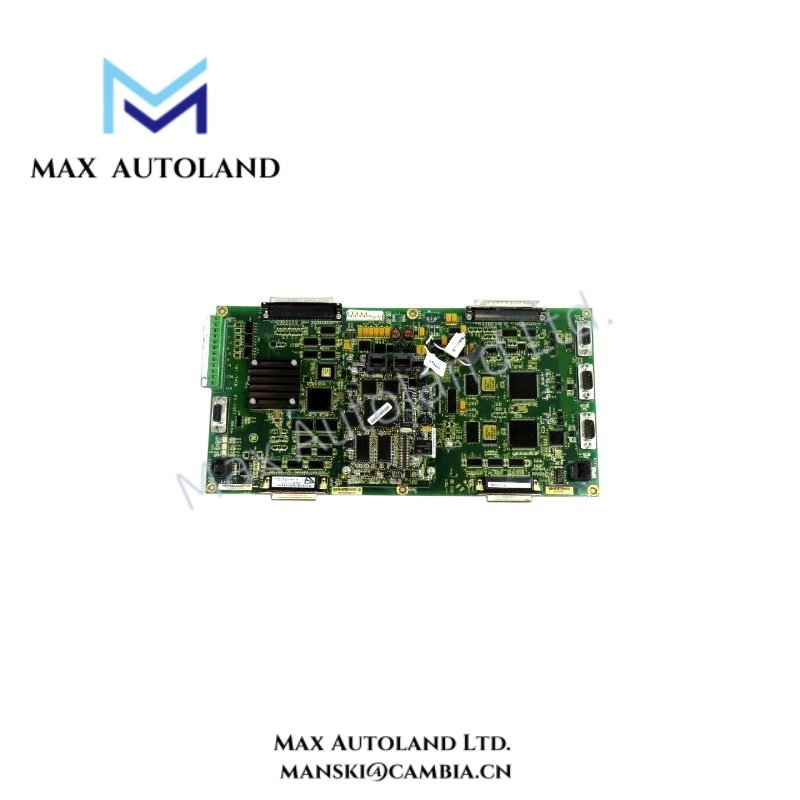

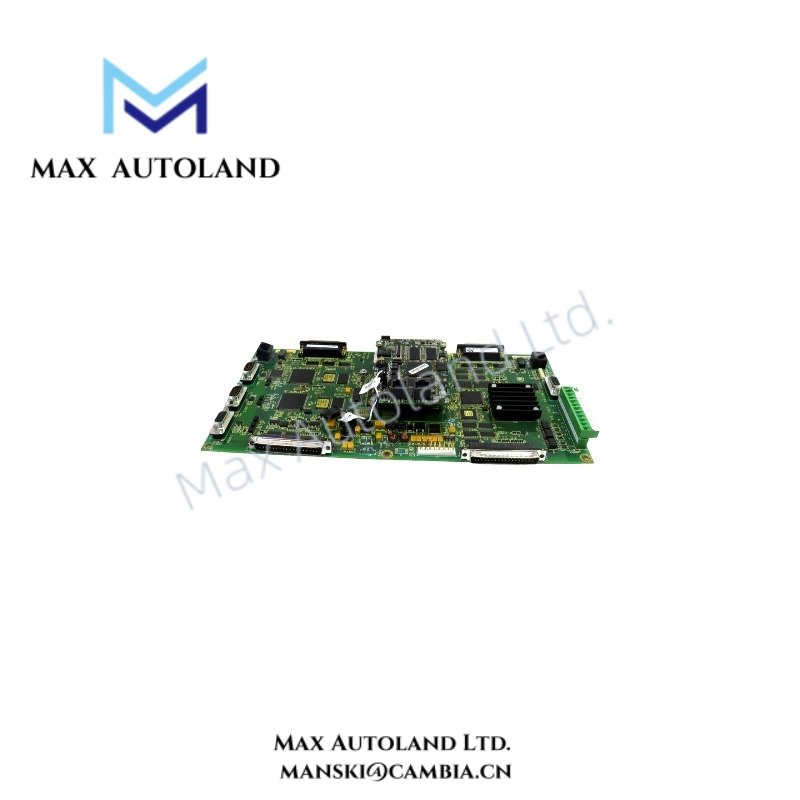

Configured for multi-channel I/O signal processing in the GE Mark VIe control system, the GE IS210BPPBH2BMD (IS210BPPBH2B Printed Circuit Board) provides direct physical and electrical execution for digital, analog, and pulse input acquisition functions.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS210BPPBH2BMD |
| Brand | General Electric |
| Product Type | Printed Circuit Board |
| Series | Mark VIe |
| Spare Model | IS210BPPBH2B |
| Origin | USA |
| Weight | 0.05 kg |
| Dimensions | 11 x 7.5 x 2.2 cm |
| Operating Temp | -40 deg C to +70 deg C |
| Storage Temp | -50 deg C to +85 deg C |
| Power Consumption | Not specified |
| Input Voltage | 24 VDC +/-10% |
| Digital I/O | 32 channels |
| Analog Inputs | 16 channels |
| Pulse Inputs | 4 channels |
| Isolation Voltage | 1500 VAC |
| Humidity | 0-95% non-condensing |
| Ethernet Interface | 10BaseT/AUI connector |
| Female Plug Connectors | 2 |
| Power Supply Rating | 125 VDC |
| Software Frame Rates | 10 ms, 20 ms, and 40 ms |
Industrial Control Network and I/O Processing Characteristics
The IS210BPPBH2BMD operates as a Mark VIe printed circuit board for distributed control signal acquisition and interface execution. It manages multiple I/O channels through defined electrical isolation and input conditioning circuits.
Furthermore, the board supports I/O density scaling within GE industrial control architectures through its combination of 32 digital input/output channels, 16 analog input channels, and 4 pulse input channels. The hardware design allows integration with Mark VIe controller networks using Ethernet communication interfaces.
The module supports firmware flash compatibility within the GE Mark VIe platform. Therefore, system engineers can maintain hardware consistency during controller configuration updates when the installed firmware version matches the supported control system environment.
Frequently Asked Questions
Q: What type of signals can the IS210BPPBH2BMD process?
A: The board processes digital I/O signals, analog input signals, and pulse input signals. It provides 32 digital I/O channels, 16 analog inputs, and 4 pulse inputs.
Q: Does the IS210BPPBH2BMD provide electrical isolation?
A: Yes. The board provides 1500 VAC isolation according to the supplied technical specifications, supporting separation between field signals and control electronics.
Q: Which control platform supports the IS210BPPBH2BMD?
A: The IS210BPPBH2BMD belongs to the GE Mark VIe control system platform and operates as a dedicated printed circuit board component within this architecture.
