Overview

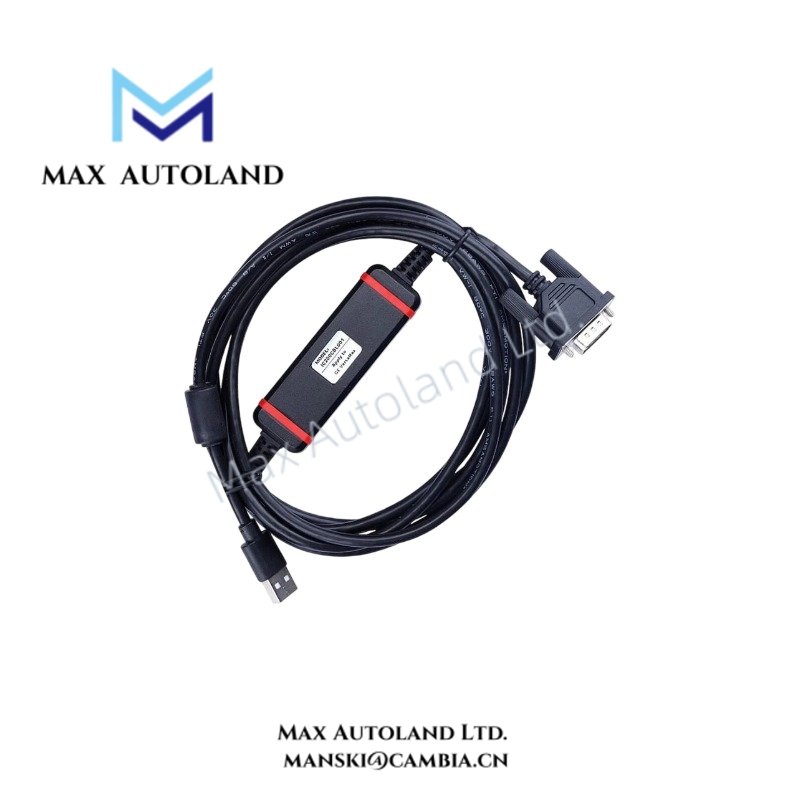

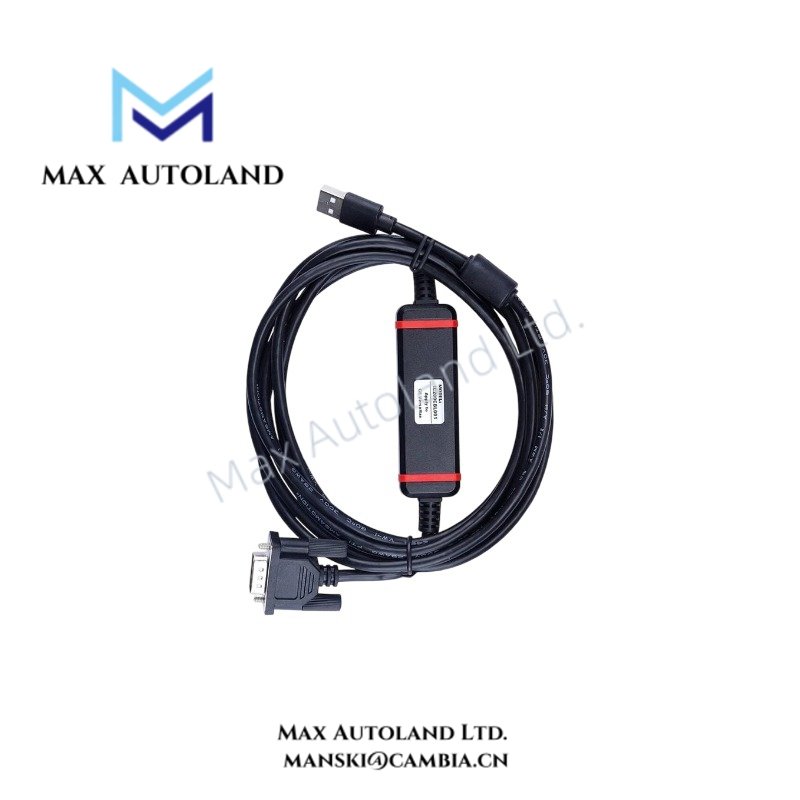

Configured for PLC programming and serial communication in VersaMax control systems, the GE Fanuc Emerson IC200CBL001 (IC200CBL001 Programming Cable) provides a direct physical RS-232 communication path between compatible programming equipment and PLC hardware. The cable uses a straight-through shielded copper construction and supports serial data transfer rates up to 115,200 bps.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC200CBL001 |
| Brand | GE Fanuc Emerson |
| Product Type | Programming Cable |
| Series | VersaMax |
| Cable Type | Straight-through RS-232 serial cable |
| Connector Configuration | 9-pin D-sub |
| Connector Type | Crimp |
| Cable Length | 15 m (50 ft) |
| Maximum Data Rate | 115,200 bps |
| Conductor Material | Copper |
| Cable Shield | Yes |
| Wire Size | 24 AWG |
| Voltage Rating | 30 V |
| Operating Temp | Up to 80 deg C |
| Weight | 0.56 lb (0.26 kg) |
| Power Consumption | Passive cable; no separate power consumption specified |
Industrial Serial Communication Interface
The IC200CBL001 provides a physical serial communication connection for VersaMax PLC programming and related data exchange. Its straight-through RS-232 wiring maintains direct conductor continuity between compatible interfaces. In addition, the shielded cable construction helps reduce external electrical interference along the 15 m cable route.
The GE industrial control platform uses dedicated hardware interfaces and communication paths to support controller configuration and maintenance. Therefore, installers should verify connector pin compatibility and serial port requirements before connecting the cable to PLC equipment.
Frequently Asked Questions
Q: What communication standard does the IC200CBL001 use?
A: The IC200CBL001 uses a straight-through RS-232 serial cable configuration.
Q: What is the maximum supported data rate?
A: The cable supports data transfer rates up to 115,200 bps.
Q: Does the IC200CBL001 require a separate power supply?
A: No separate power consumption is specified because the IC200CBL001 functions as a passive communication cable.
Field Installation Guidelines
Route the IC200CBL001 separately from high-voltage power conductors, motor cables, and variable-frequency drive output wiring where practical.
Maintain the cable shield according to the grounding requirements of the connected equipment. Avoid unnecessary shield interruptions along the cable route.
Check the 9-pin D-sub connector orientation before installation. Do not force the connector into an incompatible serial interface.
Secure the cable to prevent excessive bending, pulling, crushing, or mechanical stress. Also inspect the connector and cable jacket before commissioning.
