Overview

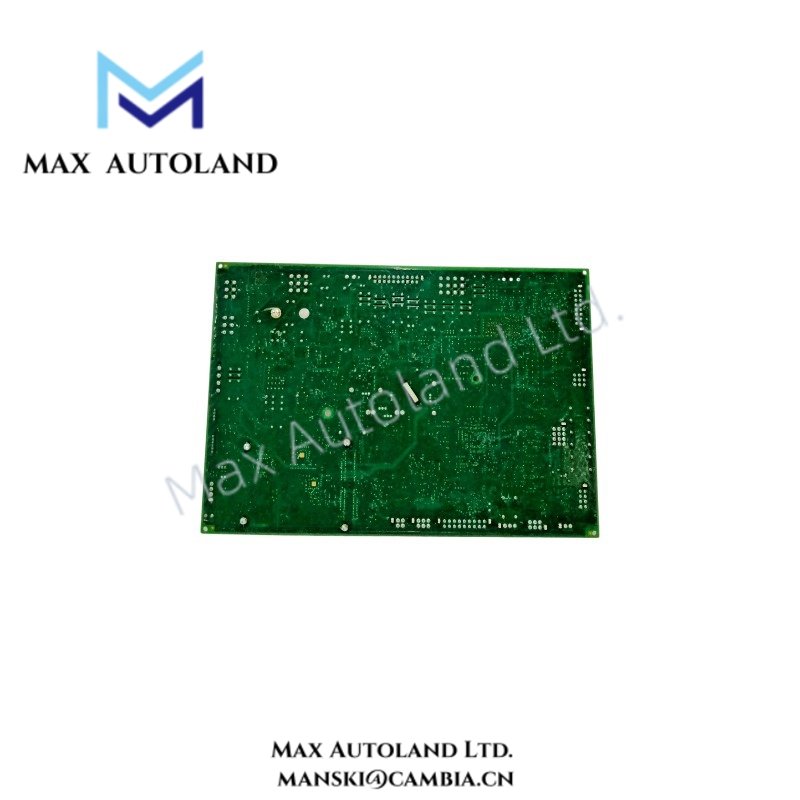

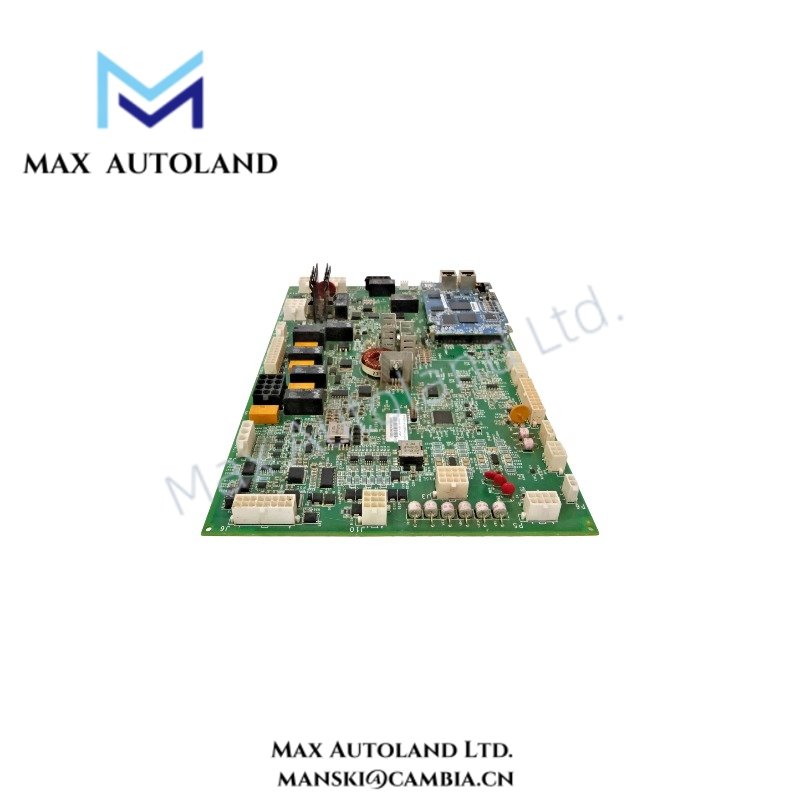

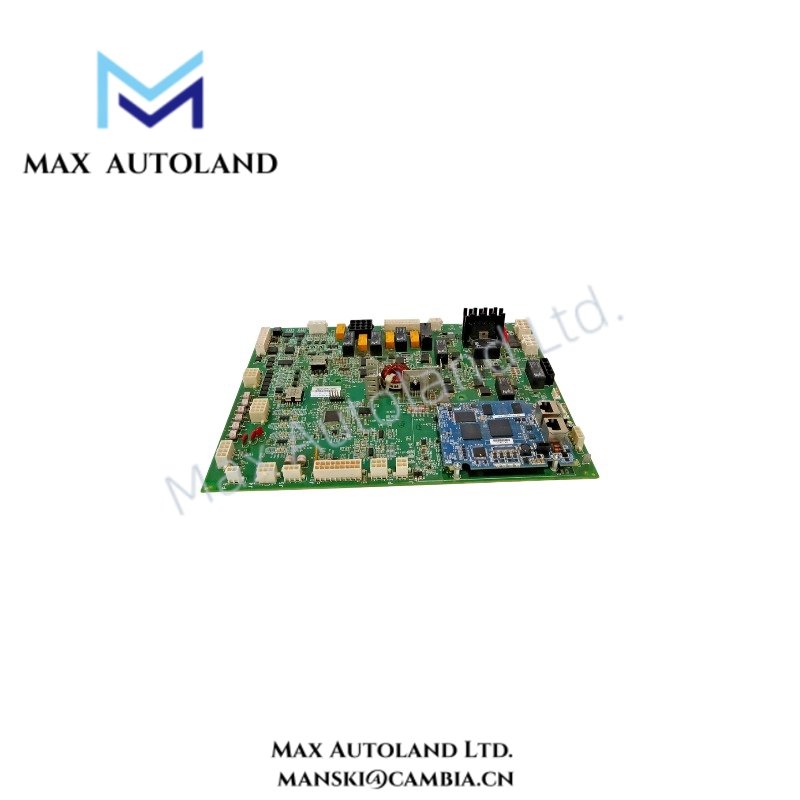

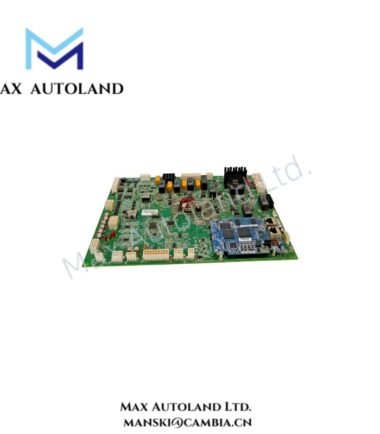

Configured for signal acquisition, local data processing, and high-speed communications in GE Mark VI / Mark VIe control platforms, the GE Fanuc IS200AEPAH1BHC (IS200AEPAH1BHC PCB / I/O processor board) provides physical signal and network interfaces for industrial control execution. The supplied data also associates this assembly with hardware revision IS215WEPAH2AB.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS200AEPAH1BHC |
| Associated Hardware Revision | IS215WEPAH2AB |
| Brand | GE Fanuc / General Electric |
| Series | Mark VI / Mark VIe Speedtronic |
| Product Type | PCB / I/O Pack Processor Board |
| Operating Temp | -40 deg C to 70 deg C |
| Power Consumption | 4 W maximum |
| Operating Voltage | 5 VDC internal power regulation |
| Processor Architecture | Intel-based processing architecture |
| Input Channels | 16 channels, differential or single-ended |
| Output Channels | 8 channels, single-ended |
| ADC Resolution | 12 bit |
| Sampling Rate | 200 kHz |
| Ethernet Interface | 10/100/1000BASE-T |
| Ethernet Features | Jumbo frames and hardware-based checksumming |
| CAN Bus Interface | 1 Mbps maximum stated data rate |
| Form Factor | GE VME rack-compatible modular PCB |
Industrial Control and Communication Architecture
The IS200AEPAH1BHC combines signal acquisition, local processing, and network communication functions within the Mark VI / Mark VIe hardware architecture. Its 16 input channels accept differential or single-ended signals, while 8 single-ended outputs provide corresponding control-side signal paths.
The 12 bit ADC provides digital conversion for acquired analog signals, while the stated 200 kHz sampling rate supports high-speed signal acquisition. In addition, the Ethernet interface supports 10/100/1000BASE-T connectivity with jumbo-frame and hardware-checksum functions.
The CAN interface operates at a stated data rate of 1 Mbps. Therefore, installation should maintain appropriate separation between communication wiring and high-energy switching conductors to reduce externally coupled interference.
Frequently Asked Questions (FAQ)
Q: What supply voltage does the IS200AEPAH1BHC require?
A: The supplied specification identifies 5 VDC as the internal operating voltage with internal power regulation.
Q: How many signal channels does the board provide?
A: The supplied data specifies 16 input channels and 8 single-ended output channels.
Q: Does the board support Ethernet communication?
A: Yes. The specified interface supports 10/100/1000BASE-T Ethernet, including jumbo frames and hardware-based checksumming.
Field Installation Guidelines
- Verify the complete IS200AEPAH1BHC part number and associated hardware revision before installation.
- Confirm rack compatibility and mechanical seating before applying system power.
- Inspect the PCB, connectors, and backplane interface for contamination, mechanical damage, or bent contacts.
- Route Ethernet and CAN communication wiring separately from high-current switching and power conductors where practical.
- Maintain appropriate cable shielding and grounding practices according to the installed Mark VI / Mark VIe system documentation.
- Confirm signal polarity and channel assignment before connecting field wiring.
- Apply power only after verifying connector seating, rack position, and wiring continuity.
- Do not assume hot-swap capability unless the applicable GE system documentation explicitly permits live replacement for the installed configuration.
