Overview

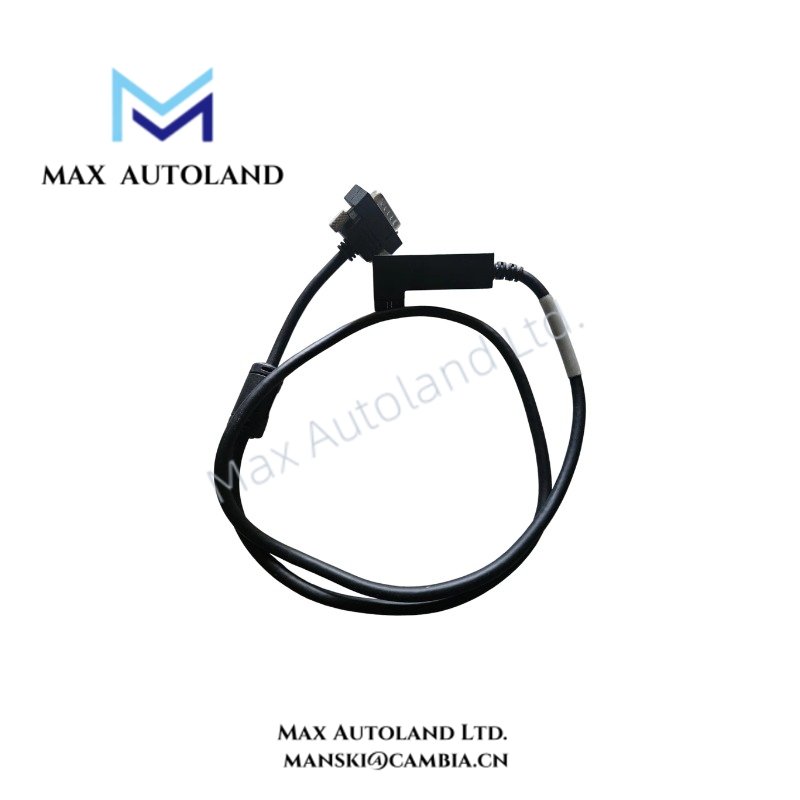

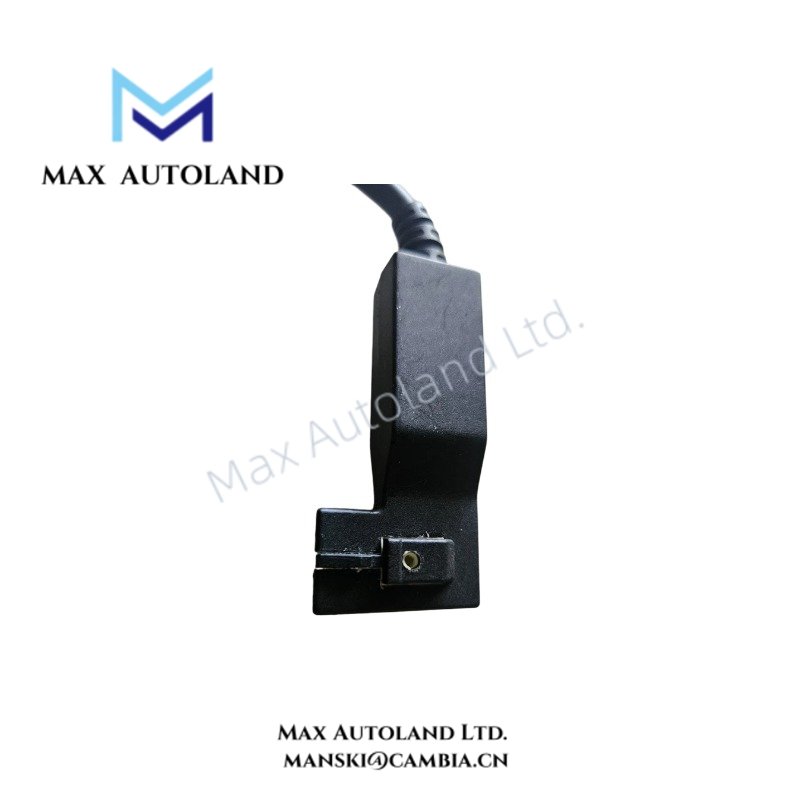

Configured for rack expansion communication in VersaMax PLC systems, the GE Fanuc Emerson IC200CBL600 (IC200CBL600 Rack Expansion Cable) provides a physical shielded connection between compatible expansion components. The 1 m, single-ended cable supports one Expansion Receiver Module and uses a black outer jacket with shielding to reduce exposure to electrical interference along the cable path.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC200CBL600 |
| Brand | GE Fanuc Emerson |
| Product Type | Rack Expansion Cable |
| Product Line | VersaMax |
| Weight | 0.56 lb (0.26 kg) |
| Dimensions | Length: 1 m |
| Operating Temp | 0 to 60 deg C |
| Storage Temp | -40 to 85 deg C |
| Humidity | 5 to 95% |
| Power Consumption | Not specified; passive cable assembly |
| Jacket Color | Black |
| Shielded | Yes |
| Cable Configuration | Single-ended |
| Compatibility | VersaMax PLCs |
| Expansion Module Capacity | 1 Expansion Receiver Module |
| Shock Rating | 15 G |
VersaMax Expansion Bus Communication
The IC200CBL600 provides the physical cable path required for expansion communication within a VersaMax PLC installation. Its 1 m cable length supports equipment layout where an expansion receiver requires separation from the associated rack or controller assembly.
In addition, the shielded cable construction helps reduce external electrical interference around the communication path. Correct shield grounding and cable routing therefore support stable backplane and expansion bus communication. The cable itself does not perform signal processing, I/O conversion, or firmware execution.
Frequently Asked Questions
Q: What is the primary function of the IC200CBL600?
A: The IC200CBL600 provides a shielded physical connection for VersaMax PLC rack expansion communication and supports one Expansion Receiver Module.
Q: Is the IC200CBL600 an active electronic module?
A: No. It is a passive cable assembly. Therefore, it does not have a specified internal power consumption or firmware version.
Q: Does the cable include shielding?
A: Yes. The IC200CBL600 uses a shielded cable construction with a black outer jacket.
Field Installation Guidelines
Install the IC200CBL600 only after confirming compatibility with the installed VersaMax expansion hardware. Route the cable away from high-current conductors, motor power wiring, and other significant electrical noise sources.
Avoid excessive bending, crushing, tension, or sharp mechanical stress along the 1 m cable. In addition, maintain proper separation between communication wiring and power circuits. Connect and ground the cable shielding according to the applicable VersaMax system installation requirements to maintain the intended interference protection.
Before system startup, inspect both cable ends for secure engagement and verify that the expansion receiver configuration matches the installed hardware.
