Overview

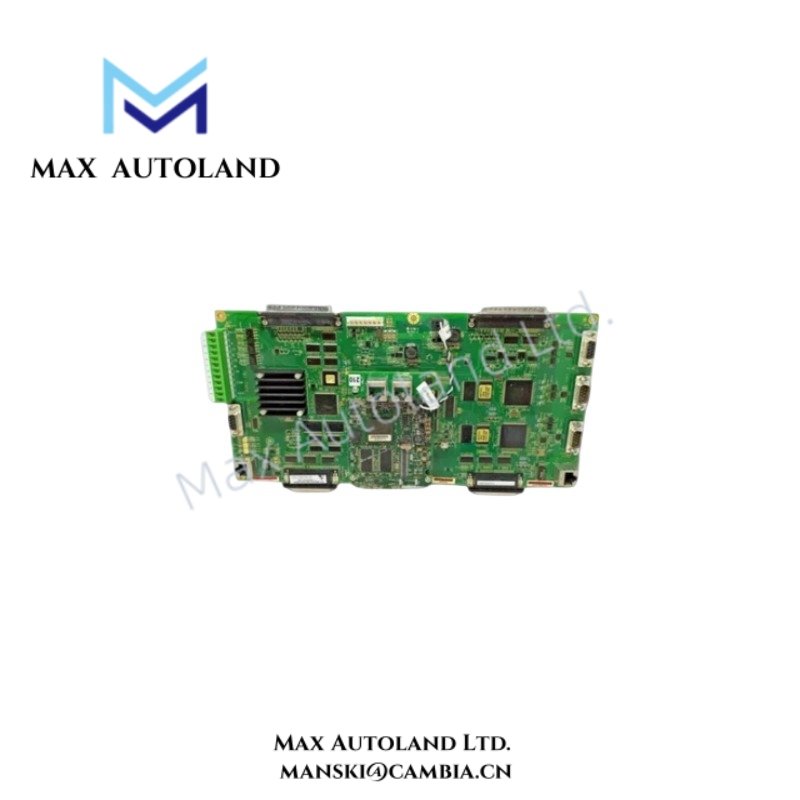

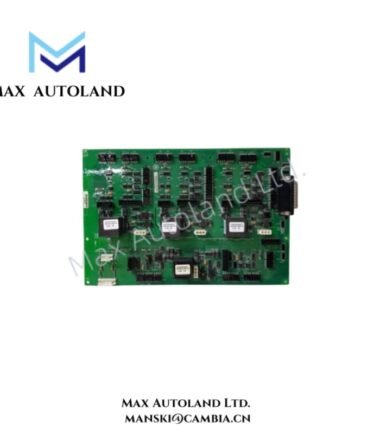

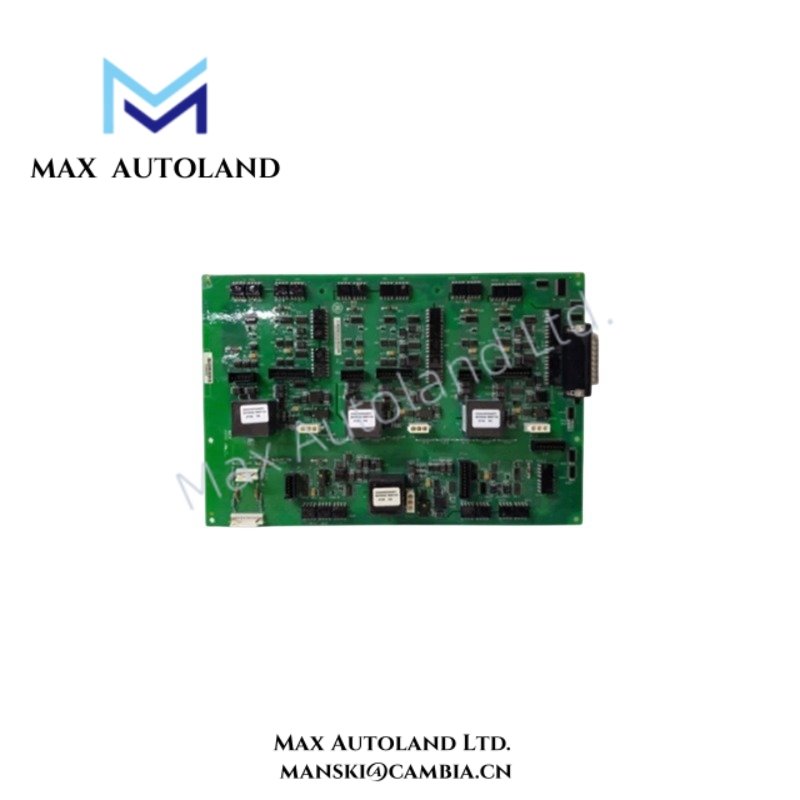

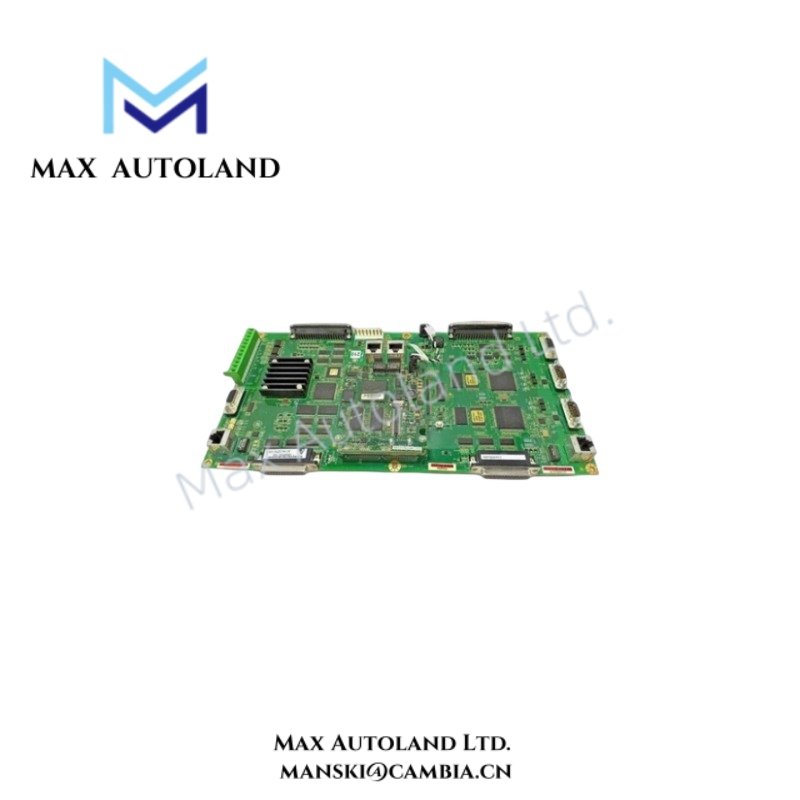

The GE IS215AEPAH1CA, also cataloged as the IS215AEPAH1CA AEPA Card Module Assembly, operates as a dedicated hardware component for wind turbine pitch axis control execution within the GE Mark VIe Wind Control System.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS215AEPAH1CA |
| Brand | General Electric (GE Energy / GE Fanuc) |
| Origin | USA |
| Product Type | AEPA Card Module Assembly / Printed Circuit Board |
| Series | Mark VIe Wind Turbine Control System |
| Functional Acronym | AEPA |
| Application | Wind turbine pitch axis control |
| Processor Compatibility | BPPC processor board |
| Motor Type Support | DC series-wound pitch motors |
| Operating Temp | -40 deg C to +70 deg C |
| Storage Temp | -55 deg C to +85 deg C |
| PCB Protection | Conformal coating for environmental protection |
| Software Compatibility | ControlST V04.06 or later |
Industrial Control and Firmware Compatibility
The IS215AEPAH1CA integrates with GE Mark VIe Wind control architecture through dedicated hardware interfaces and processor communication paths. The module executes pitch axis control functions by processing electrical feedback signals and issuing motor control commands.
Furthermore, the board supports BPPC processor integration for updated processing functions and firmware compatibility. The ControlST software environment provides configuration and diagnostic access when the module operates with compatible system versions.
The GE control platform uses deterministic industrial communication methods. Therefore, firmware flash compatibility and controller configuration management must follow the defined Mark VIe Wind engineering procedures.
Frequently Asked Questions
Q: What function does the IS215AEPAH1CA perform in the Mark VIe Wind system?
A: The IS215AEPAH1CA performs wind turbine pitch axis control functions by processing feedback signals and controlling DC series-wound pitch motors.
Q: Does the IS215AEPAH1CA require a specific processor board?
A: The module supports BPPC processor board configurations within the Mark VIe Wind control system architecture.
Q: What software version supports the IS215AEPAH1CA?
A: The module is compatible with ControlST software version V04.06 or later according to the provided technical specification.
Field Installation Guidelines
- Install the IS215AEPAH1CA only in the designated Mark VIe Wind control rack position.
- Verify connector alignment before inserting the PCB assembly into the backplane interface.
- Maintain proper grounding practices to reduce electrical interference during pitch motor operation.
- Route motor power wiring separately from low-level feedback signal wiring to reduce electromagnetic coupling.
- Inspect conformal coating condition before installation in environments with moisture or airborne contaminants.
- Confirm firmware and controller configuration compatibility before placing the module into operational service.
- Follow GE Mark VIe Wind installation documentation for rack handling, maintenance access, and system commissioning procedures.
