Overview

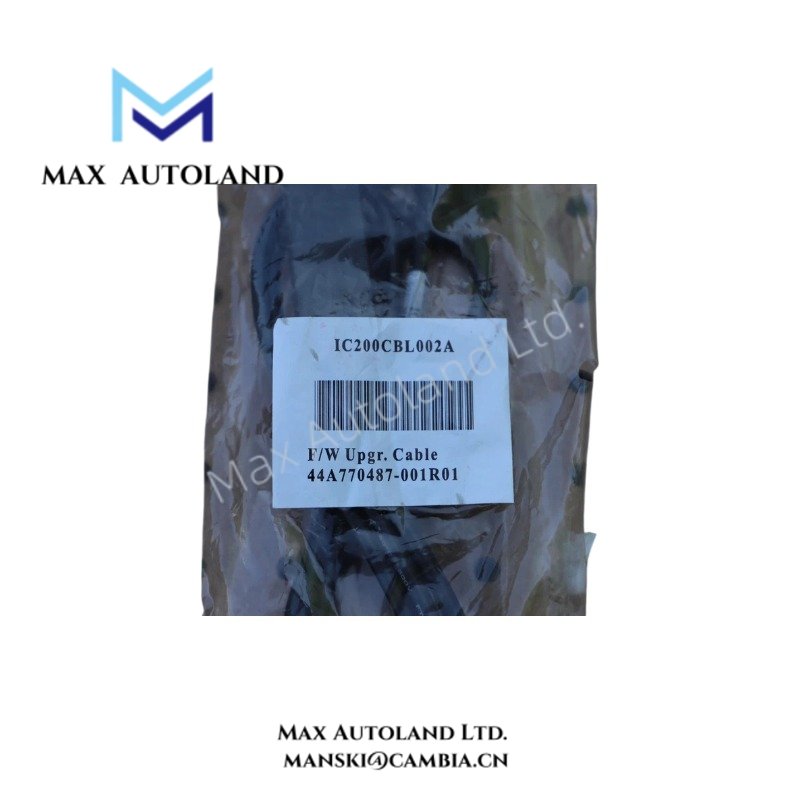

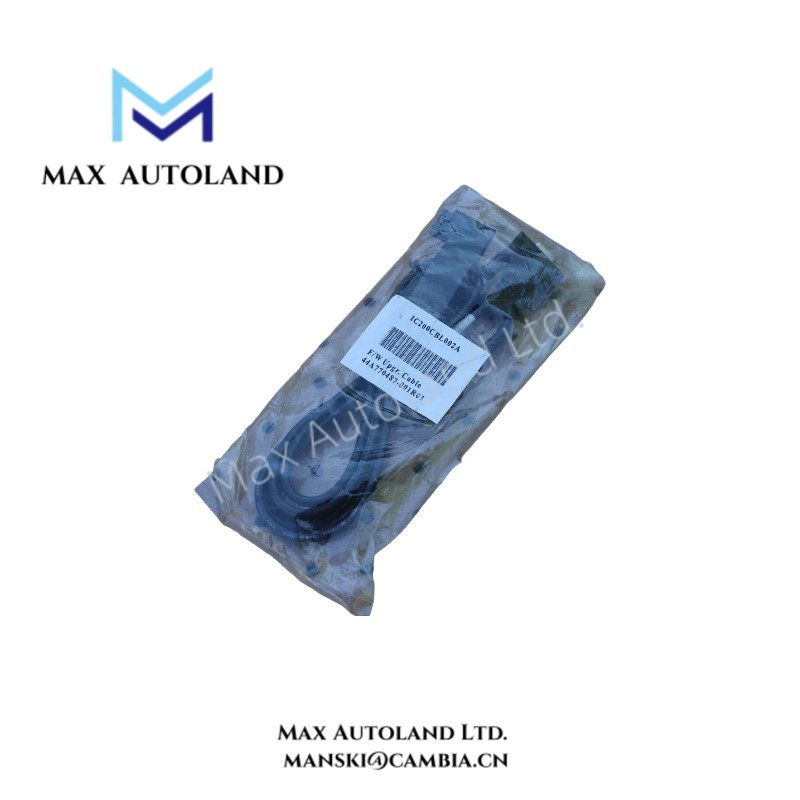

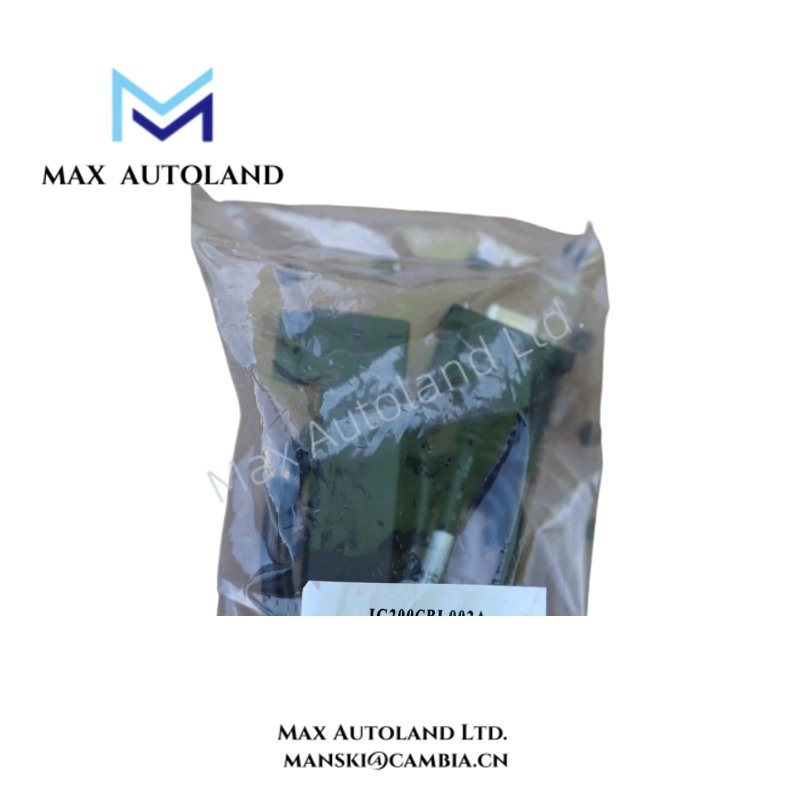

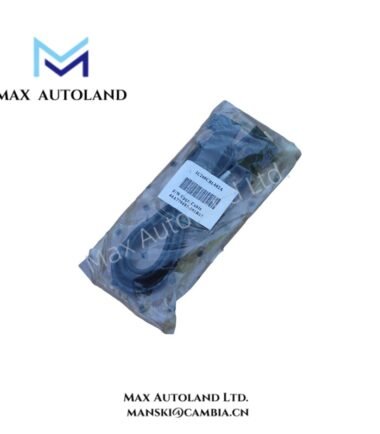

Configured for direct communication between a Network Interface Unit and a personal computer, the GE Fanuc IC200CBL002 (IC200CBL002 Programming Cable) provides a physical connection for PLC configuration, programming, diagnostics, and firmware-related communication within GE Fanuc VersaMax systems. Alternative part number 44A770487-001R01 identifies the associated cable assembly.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC200CBL002 |
| Alternative Part Number | 44A770487-001R01 |
| Brand | GE Fanuc |
| Product Type | Configuration / Programming Cable |
| Series | VersaMax |
| Primary Function | Connects a Network Interface Unit (NIU) to a Personal Computer (PC) |
| Compatibility | GE Fanuc VersaMax Series PLCs, Nano/Micro PLCs, and VersaMax NIUs |
| Application | Configuration, programming, diagnostics, and firmware-related communication |
| Weight | Approx. 0.1 kg / 0.22 lbs |
| Core Performance Indicator | Provides direct physical communication between compatible programming equipment and automation hardware |
VersaMax Communication and Firmware Compatibility
The IC200CBL002 supports direct physical communication between a compatible PC and GE Fanuc automation equipment through the appropriate Network Interface Unit connection. Therefore, technicians can use the cable during configuration and diagnostic procedures without adding a separate protocol conversion device.
Firmware-related operations depend on the connected PLC, NIU, programming software, and supported firmware revision. The cable itself provides the physical communication path and does not independently determine firmware compatibility. Consequently, technicians should verify device and software compatibility before starting firmware operations.
Frequently Asked Questions
Q: Can the IC200CBL002 connect directly to every VersaMax PLC port?
A: The cable is specified for communication between a compatible Network Interface Unit and a PC. The connected equipment must provide the required compatible interface.
Q: Does the IC200CBL002 require an external power supply?
A: No separate cable power consumption specification is provided. The cable functions as a physical communication connection and should not be assigned an unsupported power rating.
Q: Does the IC200CBL002 determine firmware upgrade compatibility?
A: No. Firmware compatibility depends on the connected automation device, Network Interface Unit, firmware revision, and programming software.
Field Installation Guidelines
Disconnect or place the connected automation equipment in the required maintenance condition before connecting communication hardware.
Route the IC200CBL002 away from high-current conductors, motor power cables, and other sources of electrical interference. In addition, avoid excessive bending, tension, twisting, or compression of the cable assembly.
Secure each connector fully before starting configuration or diagnostic communication. Do not force a connector into an incompatible interface. Furthermore, verify the connected NIU, PLC platform, PC interface, and programming software before initiating communication or firmware-related operations.
Follow site grounding and cable-routing practices for industrial control equipment. When communication errors occur, inspect connector engagement, cable condition, interface compatibility, and the configuration of the connected equipment.
