Overview

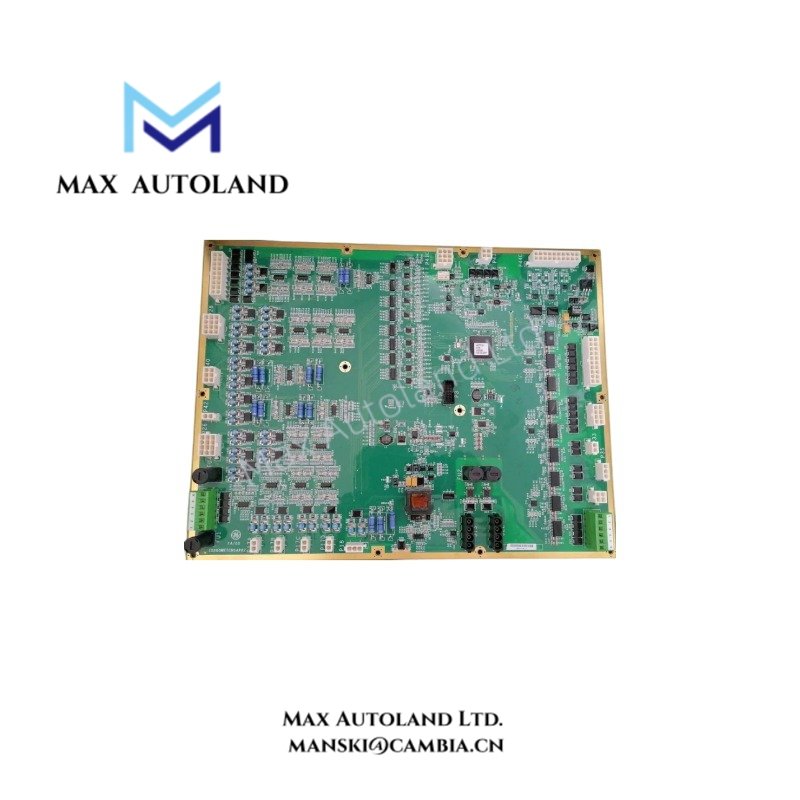

The GE IS200WETCH1A, also identified by the base model IS200WETCH1A, is described as a Wind Energy Terminal Board (WETH) associated with GE turbine control hardware. The supplied information identifies its role as a field-wiring interface for signal termination and distribution. Specific electrical ratings, terminal assignments, and compatibility details require confirmation against the applicable GE documentation.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS200WETCH1A |
| Brand | General Electric (GE) |
| Series | Mark VI / Mark VIe, as supplied |
| Product Type | Wind Energy Terminal Board |
| Board Designation | WETH, as supplied |
| Primary Function | Field-wiring termination and signal distribution, as described |
| Interface Type | Terminal-board interface |
| Configuration | Revision A; detailed configuration not verified |
| Mounting | Cabinet or panel mounting requires confirmation |
Terminal Interface and Electrical Integration
The terminal-board interface provides connection points for field conductors and associated control-system wiring. During system integration, engineers should verify terminal assignments, signal types, wiring polarity, and applicable voltage limits against the manufacturer’s drawings.
The supplied description also mentions jumpers, configuration headers, and surge-suppression components. However, their presence and electrical characteristics have not been independently verified for the IS200WETCH1A. Do not use these details to establish wiring or protection requirements without the applicable hardware documentation.
Frequently Asked Questions (FAQ)
Q: Can the IS200WETCH1A be installed in a Mark VI or Mark VIe system interchangeably?
A: Interchangeability is not established by the supplied information. Confirm the board’s hardware revision, rack or cabinet interface, terminal assignments, and system compatibility before installation.
Q: What power consumption and operating temperature should be used for cabinet design?
A: The supplied information does not specify either value. Obtain the applicable GE hardware documentation before calculating cabinet power budgets or verifying environmental limits.
Q: Does the IS200WETCH1A provide galvanic isolation or surge protection?
A: These features have not been verified for this exact model. Check the board schematic and hardware specification before relying on isolation or transient-protection functions.
Field Installation Guidelines
- Verify the hardware: Check the complete part number and revision marking against the approved equipment list.
- Inspect the board: Examine connectors, terminal blocks, and the PCB for physical damage before installation.
- Confirm terminal assignments: Use the applicable GE wiring diagram to identify each field connection and signal reference.
- Isolate power: Follow the site’s lockout and electrical isolation procedures before connecting or disconnecting conductors.
- Separate wiring: Route signal conductors separately from high-current and switching-power cables where the cabinet design requires separation.
- Terminate shields correctly: Apply the project’s grounding and shielding rules. Do not assume a specific shield-grounding arrangement without the wiring documentation.
- Check compatibility: Verify connector alignment, mounting requirements, electrical ratings, and system revision compatibility before energizing the equipment.
- Test before operation: Inspect wiring polarity and continuity, then perform the approved commissioning checks.
