Overview
Furthermore, each input channel delivers consistent 24 V DC signal detection, supporting high-speed scanning and real-time process monitoring. Therefore, engineers can confidently implement the module in large-scale automation projects while maintaining precise process control and operational safety. In addition, its reliable performance across diverse industrial applications ensures efficient system scalability and seamless process integration.
Specification
| Parameter | Specification |
|---|---|

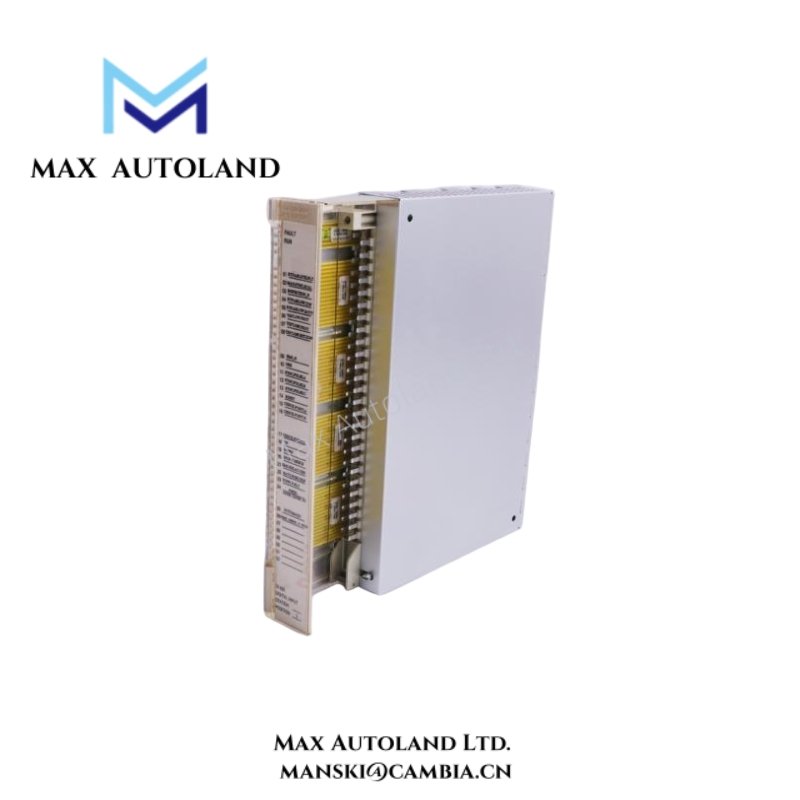

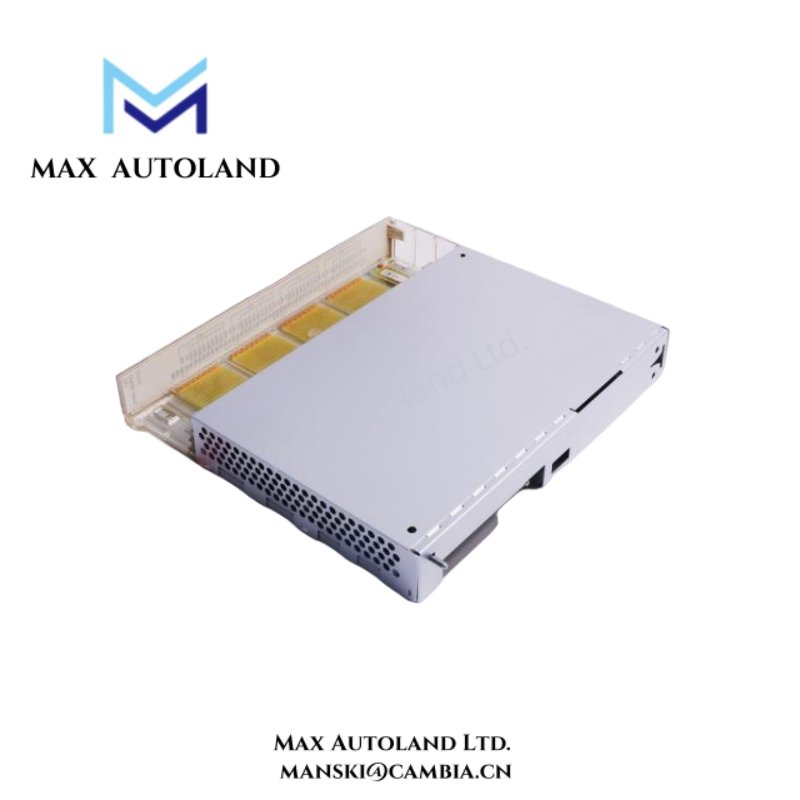

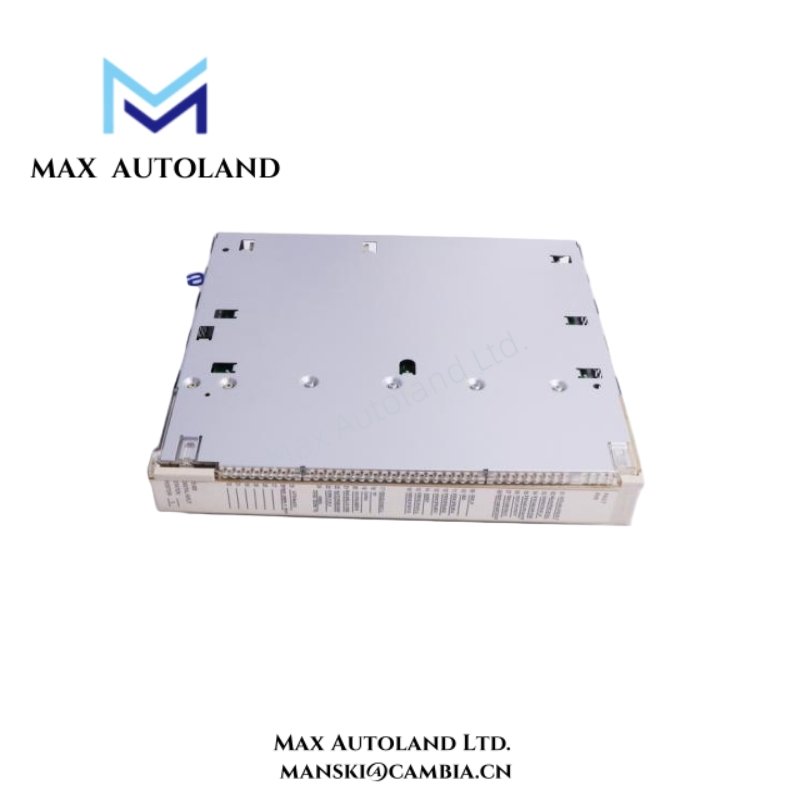

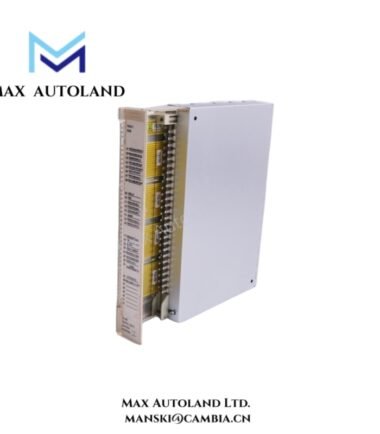

| Model / Part Number | DI620 / 3BHT300002R1 |
| Module Type | Digital Input Module |
| Input Channels | 32 discrete inputs |
| Input Voltage | 24 V DC nominal |
| Input Current | 6–10 mA per channel |
| Minimum Input | 10 mA |
| Maximum Input | 20 mA |
| Input ON Voltage | ≥ 19 V DC |
| Input OFF Voltage | ≤ 5 V DC |
| Switching Time | < 2 ms per channel |
| Protection | Overvoltage and transient protection per channel |
| Mounting | DIN‑rail or panel mountable |
| Dimensions | 252 mm (depth) × 273 mm (height) × 40 mm (width) |
| Weight | Approx. 1.2 kg |
| Operating Temperature | –25 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 5–95 % non-condensing |
| Compliance | IEC 61131-2, CE, UL508 |
| LED Indicators | Channel status LEDs for ON/OFF state |
| System Compatibility | ABB Advant OCS control systems |
FAQ
A1: It provides 32 discrete input channels for industrial monitoring.
Q2: What voltage and current does the module support?
A2: The module supports 24 V DC input signals with 6–10 mA per channel.
Q3: What is the input scanning or switching time?
A3: The switching time is less than 2 ms per channel, allowing fast process monitoring.
Q4: Is the module protected against overvoltage?
A4: Yes — each channel includes overvoltage and transient protection.
Q5: How is the DI620 module mounted?
A5: The module can be mounted on a DIN rail or a panel within the control cabinet.
