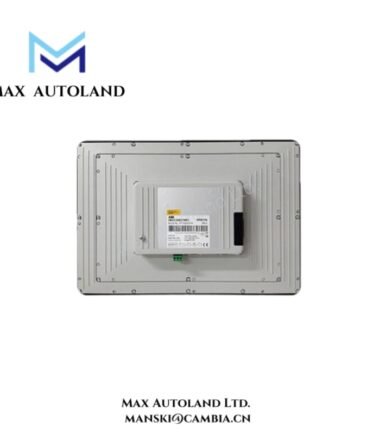

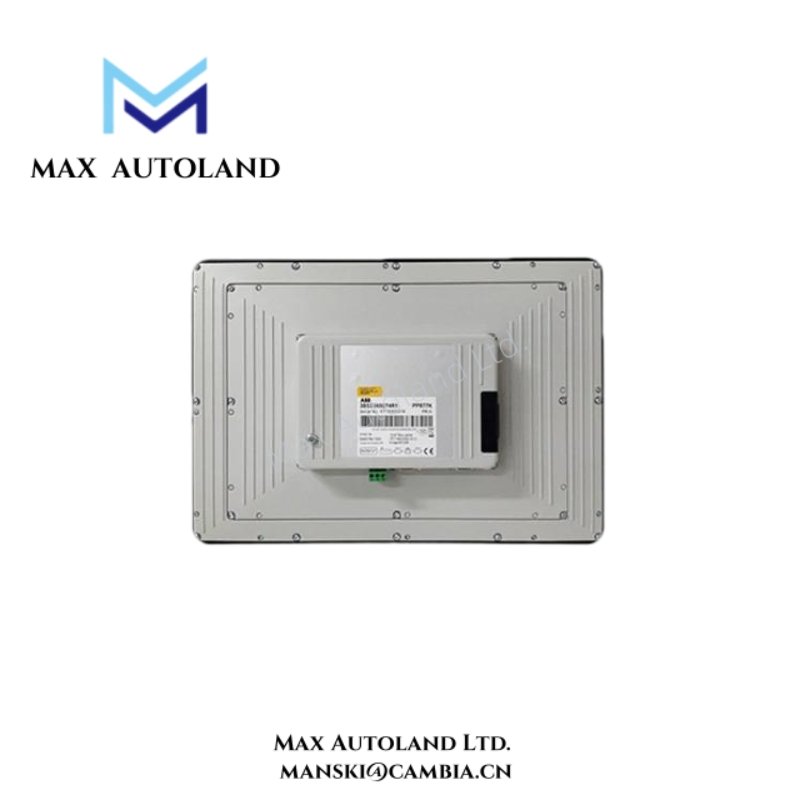

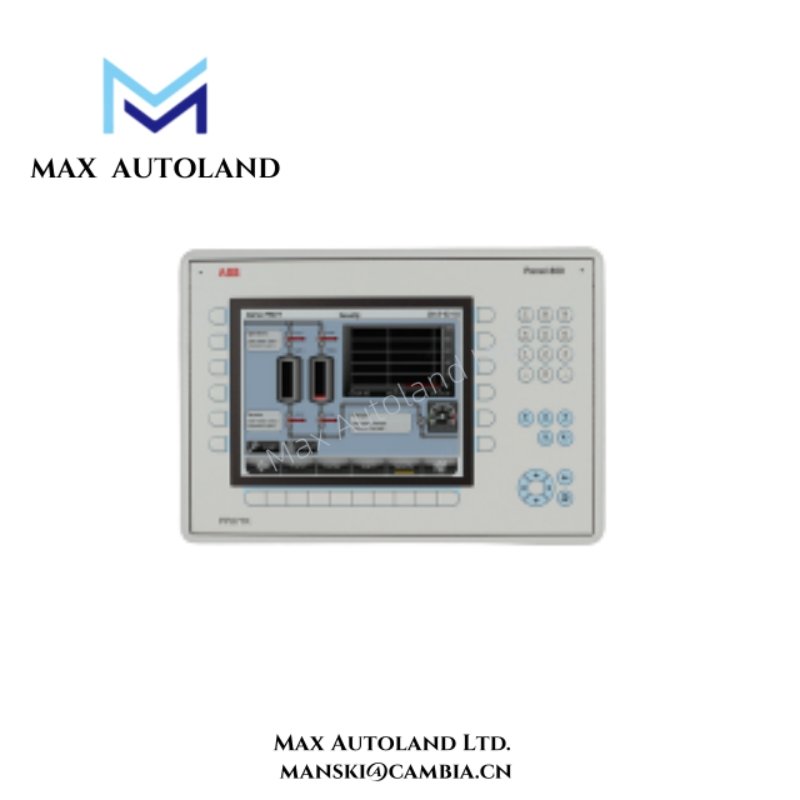

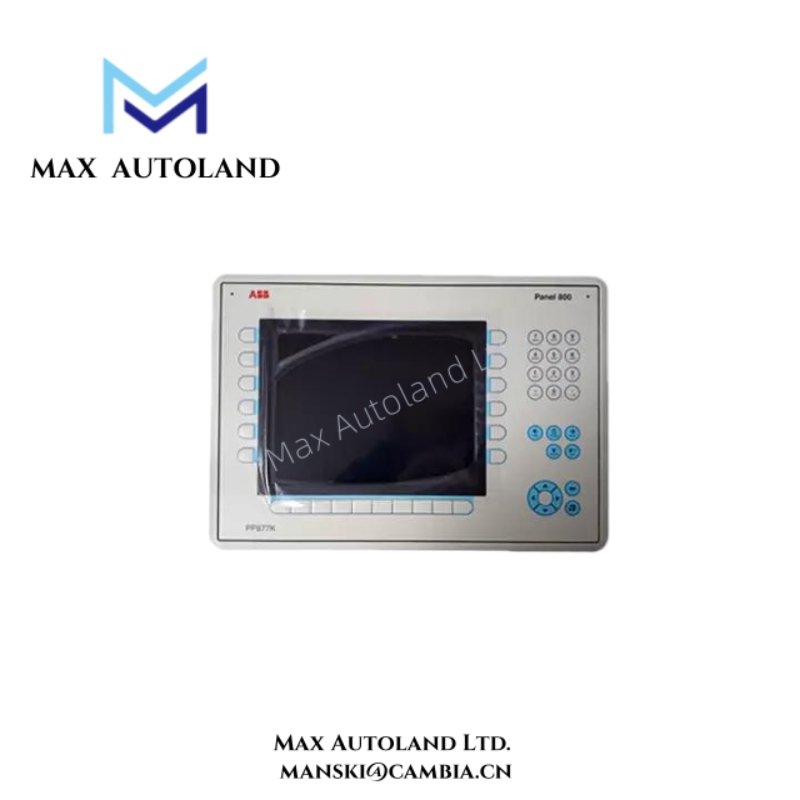

Overview
Specification
| Parameter | Specification |
|---|---|
| Model Number | 3BSE069274R1 |
| Panel Type | PP877K Key Panel |
| Display Size | 10.4″ TFT-LCD |
| Display Resolution | 640 × 480 (4:3) |
| Display Colors | 64k LED backlight |
| Brightness | 450 cd/m² |
| Viewing Angle (H/V) | 160° / 140° |
| Dimming | Yes |
| Interaction Type | Key interface, 1 million key press operations |
| Processor | ARM9 400 MHz |
| Main Memory | 128 MB DDR2 |
| Application Memory | 80 MB |
| External Storage | 1 × SD card slot (supports SDHC) |
| Real-Time Clock | Yes |
| Ethernet | 1 × 10/100 Base-T (shielded RJ45) |
| USB | 1 × USB 2.0, max. 200 mA |
| Serial Ports | 2 combined ports: 2 × RS232, 2 × RS422/485 |
| Dimensions (W×H×D) | 410 × 286 × 83 mm |
| Cut-Out Dimensions (W×H) | 394 × 270 mm |
| Mounting Depth | 76 mm (total 176 mm including clearance) |
| Mounting | Panel mount and VESA 75 × 75 |
| Net Weight | 3.8 kg |
| Frame Material | Powder-coated aluminum, Polyester Autotex F150 |
| Power Supply | 24 VDC (18–32 VDC) |
| Power Consumption | 9.6 W |
| Protection (Front/Rear) | IP66 / IP20 |
| Operating Temperature | -10 to +60 °C |
| Relative Humidity | 5–85% non-condensing |
| Storage Temperature | -20 to +70 °C |
| Vibration / Shock | 0.7 G / 10 G |
| Certifications | CE, UL508, DNV, RoHS, WEEE |
FAQ
A: It uses a key interface capable of one million key presses, providing reliable operator control.Q: Which communication ports are available?
A: It includes Ethernet, USB 2.0, and two combined serial ports (RS232 and RS422/485).Q: Is the panel suitable for harsh industrial conditions?
A: Yes. Front panel protection is rated IP66, ensuring durability in demanding environments.
Q: Can the panel be mounted in standard cabinets?
A: Yes. It supports panel mount and VESA 75 × 75 mounting options.
Q: What is the operating temperature range?
A: The panel operates reliably between -10 °C and +60 °C.
