Overview

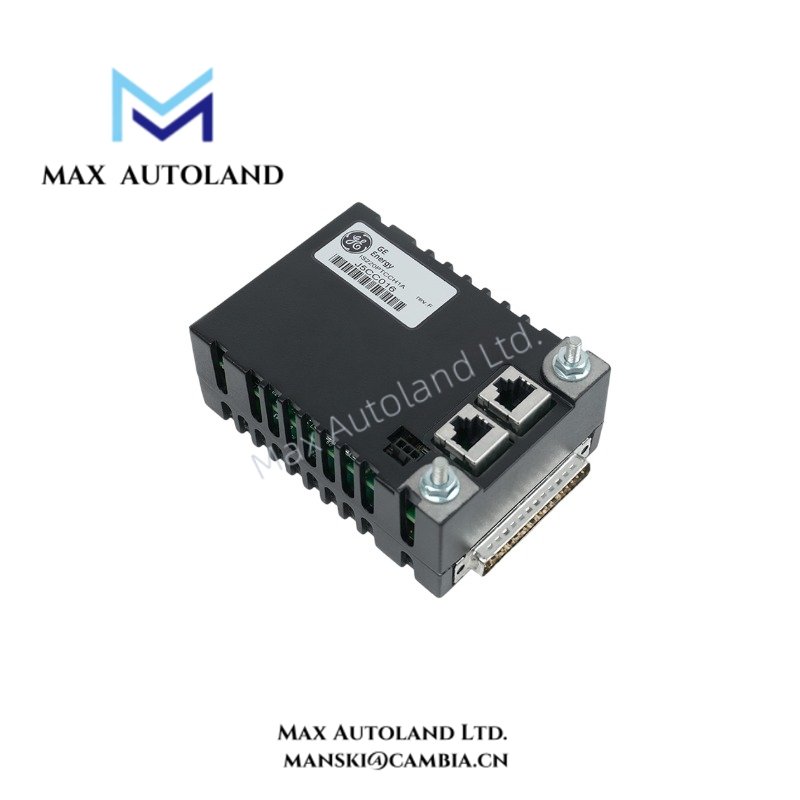

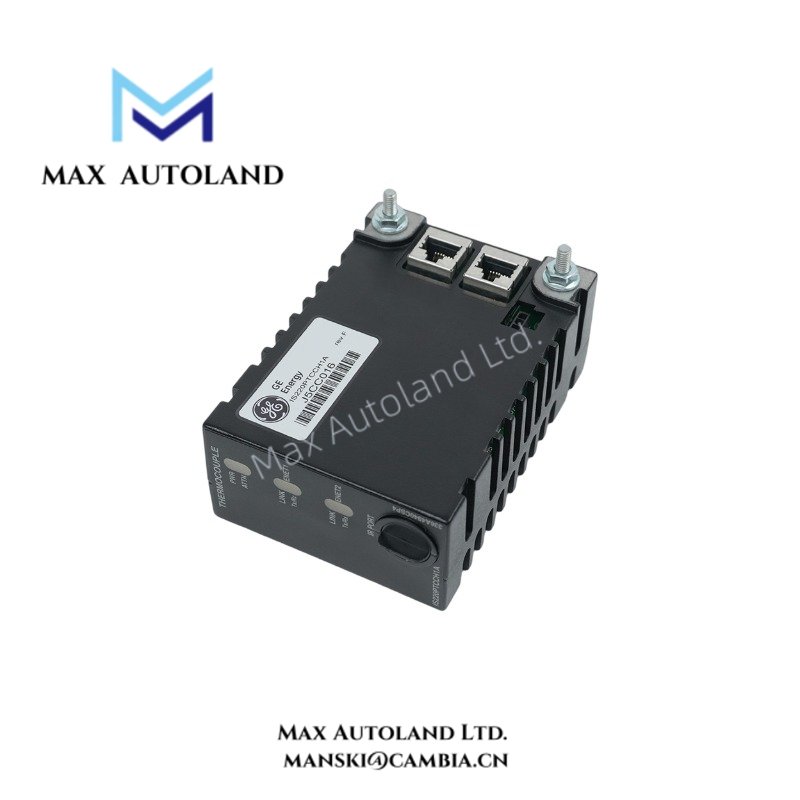

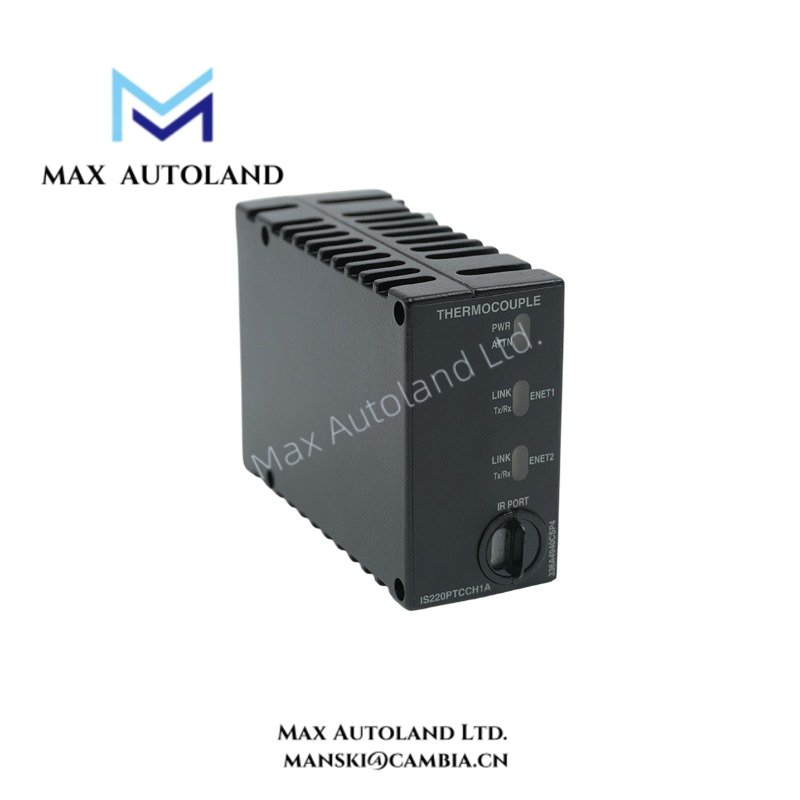

The GE IS220PTCCH1A, also cataloged as the IS220PTCCH1A Thermocouple Input Module, operates as a dedicated hardware component for thermocouple signal acquisition within GE Mark VI and Mark VIe turbine control system platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS220PTCCH1A |
| Brand | General Electric |
| Series | Mark VI / Mark VIe |
| Product Type | Thermocouple Input Module |
| Origin | USA |
| Weight | 0.35 kg |
| Dimensions | 6 x 12.8 x 8.3 cm |
| Operating Temp | -30 deg C to +65 deg C |
| Power Consumption | Not specified |
| Number of Channels | 12 thermocouple input channels |
| Input Span | -8 mV to +45 mV |
| A/D Converter | 16-bit |
| Common Mode Voltage | +5 V |
| Normal Mode Rejection | 250 mV |
| Microprocessor | AMD-K6 300 MHz |
| Supported Inputs | Thermocouple types E, J, K, S, T and mV inputs |
| Thermocouple Configuration | Grounded and ungrounded supported |
GE Industrial Control Signal Processing
The IS220PTCCH1A performs analog temperature signal conversion between thermocouple terminal boards and GE Mark VIe controllers. It receives low-level thermocouple millivolt signals, converts them through a 16-bit analog-to-digital converter, and transfers processed values through the I/O Ethernet network.
The module supports 12 thermocouple channels per I/O pack. Additionally, multiple IS220PTCCH1A packs can increase channel capacity for larger measurement configurations. In TMR applications, three I/O packs can participate in redundant signal processing arrangements.
GE Mark VIe systems use modular I/O architecture for distributed signal collection. Therefore, the IS220PTCCH1A supports I/O density scaling by adding configured input modules within the controller network structure.
The module also uses firmware flash compatibility management within the Mark VIe platform. As a result, configuration data and diagnostic functions remain aligned with the installed control system software.
Thermocouple Measurement and Signal Isolation
The IS220PTCCH1A supports thermocouple measurement ranges from -8 mV to +45 mV. It accepts multiple thermocouple types, including E, J, K, S, and T, while also supporting millivolt input measurement.
The module processes temperature feedback signals with common mode voltage handling and normal mode rejection characteristics. Furthermore, proper wiring practices help maintain signal accuracy by reducing electrical interference from nearby switching circuits.
Frequently Asked Questions
Q: How many thermocouple inputs does the IS220PTCCH1A provide?
A: The IS220PTCCH1A provides 12 thermocouple input channels per module.
Q: What thermocouple types are compatible with the IS220PTCCH1A?
A: The module supports E, J, K, S, and T thermocouple types, along with mV inputs within the -8 mV to +45 mV range.
Q: Can the IS220PTCCH1A operate in redundant Mark VIe configurations?
A: Yes. The module supports Mark VIe redundant architectures, including configurations using multiple I/O packs for increased availability.
Field Installation Guidelines
Install the IS220PTCCH1A according to GE Mark VIe cabinet wiring documentation and approved terminal board layouts.
Verify thermocouple polarity before connecting field wiring. Incorrect polarity can cause reversed temperature indications or incorrect signal processing.
Use shielded thermocouple cables where required by the installation design. Connect cable shields according to the cabinet grounding specification and avoid unnecessary ground loops.
Keep thermocouple wiring separated from high-voltage power cables and switching circuits. After installation, verify channel diagnostics, input scaling, and communication status through the Mark VIe engineering interface.
