Overview

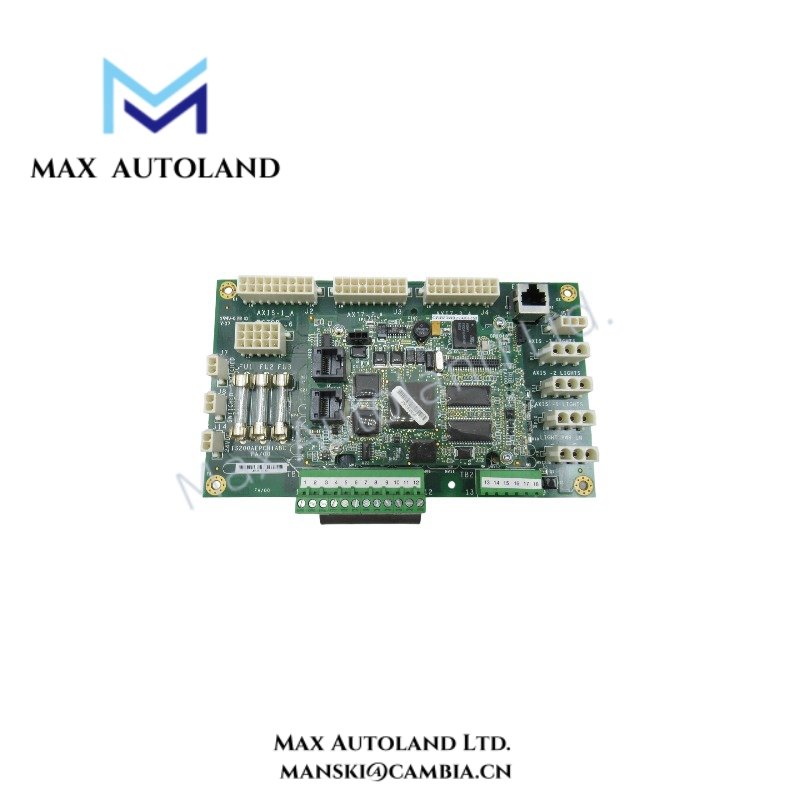

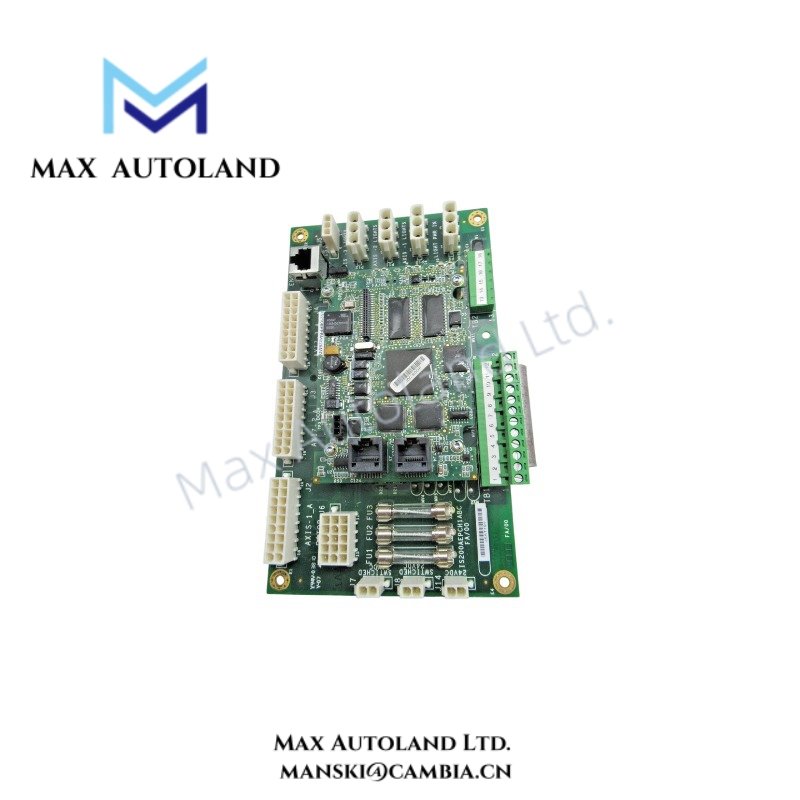

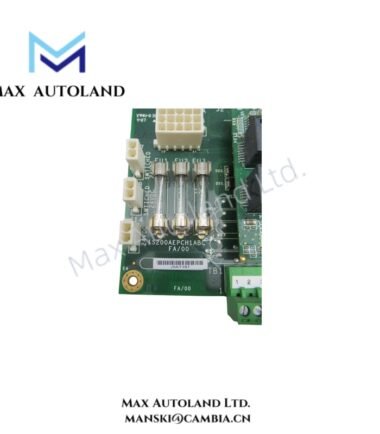

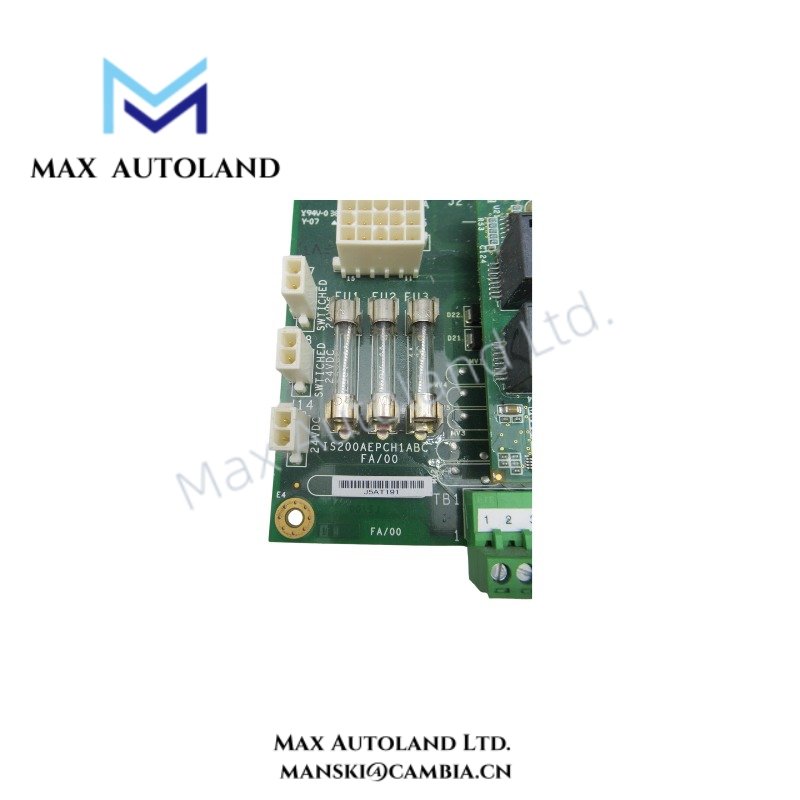

The GE IS210AEAAH3BKE, also cataloged as the IS210AEAAH3B Printed Circuit Board, operates as a dedicated hardware component for signal processing and electrical interface functions within the GE Mark VIe Wind control system.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS210AEAAH3BKE |
| Brand | General Electric |
| Origin | United States |
| Weight | 0.62 kg |
| Dimensions | 2 cm x 21 cm x 26.5 cm |
| Product Type | Printed Circuit Board |
| Series | Mark VIe Wind |
| Functional Acronym | AEPS |
| Functional Description | Printed circuit board assembly |
| PCB Protection | Conformal coating |
Industrial Control Hardware Interface Characteristics
The IS210AEAAH3BKE belongs to the GE Mark VIe Wind hardware platform and provides a conformally coated PCB assembly for control system integration. The board supports electrical signal routing and hardware execution functions inside the turbine control architecture.
Furthermore, GE industrial control assemblies use defined backplane communication structures and firmware compatibility rules to maintain module coordination. The AEPS board design supports integration with Mark VIe Wind system hardware through standardized electrical interfaces.
The conformal coating protects the PCB surface from environmental contaminants and supports operation in industrial enclosure conditions. Therefore, installation requires proper grounding, connector alignment, and protection from excessive moisture or conductive debris.
Frequently Asked Questions
Q: Is the IS210AEAAH3BKE a standalone controller module?
A: No. The IS210AEAAH3BKE is a printed circuit board assembly designed as part of the Mark VIe Wind control hardware platform. It performs dedicated board-level electrical functions rather than acting as an independent CPU controller.
Q: Does the IS210AEAAH3BKE support hot-swap replacement?
A: The available technical data does not specify hot-swap capability. Replacement procedures should follow GE Mark VIe Wind cabinet isolation and maintenance requirements.
Q: What protection feature does the IS210AEAAH3BKE PCB include?
A: The board includes conformal coating, which provides a protective layer over electronic components and PCB surfaces.
Field Installation Guidelines
- Verify the module identification label before installation to confirm the IS210AEAAH3BKE part number.
- Disconnect cabinet power before removing or installing the PCB assembly.
- Inspect connector pins and mating surfaces for contamination or mechanical damage.
- Install the board according to the Mark VIe Wind cabinet mechanical positioning requirements.
- Maintain proper grounding practices to reduce electrical noise and signal interference.
- Avoid touching exposed PCB components during handling to prevent electrostatic discharge damage.
- Confirm all wiring and connector positions before restoring system power.
