Overview

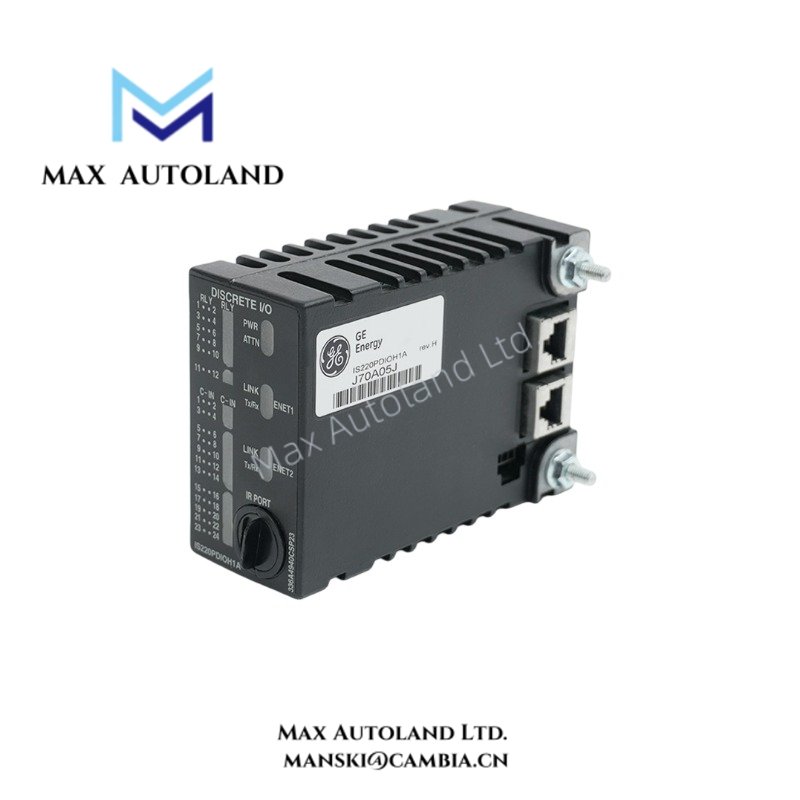

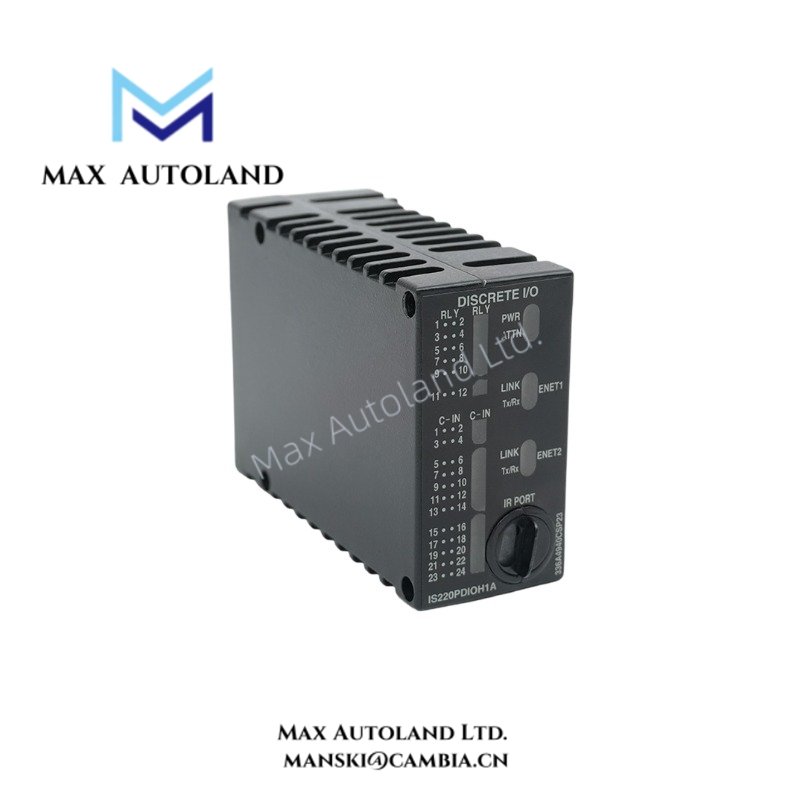

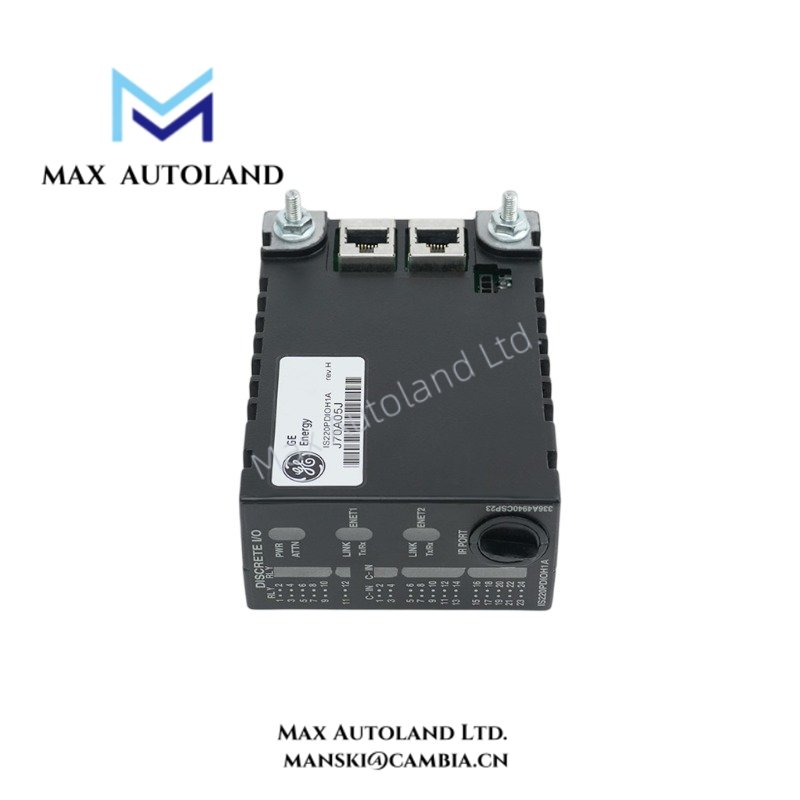

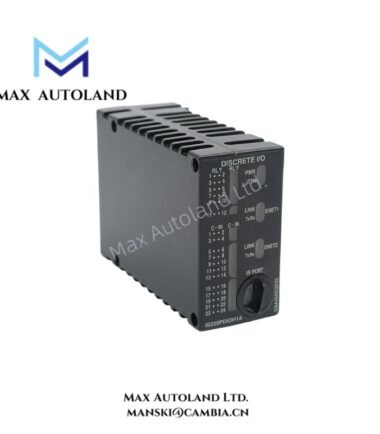

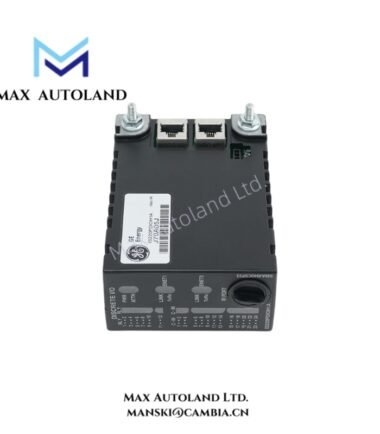

Configured for discrete signal acquisition and relay output execution in the GE Mark VIe turbine control system, the GE IS220PDIOH1A (IS220PDIOH1A Discrete I/O Pack) provides direct physical and electrical interface processing for digital input and relay command circuits.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS220PDIOH1A |
| Brand | General Electric |
| Series | Mark VIe |
| Product Type | Discrete I/O Pack |
| Origin | USA |
| Weight | 0.35 kg |
| Dimensions | 6 x 12.8 x 8.3 cm |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | Not specified |
| Input Channels | 24 digital inputs |
| Relay Command Channels | 12 channels |
| Relay Contact Type | Form C |
| Input Voltage Range | 5 VDC / 24 VDC |
| Output Voltage Range | 5 VDC to 250 VAC |
| Input Isolation | 1500 V |
| Response Time | < 5 ms |
GE Industrial Control I/O Architecture
The IS220PDIOH1A operates as an I/O interface component within the GE Mark VIe control architecture. It processes discrete field signals and provides relay command outputs through dedicated electrical channels.
The module supports 24 digital input channels and 12 Form C relay output channels. Therefore, it can manage both status monitoring signals and command execution circuits within turbine control panels.
GE Mark VIe platforms use distributed I/O processing to reduce controller loading and improve signal handling efficiency. The IS220PDIOH1A integrates firmware-controlled I/O functions with the Mark VIe communication structure for coordinated control operations.
The GE control platform supports I/O density scaling through modular networked architecture. Consequently, system designers can configure additional I/O packs according to application channel requirements without changing the main controller hardware.
Firmware and Communication Compatibility
The IS220PDIOH1A uses GE Mark VIe firmware compatibility management for distributed I/O operation. The module communicates with the control system through the Mark VIe network architecture and exchanges digital status and command information.
The I/O pack design supports deterministic industrial control data exchange. Additionally, firmware flash compatibility allows controlled updates when supported by the installed Mark VIe software configuration.
Frequently Asked Questions
Q: What type of signals does the IS220PDIOH1A process?
A: The IS220PDIOH1A processes discrete input signals and relay output commands. It provides 24 digital input channels and 12 Form C relay command channels.
Q: What is the electrical isolation capability of the IS220PDIOH1A?
A: The module provides 1500 V input isolation to separate field wiring circuits from internal electronic components.
Q: Can the IS220PDIOH1A replace IS220PDIOH1B directly?
A: The IS220PDIOH1A is identified as a previous version replaced by IS220PDIOH1B. Compatibility should be verified against the installed Mark VIe hardware and firmware configuration.
Field Installation Guidelines
Install the IS220PDIOH1A according to GE Mark VIe cabinet wiring requirements and approved control system drawings.
Verify terminal assignments before connecting field devices. Use appropriate separation between signal wiring and high-voltage power conductors to reduce electrical interference.
Connect grounding and shielding according to the cabinet grounding design. Avoid routing discrete signal cables parallel to high-current switching lines.
Before system operation, check input channel status, relay output response, and communication diagnostics through the Mark VIe engineering interface.
Confirm firmware compatibility and I/O configuration parameters before placing the module into service.
