Overview

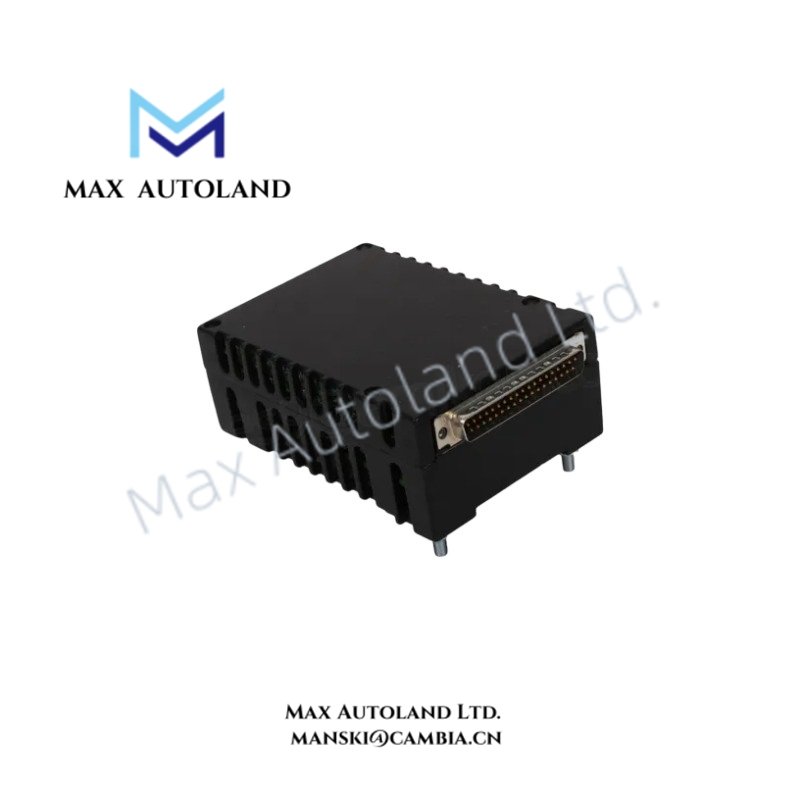

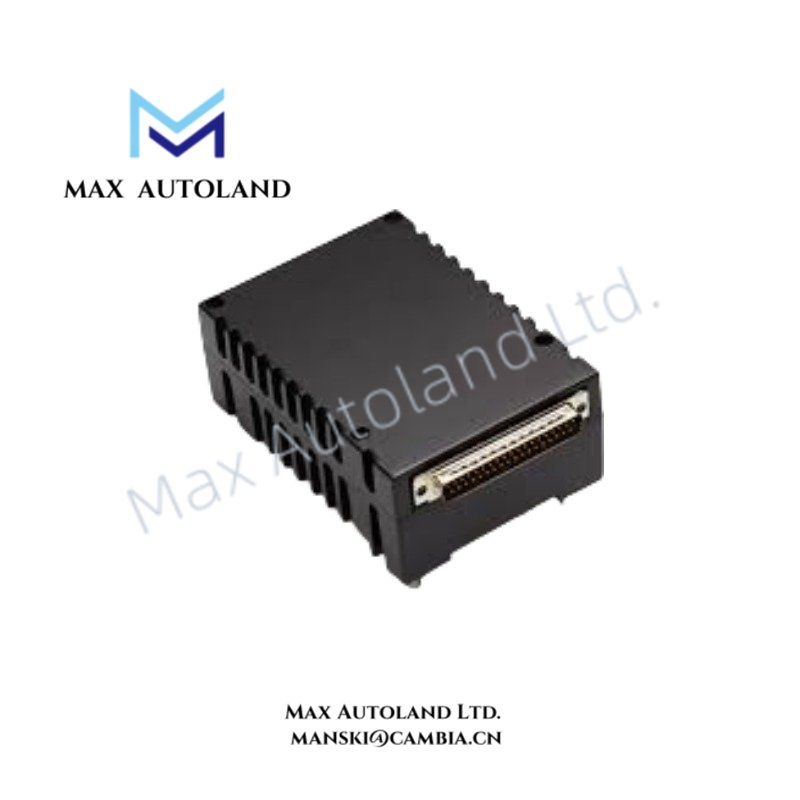

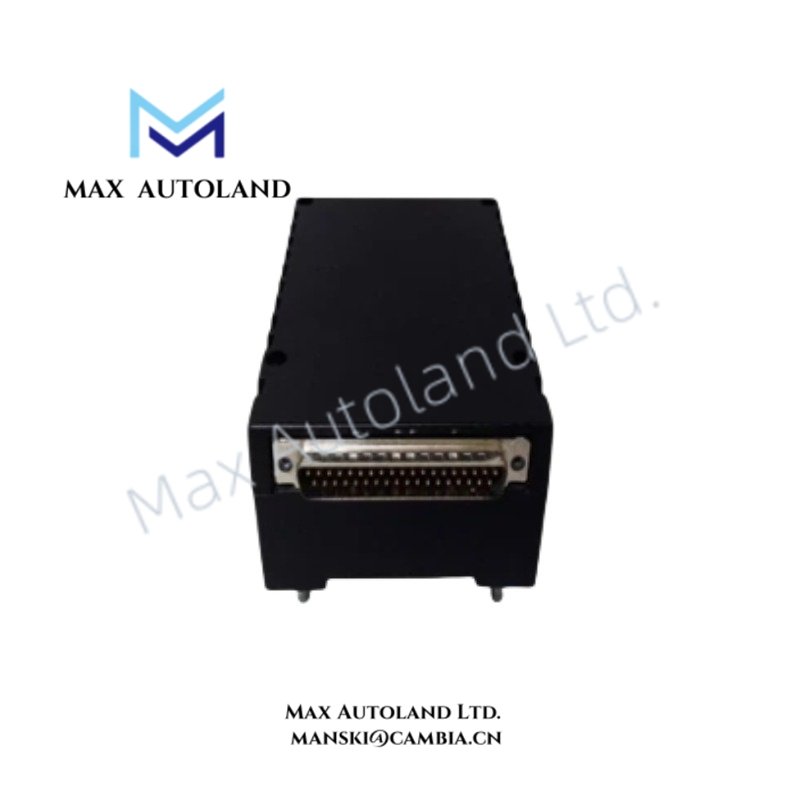

The GE IS220PDOAH1AJ, also cataloged as the IS220PDOA Discrete Output Pack, operates as a dedicated hardware component for discrete signal switching and output execution within the GE Mark VIe control system network.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS220PDOAH1AJ |
| Brand | General Electric (GE) |
| Product Series | Mark VIe / Mark VIeS |
| Module Type | Discrete Output Pack (PDOA) |
| Origin | USA |
| Operating Temp | Industrial cabinet environment; exact range depends on system configuration |
| Power Consumption | Supplied through Mark VIe I/O interface; exact value depends on operating load |
| Processor | 32-bit microprocessor architecture for local processing and diagnostics |
| Output Interface | Discrete output channels connected through terminal board assemblies |
| Communication Interface | Dual Ethernet ports for simplex or redundant network configurations |
| Diagnostic Functions | Startup self-test, runtime monitoring, channel status diagnostics |
| Installation Method | Mark VIe distributed I/O mounting assembly |
GE Mark VIe Discrete Output Execution and Network Communication
The IS220PDOAH1AJ processes digital commands received from the Mark VIe controller and drives external discrete field devices through connected terminal boards. The module manages output channel states, monitors operational conditions, and reports diagnostic information through the Ethernet communication interface.
The GE Mark VIe platform uses deterministic Ethernet communication between controller modules and I/O packs. Therefore, the PDOA module supports distributed I/O architectures where output channel density and network configuration can be scaled according to application requirements.
The module also supports firmware flash compatibility within the Mark VIe hardware family. This allows maintenance personnel to manage firmware revisions according to approved system configurations without modifying the physical I/O wiring structure.
Frequently Asked Questions
Q: Does the IS220PDOAH1AJ support redundant Mark VIe configurations?
A: Yes. The module supports simplex and redundant I/O network arrangements when installed with compatible Mark VIe controller and terminal board configurations.
Q: Can the IS220PDOAH1AJ be replaced while the control system remains powered?
A: The module is designed for hot-swappable I/O replacement within supported Mark VIe cabinet configurations. Technicians must verify system procedures before removal.
Q: How does the module perform output diagnostics?
A: The PDOA pack executes internal diagnostic routines and provides LED status indications for power, communication, and module health conditions.
Field Installation Guidelines
- Install the IS220PDOAH1AJ inside an approved Mark VIe control cabinet with correct mechanical mounting and grounding arrangements.
- Verify terminal board compatibility before connecting field output wiring.
- Maintain separation between discrete signal cables and high-voltage power conductors to reduce electrical interference.
- Connect cable shields according to the cabinet grounding design and plant electrical standards.
- Confirm Ethernet cable routing, connector seating, and network redundancy configuration before system startup.
- Apply firmware versions that match the approved Mark VIe system configuration.
- Perform output channel verification after installation to confirm correct field device operation.
