Overview

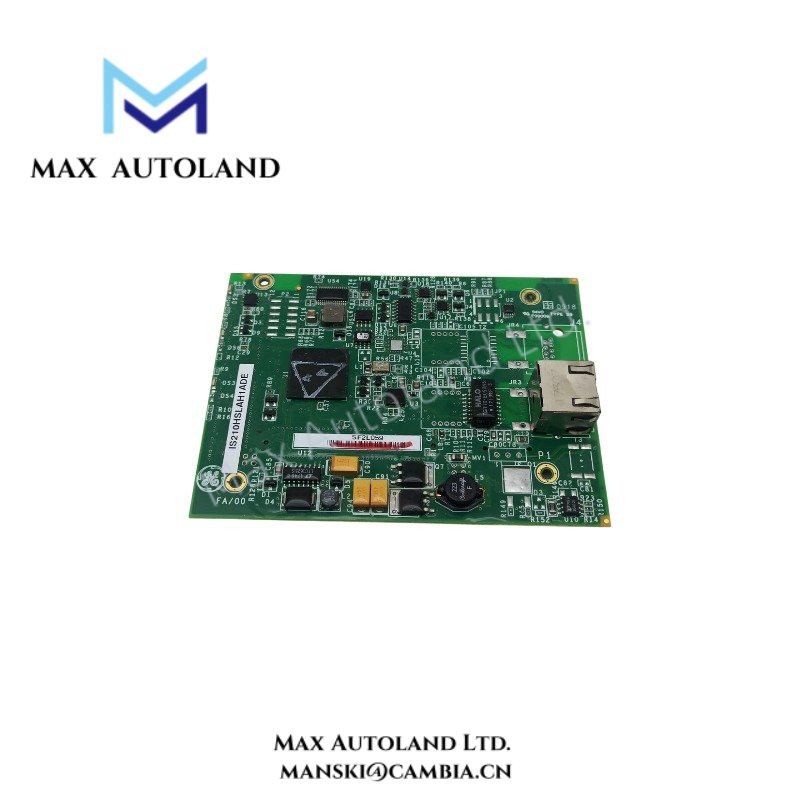

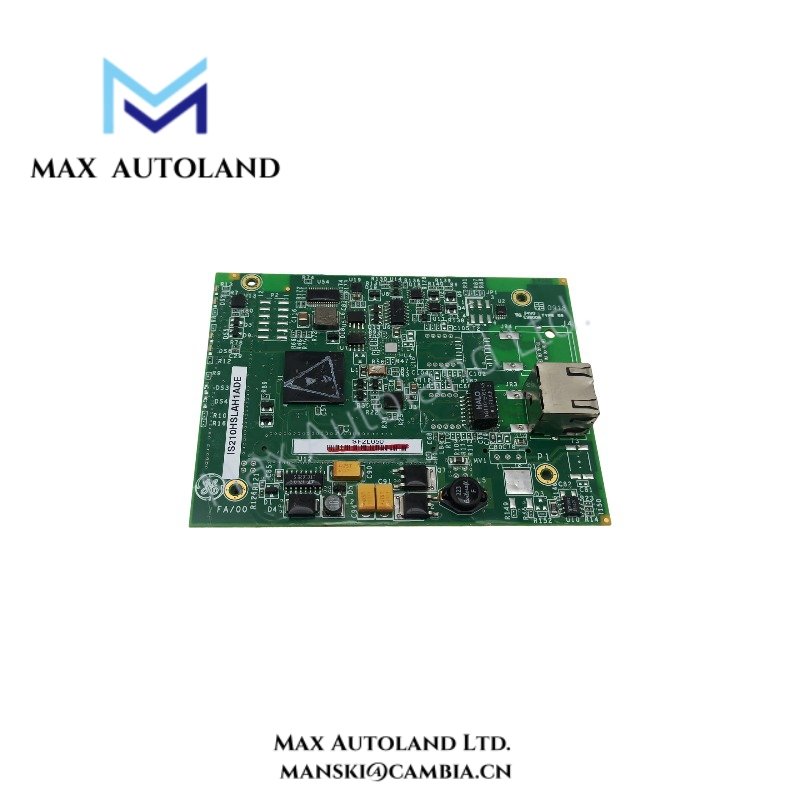

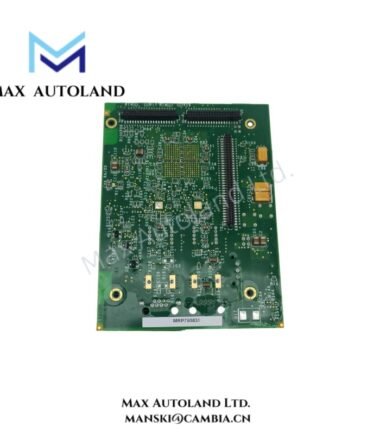

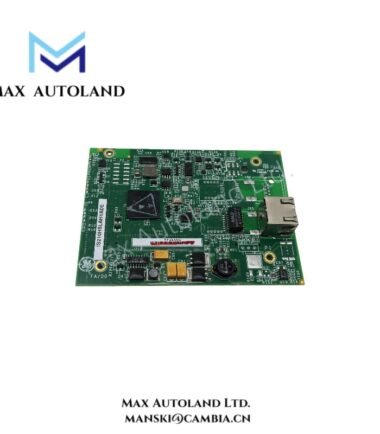

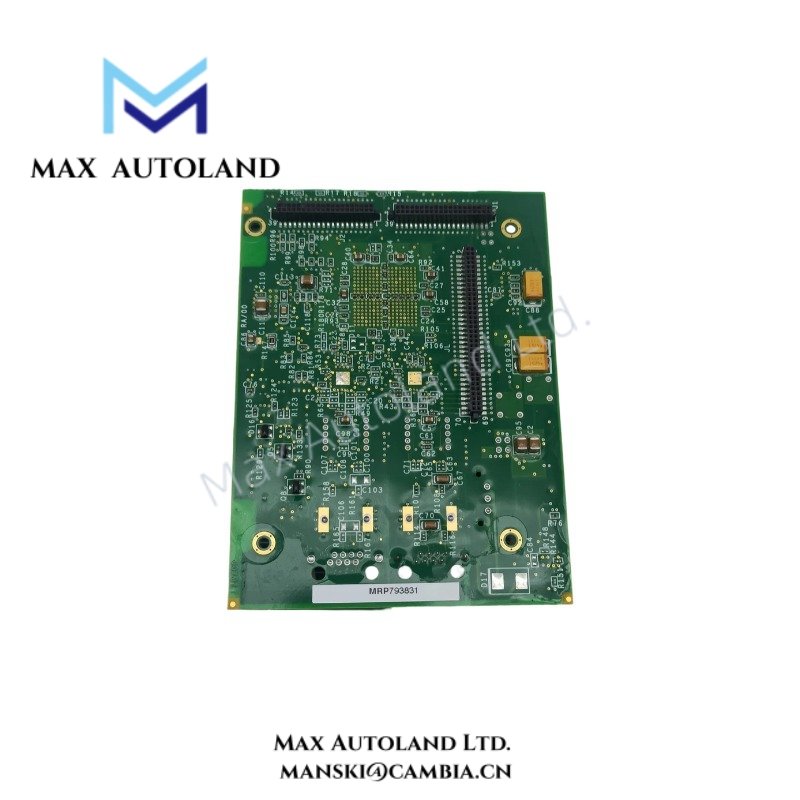

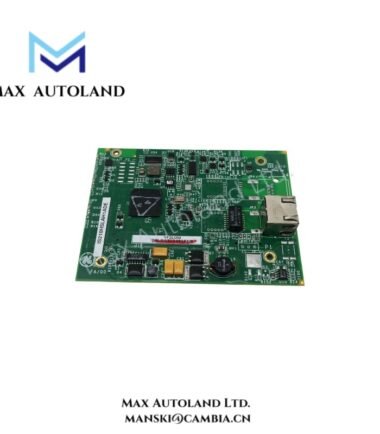

The GE IS210HSLAH1A, also cataloged as the IS210HSLAH1A High-Speed Serial Link Interface Module, operates as a dedicated hardware component for serial communication data exchange within the GE Mark VI Speedtronic control system. The module provides electrical interface functions between control system nodes and serial communication channels.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS210HSLAH1A |
| Brand | General Electric (GE) |
| Product Type | High-Speed Serial Link Interface Module |
| Product Series | Mark VI Speedtronic / IS210 Series |
| Functional Acronym | HSLA (High-Speed Serial Link Interface) |
| Origin | USA |
| Operating Temp | Industrial operating range; exact value not specified |
| Power Consumption | Backplane supplied; exact consumption value not specified |
| Mounting Style | GE Mark VI rack modular assembly |
| PCB Protection | Conformal coating for industrial environment protection |
| Communication Function | High-speed serial data interface and system node communication |
GE Mark VI Serial Communication Interface Characteristics
The GE IS210HSLAH1A uses the Mark VI Speedtronic hardware architecture to provide serial communication functions between control modules. The board manages high-speed data transfer paths and supports deterministic communication behavior required by turbine control applications.
Furthermore, the module follows GE industrial control design practices, including backplane bus communication velocity management, firmware flash compatibility considerations, and modular hardware integration within Mark VI racks.
The HSLA interface supports signal routing between system components while maintaining electrical separation between communication paths. Therefore, installation requires correct rack placement, connector alignment, and approved grounding practices to maintain signal integrity.
Frequently Asked Questions
Q: Does the IS210HSLAH1A support hot-swapping during system operation?
A: The IS210HSLAH1A is designed for Mark VI rack installation. Hot-swap operation depends on the specific rack configuration, controller architecture, and GE system procedures.
Q: What installation factors affect serial communication performance?
A: Proper connector seating, shielded cable routing, grounding practices, and separation from high-noise power wiring affect communication signal quality.
Q: Is firmware compatibility required when replacing an IS210HSLAH1A module?
A: Yes. The replacement module must match the configured Mark VI hardware revision and system firmware requirements before integration.
Field Installation Guidelines
- Install the module only in the designated GE Mark VI rack slot specified by the system configuration.
- Verify the backplane connector condition before insertion to prevent contact damage.
- Maintain proper grounding between rack assemblies and cabinet earth points.
- Route serial communication wiring separately from high-voltage switching cables.
- Confirm connector locking mechanisms after module installation.
- Inspect conformal coating condition before field deployment in harsh environments.
- Follow GE Mark VI maintenance procedures for module replacement and system verification.
