Overview

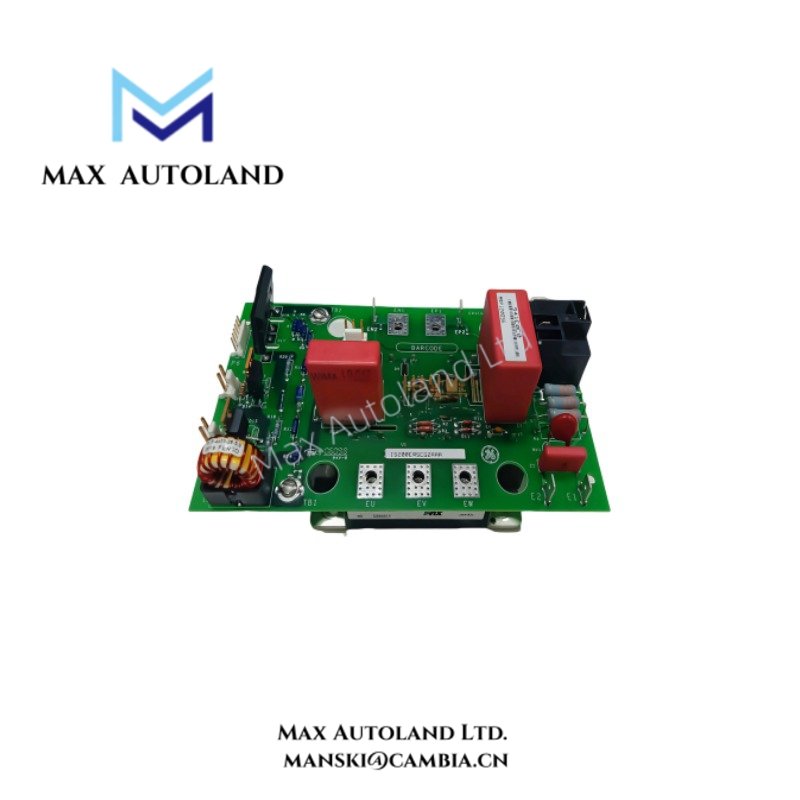

Configured for PWM DC output current generation and field discharge control in the GE EX2100 excitation control system, the GE IS200ERSCG2A (IS200ERSCG2A Exciter Regulator Static Converter Board) provides direct physical and electrical execution through integrated IGBT switching devices.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS200ERSCG2A |
| Brand | General Electric (GE) |
| Origin | USA |
| Product Type | Exciter Regulator Static Converter Board |
| Series | EX2100 Excitation Control System |
| Function | PWM DC output current generator and field discharge control |
| Switching Device | Integrated IGBT power devices |
| Communication Interface | Ethernet Modbus or serial communication through EX2100 system architecture |
| Configuration Support | Simplex and redundant excitation applications |
| Compatible Boards | ERIO, ERDD, ERRR, ERRB, ERBP interface boards |
| Power Consumption | Determined by EX2100 system configuration |
GE Industrial Control and Drive Hardware Integration
The IS200ERSCG2A operates as a static converter module within the GE EX2100 excitation platform. It generates controlled DC output current through pulse-width modulation techniques and regulates field excitation circuits through IGBT switching control.
Additionally, the board provides a field discharge function managed by the regulator logic. The integrated power switching structure enables controlled energy dissipation during excitation field discharge operations.
The module also includes a relay circuit for bypassing the DC-link charging resistor. Therefore, the converter supports controlled startup sequences and DC-link charging management in both simplex and redundant excitation arrangements.
GE EX2100 hardware platforms require coordinated backplane communication and board-level synchronization. The IS200ERSCG2A exchanges operating information with associated ER-series boards to maintain excitation regulator control functions.
Frequently Asked Questions
Q: What is the primary electrical function of the IS200ERSCG2A?
A: The IS200ERSCG2A generates regulated PWM DC output current for the EX2100 excitation system and controls field discharge through integrated IGBT switching devices.
Q: Can the IS200ERSCG2A operate in redundant excitation configurations?
A: Yes. The board supports simplex and redundant applications when installed with compatible EX2100 ER-series control boards.
Q: Which protection or switching components are integrated on the IS200ERSCG2A?
A: The board integrates IGBT power switching devices and a relay circuit used for DC-link charging resistor bypass control.
Field Installation Guidelines
- Install the IS200ERSCG2A only within the specified GE EX2100 excitation control cabinet architecture.
- Verify connector alignment and mechanical seating before applying system power.
- Confirm DC power connections and grounding paths according to GE excitation system wiring documentation.
- Keep high-current DC conductors separated from low-level control and communication wiring to reduce electrical interference.
- Inspect IGBT cooling paths and cabinet airflow conditions before commissioning.
- Use proper electrostatic discharge protection when handling the circuit board.
- Verify communication links with associated ERIO, ERDD, ERRR, ERRB, and ERBP boards after installation.
