Overview

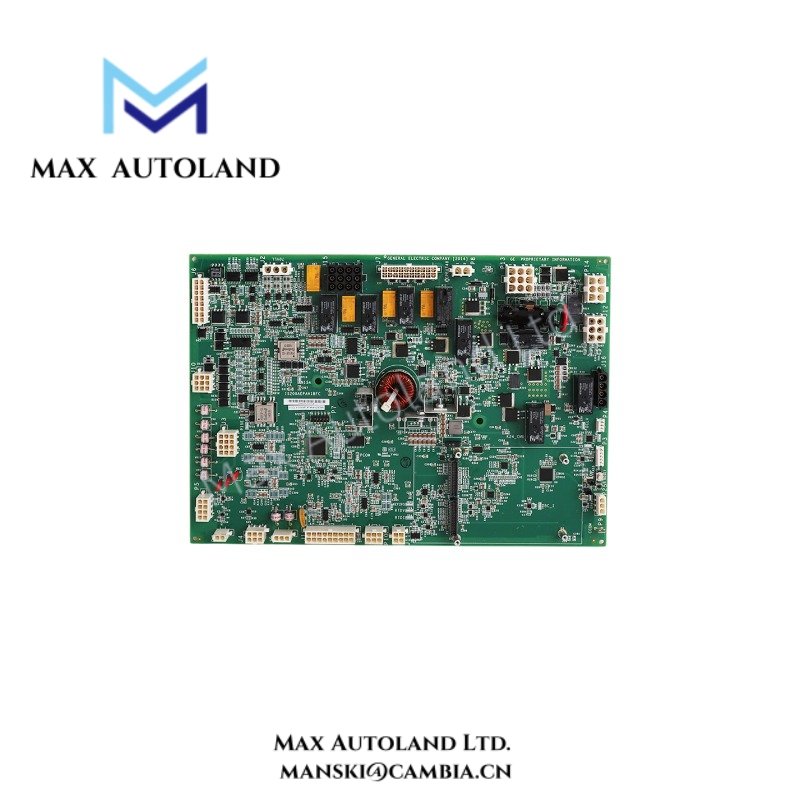

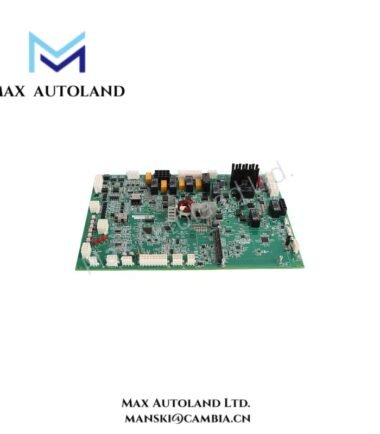

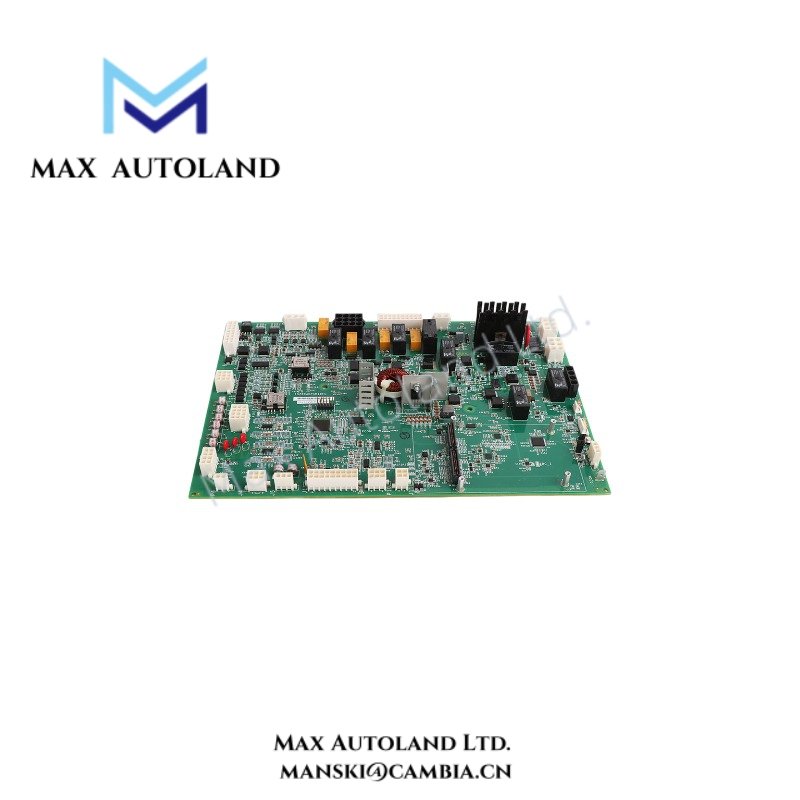

Configured for communication interface processing in the GE Mark VIe control platform, the GE IS215WEPAH2B (IS215WEPAH2B Printed Circuit Board) provides direct physical and electrical execution for control system signal exchange. The board integrates COM communication ports, Ethernet connectivity, and embedded hardware interfaces for turbine control applications.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS215WEPAH2B |
| Brand | General Electric (GE) |
| Product Type | Printed Circuit Board |
| Series | Mark VIe |
| Origin | USA |
| Weight | 0.85 kg |
| Dimensions | 33 x 22.8 x 5 cm (estimated shipping size) |
| Operating Temp | Not specified |
| Storage Temperature | -40 to +70 deg C |
| Power Consumption | Power Supply Rating: 125 VDC |
| Communication Ports | 3 COM ports: COM1 and micro-miniature 9-pin socket D connector |
| Ethernet Interface | 10BaseT / AUI connector |
| Software Frame Rates | 10 ms, 20 ms, and 40 ms |
| Relative Humidity | 10-95%, non-condensing |
| Shock Rating | Maximum 10G, non-operating |
| Female Plug Connectors | 2 |
| Metal Oxide Varistors | 4 |
| Manual Reference | GEP-9145 |
| Tariff Code | 8537101190 |
Industrial Control Communication and Firmware Compatibility
The IS215WEPAH2B operates within the GE Mark VIe hardware architecture and manages physical communication paths between control processors and connected field devices. The board supports Ethernet and serial communication interfaces, while software frame rate selections of 10 ms, 20 ms, and 40 ms provide configurable execution timing for control tasks.
Furthermore, GE Mark VIe platforms use structured firmware compatibility management to maintain communication consistency between hardware modules and application software. The PCB design supports backplane-based system integration and controlled data transfer within the turbine control network.
Frequently Asked Questions
Q: What communication interfaces are available on the IS215WEPAH2B?
A: The IS215WEPAH2B provides three COM communication interfaces, including COM1 and a micro-miniature 9-pin socket D connector. It also includes a 10BaseT/AUI Ethernet interface.
Q: What power input rating applies to the IS215WEPAH2B?
A: The board specifies a 125 VDC power supply rating for system integration. Actual system loading depends on the Mark VIe rack configuration and connected hardware.
Q: Does the IS215WEPAH2B support multiple control execution rates?
A: Yes. The board documentation specifies software frame rates of 10 ms, 20 ms, and 40 ms for configured control operations.
Field Installation Guidelines
- Install the IS215WEPAH2B according to GE Mark VIe rack installation procedures and approved hardware configurations.
- Verify connector alignment before inserting the PCB into the control rack to prevent mechanical damage.
- Maintain proper cable routing separation between communication wiring and high-voltage power conductors.
- Use appropriate grounding methods for rack assemblies and communication shields according to site electrical standards.
- Confirm environmental conditions remain within the specified storage and humidity limits before commissioning.
- Check communication port assignments and firmware compatibility before integrating the board into an operating control system.
