Overview

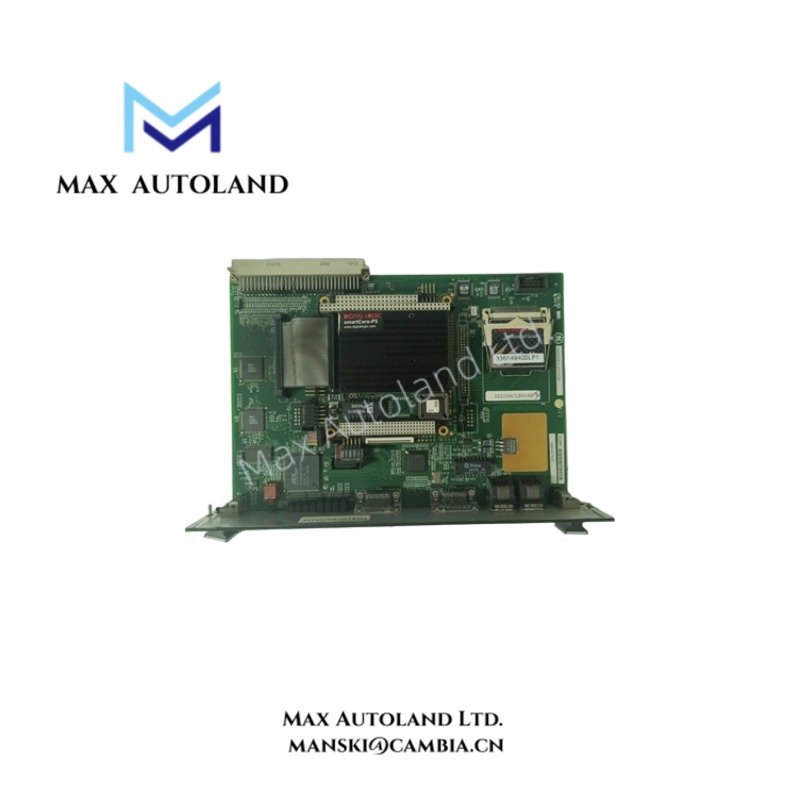

The GE IS215AEPAH1A, identified by the base model IS215AEPAH1A, is described in the supplied documentation as an Analog Excitation and Protection Processor for GE Mark VI and Mark VIe control systems. Its stated role involves excitation regulation, signal acquisition, system diagnostics, and protection processing. Specific processor architecture, electrical ratings, communication interfaces, and protection functions require confirmation against the applicable GE hardware documentation.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS215AEPAH1A |
| Brand | General Electric (GE) |
| Series | Mark VI / Mark VIe (as stated in supplied information; verification required) |
| Product Type | Analog Excitation and Protection Processor |
| Primary Function | Excitation control and protection processing |
| Processor Architecture | Not independently verified |
| I/O Integration | Interface details not verified |
| Communication Interface | Not specified |
| Diagnostic Support | System status and fault reporting; implementation not verified |
Excitation Control and Protection Processing
Excitation control hardware processes generator feedback signals and control commands associated with field regulation. Depending on the installed system architecture, these functions may include voltage regulation, excitation monitoring, and protective interlocks.
The supplied description attributes these functions to the IS215AEPAH1A. However, the specific signal channels, protection algorithms, execution rates, and terminal assignments have not been established from the provided information.
For hardware identification, confirm the board’s assembly number, revision, connector layout, and compatibility with the target excitation system before replacement.
Frequently Asked Questions (FAQ)
Q: Is the IS215AEPAH1A compatible with both Mark VI and Mark VIe systems?
A: Compatibility with both platforms has not been independently verified. Confirm the assembly number and revision against the applicable GE system documentation before installation.
Q: What are the operating temperature and power consumption ratings?
A: The supplied information does not establish either rating. Obtain the applicable hardware specification or installation manual before determining cabinet thermal requirements or power supply loading.
Q: Can the board be replaced while the control system is energized?
A: Hot-swap capability has not been established. Follow the equipment-specific maintenance procedure and isolate power where required before removing or installing the board.
Field Installation Guidelines
- Verify hardware identity: Compare the complete model number, assembly revision, connector arrangement, and equipment bill of materials before installation.
- Check chassis compatibility: Confirm the specified rack position, mechanical interface, and backplane connection using the applicable GE installation documentation.
- Inspect electrical connections: Check connectors, cable condition, and contact surfaces for damage before mating the board.
- Maintain signal separation: Route low-level feedback wiring separately from high-current excitation conductors where the cabinet design requires it.
- Apply grounding requirements: Follow the manufacturer’s grounding and shielding instructions. Do not assume that every signal shield should be bonded at both ends.
- Verify power requirements: Confirm supply voltage, connector pin assignments, and current demand before energizing the assembly.
- Perform commissioning checks: Review controller diagnostics and system status after installation. Verify signal scaling, feedback polarity, and protection settings against approved configuration records.
