Overview

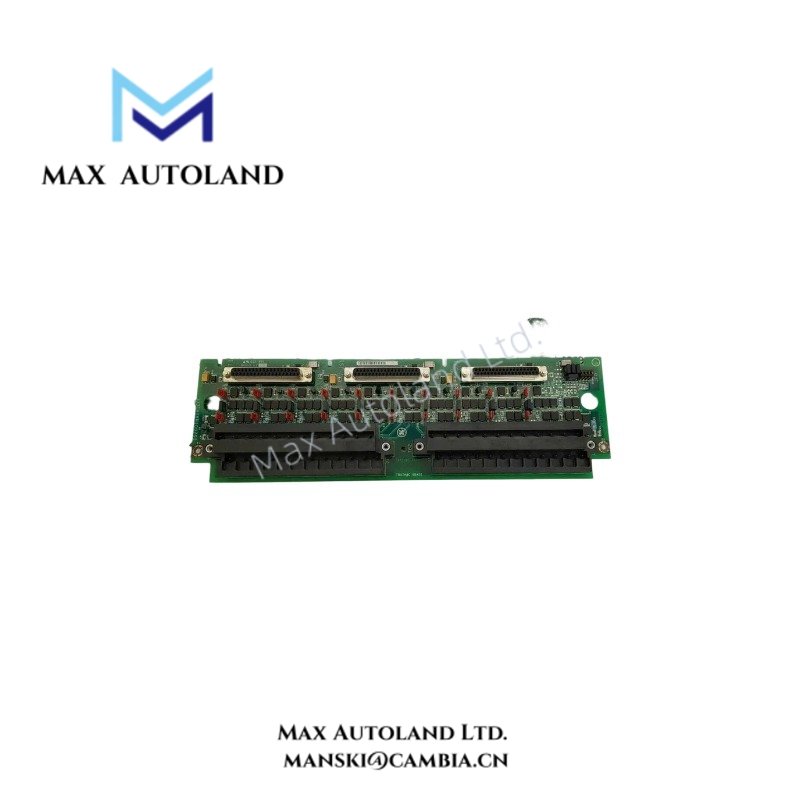

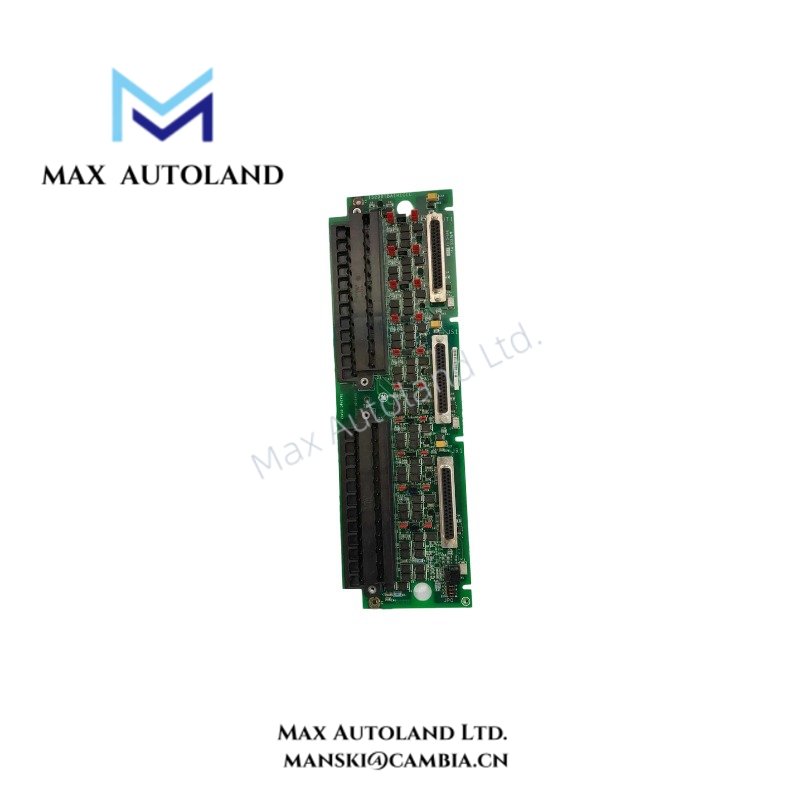

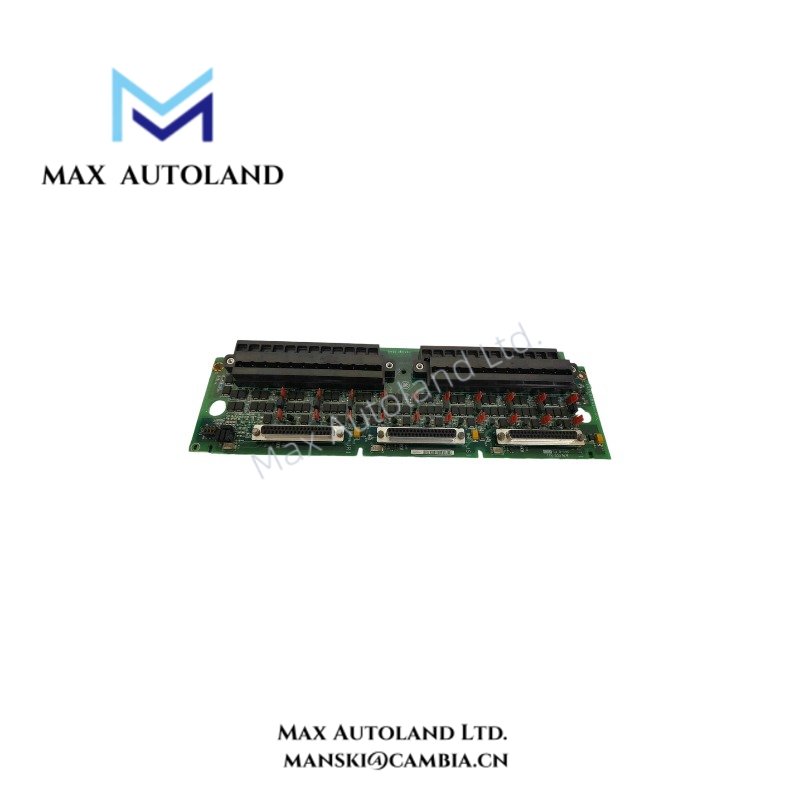

The GE IS200TBAIH1C, also cataloged as the IS200TBAIH1C Analog Input Terminal Board, provides direct physical signal termination and analog input routing within the GE Mark VI turbine control system platform.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS200TBAIH1C |
| Brand | General Electric |
| Series | Mark VI |
| Product Type | Analog Input Terminal Board |
| Origin | USA |
| Weight | 0.3 kg |
| Dimensions | 33 x 10 x 2.5 cm (estimated shipping size) |
| Operating Temp | 0 deg C to +55 deg C |
| Storage Temp | -30 deg C to +70 deg C |
| Power Consumption | Supplied through Mark VI control system interface |
| Input Voltage Range | +/-5 V, +/-10 V |
| Signal Resolution | 16-bit ADC |
| Accuracy | +/-0.1 % of span |
| Humidity | 5 % to 95 % RH non-condensing |
GE Mark VI Analog Signal Processing and I/O Integration
The IS200TBAIH1C terminal board interfaces field analog signals with the Mark VI control architecture through dedicated termination points and analog conversion paths. The board supports voltage input ranges of +/-5 V and +/-10 V, while the 16-bit ADC provides digital conversion for controller processing.
Furthermore, GE Mark VI I/O density scaling allows multiple analog channels to integrate into turbine monitoring and control configurations. The terminal design supports structured field wiring, signal separation, and controlled transmission between external devices and the Mark VI control rack.
The board architecture follows GE industrial control hardware practices, including backplane bus communication velocity management, firmware flash compatibility considerations, and deterministic I/O data exchange within the turbine control network.
Frequently Asked Questions
Q: What type of field signals does the IS200TBAIH1C accept?
A: The IS200TBAIH1C accepts analog voltage input signals within +/-5 V and +/-10 V ranges and transfers converted data to the Mark VI controller system.
Q: Does the IS200TBAIH1C perform analog-to-digital conversion?
A: Yes. The terminal board specification includes a 16-bit ADC resolution for analog signal conversion before controller processing.
Q: What environmental conditions apply to this terminal board?
A: The specified operating temperature range is 0 deg C to +55 deg C, with storage conditions from -30 deg C to +70 deg C and 5 % to 95 % RH non-condensing humidity.
Field Installation Guidelines
Install the IS200TBAIH1C inside the designated GE Mark VI control cabinet according to system hardware documentation. Before wiring, verify terminal identification and confirm that field signal polarity matches the configured analog input channel.
Use shielded signal cables for low-level analog circuits and connect cable shields according to the cabinet grounding design. Separate analog wiring from high-voltage power conductors to reduce electromagnetic interference.
Check terminal tightness, connector seating, and cable routing clearance before system energization. Verify analog input scaling and channel readings through the Mark VI engineering interface after installation.
