Overview

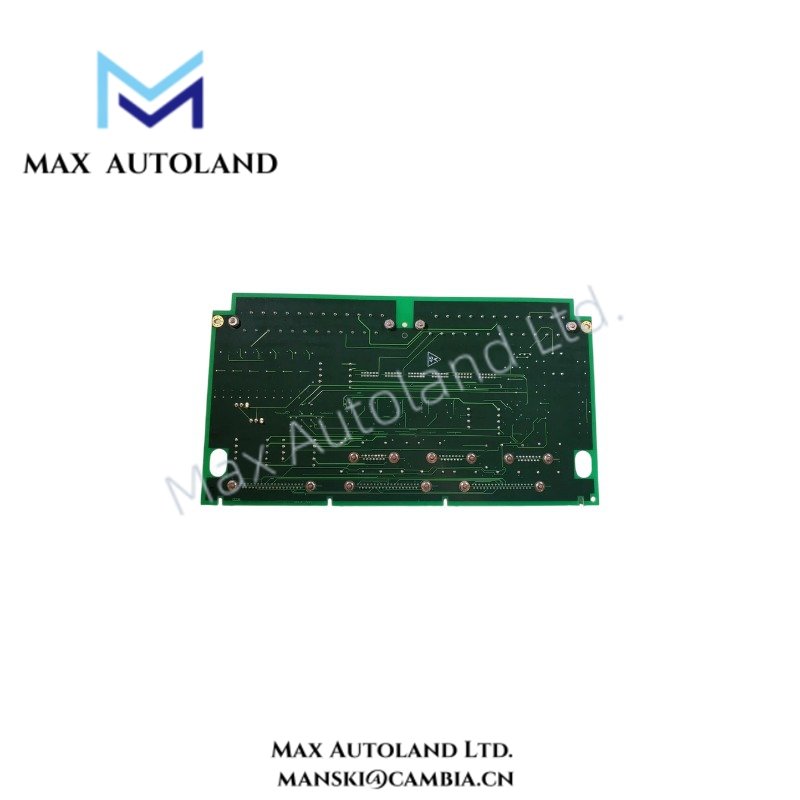

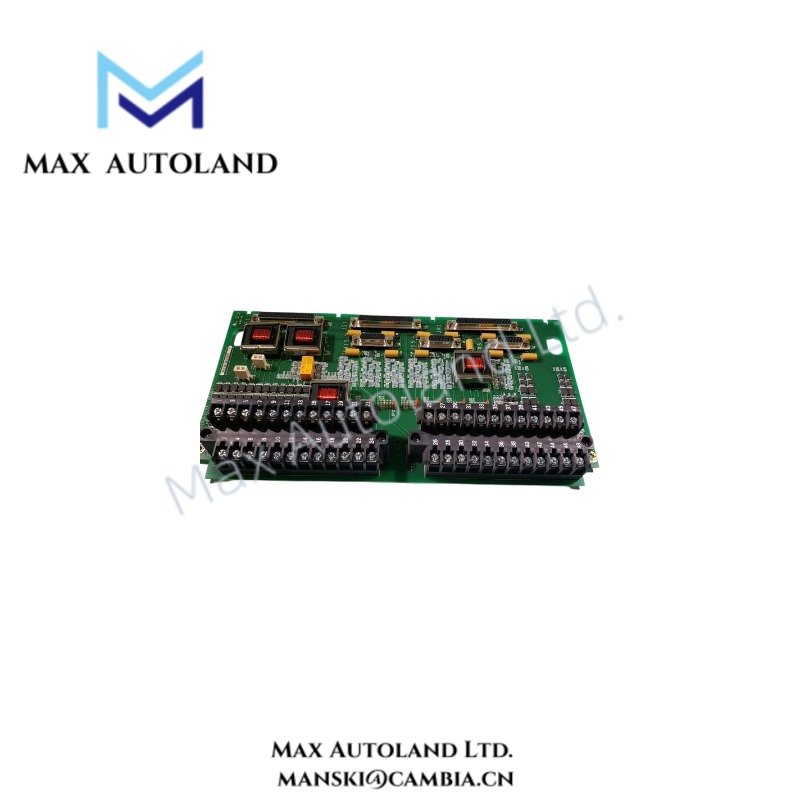

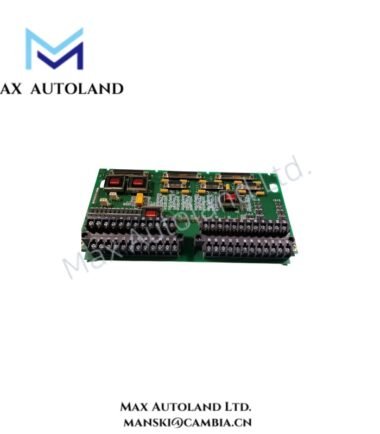

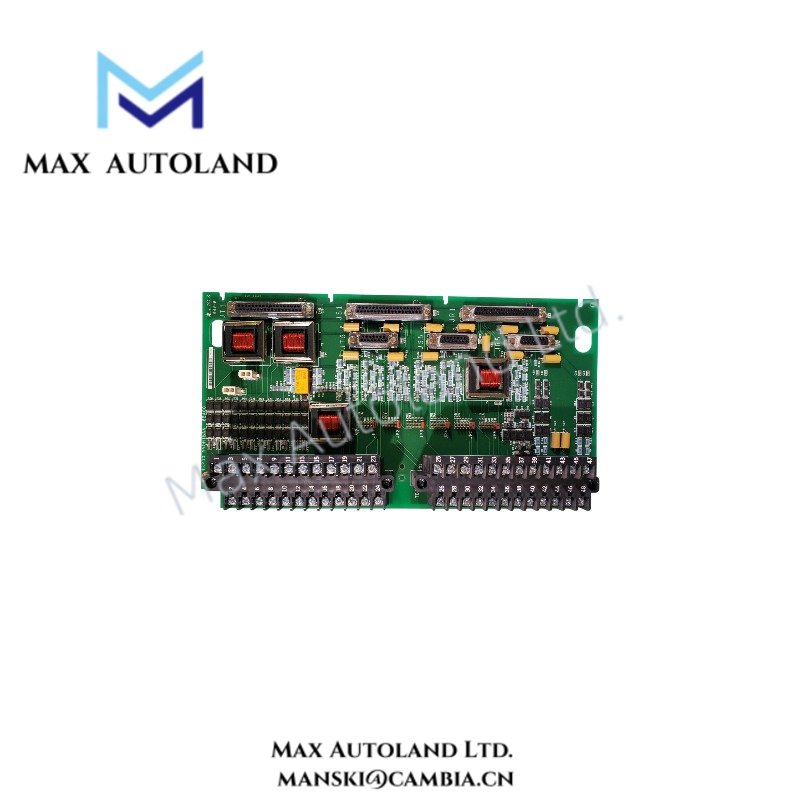

The GE IS200TSVOH1BBB, also cataloged as the IS200TSVOH1B Servo Terminal Board, provides physical termination and signal interfacing within the GE Mark VI SPEEDTRONIC control system. The board operates from +/-15 VDC, with typical power consumption below 3 W. Its specified isolation rating is 500 VDC, while its bandwidth is 250 Hz.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS200TSVOH1BBB |
| Base Model | IS200TSVOH1B |
| Brand | General Electric |
| Product Type | Servo Terminal Board |
| Series | Mark VI SPEEDTRONIC |
| Product Status | Discontinued by manufacturer |
| Origin | USA |
| Weight | 1.5 kg |
| Dimensions | 43.3 x 28 x 3.5 cm estimated shipping size |
| Power Supply | +/-15 VDC |
| Power Consumption | < 3 W typical |
| Isolation | 500 VDC |
| Bandwidth | 250 Hz |
| Operating Temp | -40 deg C to +85 deg C |
| Storage Temp | -55 deg C to +90 deg C |
| Tariff Code | 8537101190 |
| Place of Shipment | Xiamen, China |
GE Mark VI Servo Signal Interface
The IS200TSVOH1BBB functions as a termination board for the servo-related hardware interface in a GE Mark VI SPEEDTRONIC system. Therefore, installation should preserve the intended signal routing between the terminal board and associated control circuitry.
The board specifies a +/-15 VDC supply and less than 3 W typical consumption. In addition, the 500 VDC isolation specification defines the stated electrical separation capability. The 250 Hz bandwidth provides the specified signal-frequency operating range.
Because GE lists the assembly as discontinued, technicians should verify the exact board revision and system compatibility before installation. Furthermore, replacement work should maintain the original terminal assignments and field wiring configuration.
Frequently Asked Questions
Q: What is the primary function of the IS200TSVOH1BBB?
A: The IS200TSVOH1BBB is a Servo Terminal Board used in the GE Mark VI SPEEDTRONIC system for termination and signal interfacing.
Q: What power supply does the board require?
A: The specified power supply is +/-15 VDC, with typical power consumption below 3 W.
Q: What environmental limits apply to this board?
A: The specified operating temperature range is -40 deg C to +85 deg C. The storage range is -55 deg C to +90 deg C.
Field Installation Guidelines
- Verify the complete board identification, including the IS200TSVOH1BBB suffix, before installation.
- Remove system power before disconnecting or reconnecting field wiring.
- Confirm terminal assignments against the applicable GE Mark VI system documentation.
- Keep signal wiring separated from high-voltage and high-current conductors where the cabinet design permits.
- Maintain cable shielding and grounding practices specified by the control-system installation documentation.
- Inspect terminal connections for loose conductors, damaged insulation, contamination, or mechanical stress.
- Verify the +/-15 VDC supply before applying power to the installed board.
- After installation, check field signal continuity and verify that connected circuitry operates within the specified 250 Hz bandwidth.
- Do not substitute a different board revision without confirming system compatibility.
- Record the installed board model and revision for future maintenance documentation.
