Overview

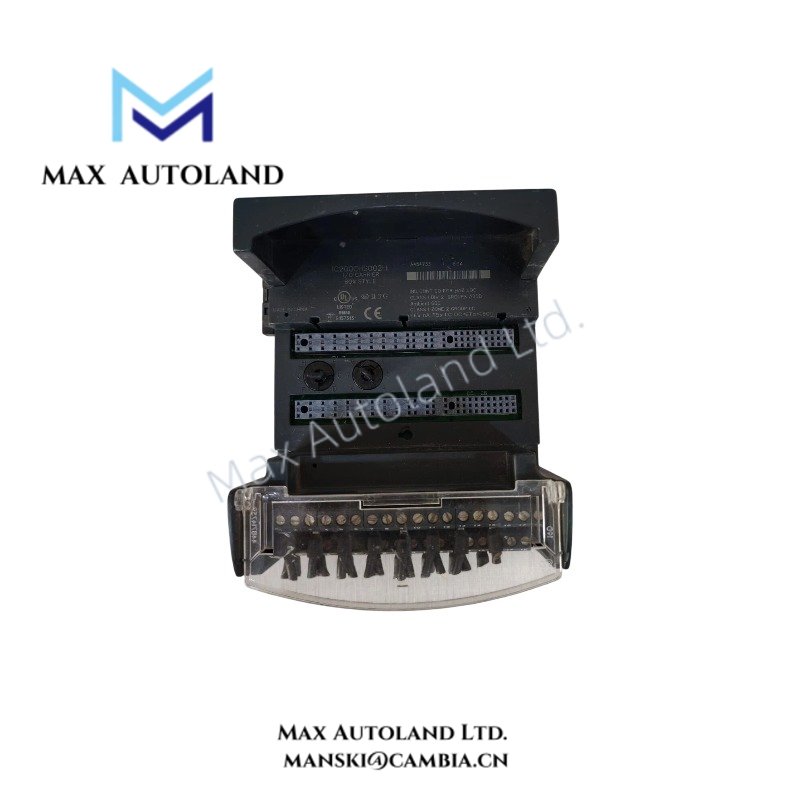

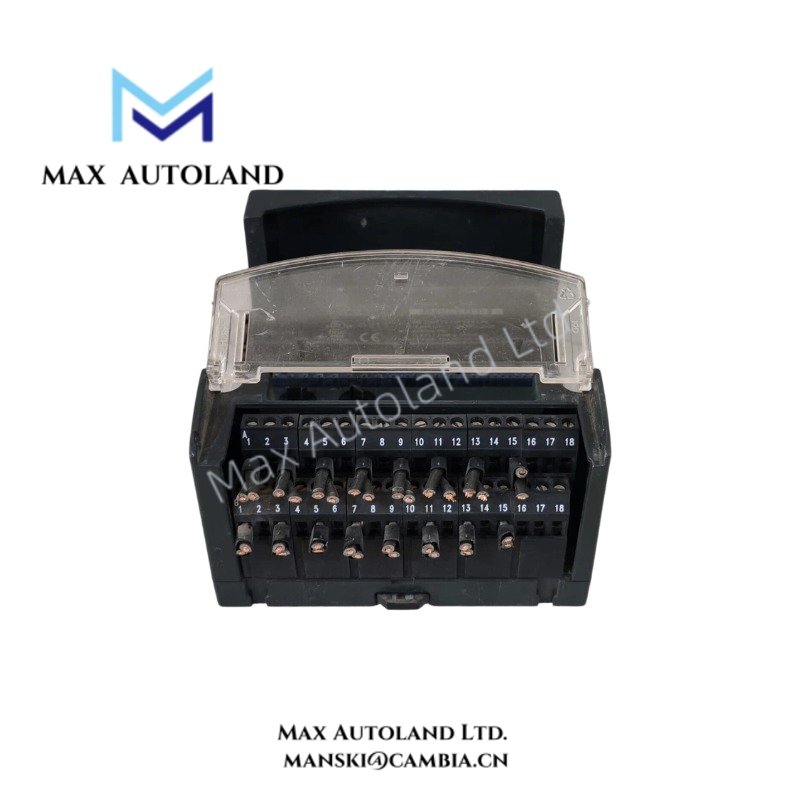

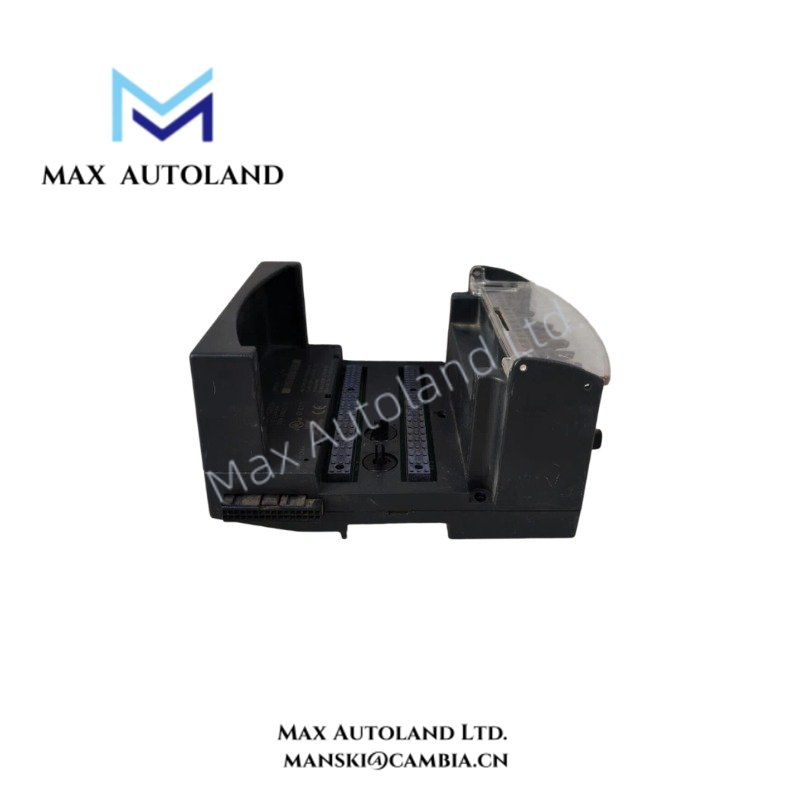

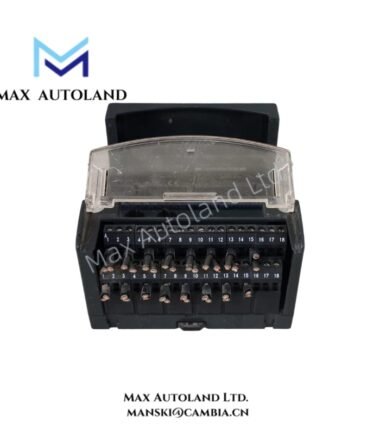

Configured for physical I/O module termination and field wiring in the VersaMax platform, the GE Fanuc IC200CHS002 (IC200CHS002 Compact I/O Carrier Module) provides direct electrical connection through its integrated 36-terminal box-style carrier. The carrier supports horizontal mounting and distributes field wiring across terminals A1-A18 and B1-B18.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC200CHS002 |
| Brand | GE Fanuc |
| Product Line | VersaMax |
| Product Description | Compact I/O Carrier Module |
| Carrier Module Style | Box style |
| Field Termination Type | Integrated |
| Number of Terminals | 36 |
| Terminal Identification | A1-A18 and B1-B18 |
| Mounting Orientation | Horizontal |
| Voltage Rating | 0-264 VAC |
| Current Rating per Point | 2 A |
| Current Rating per Power/Ground Segment | 8 A |
| Compatible Wire Size, Single Connection | AWG 14 to AWG 22 solid or stranded copper |
| Compatible Wire Size, Dual Connection | AWG 18 copper |
| Single Copper Wire Size | 2.1 mm2 to 0.36 mm2 |
| Dual Copper Wire Size | Up to 0.86 mm2 |
| Terminal Torque | 0.37 to 0.45 lb-ft |
| Weight | 1.06 lb (0.48 kg) |
VersaMax I/O Density and Backplane Integration
The IC200CHS002 forms the physical carrier and field termination interface for compatible VersaMax Compact I/O hardware. Its box-style construction integrates 36 field terminals into the carrier assembly, reducing the separation between module mounting and field wiring termination.
In addition, the terminal arrangement supports structured point-to-point wiring through two terminal groups, A1-A18 and B1-B18. Current loading must remain within the specified 2 A per point and 8 A per power or ground segment limits. I/O system expansion and module selection must therefore follow the electrical loading requirements of the installed VersaMax hardware.
Frequently Asked Questions
Q: How many field terminals does the IC200CHS002 provide?
A: The IC200CHS002 provides 36 integrated box-style terminals identified from A1 through A18 and B1 through B18.
Q: What wire sizes can be connected to the terminals?
A: Single wire connections accept solid or stranded copper conductors from AWG 14 to AWG 22. Dual wire connections in one terminal use AWG 18 copper conductors.
Q: What are the current limits of the carrier terminals?
A: The specified current rating is 2 A per point and 8 A per power or ground segment. Field wiring loads should remain within these limits.
Field Installation Guidelines
Mount the IC200CHS002 horizontally according to the mechanical arrangement of the VersaMax installation.
Verify that each field conductor matches the specified terminal wire size before termination. Use copper conductors and tighten terminal connections within the specified torque range.
Separate field wiring from high-noise power conductors where practical. Route control and signal conductors to minimize coupling from switching devices, motors, and other electrical noise sources.
When two conductors share a terminal for shorting or common connection, use the specified AWG 18 wire size. Verify point current and power or ground segment loading before energizing the I/O assembly.
