Overview

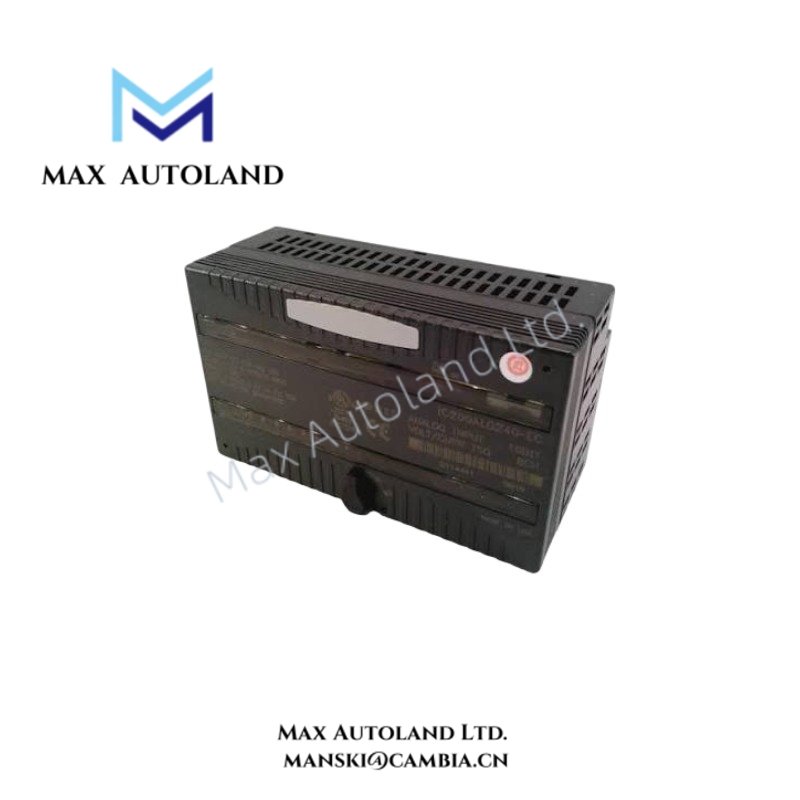

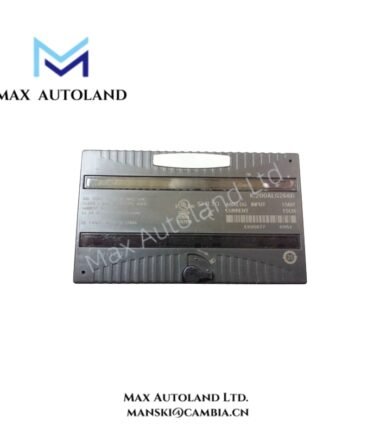

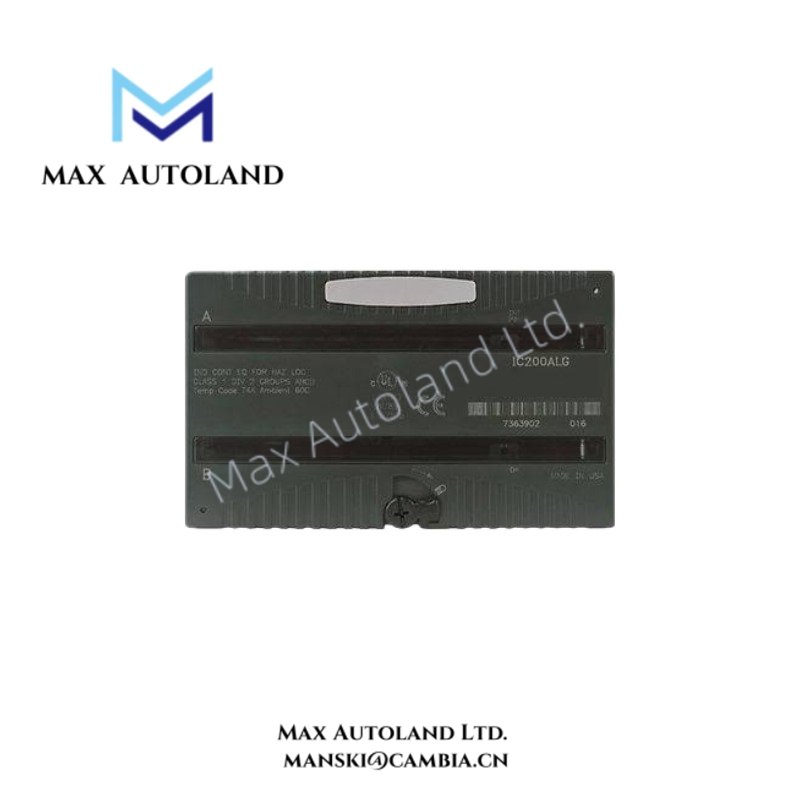

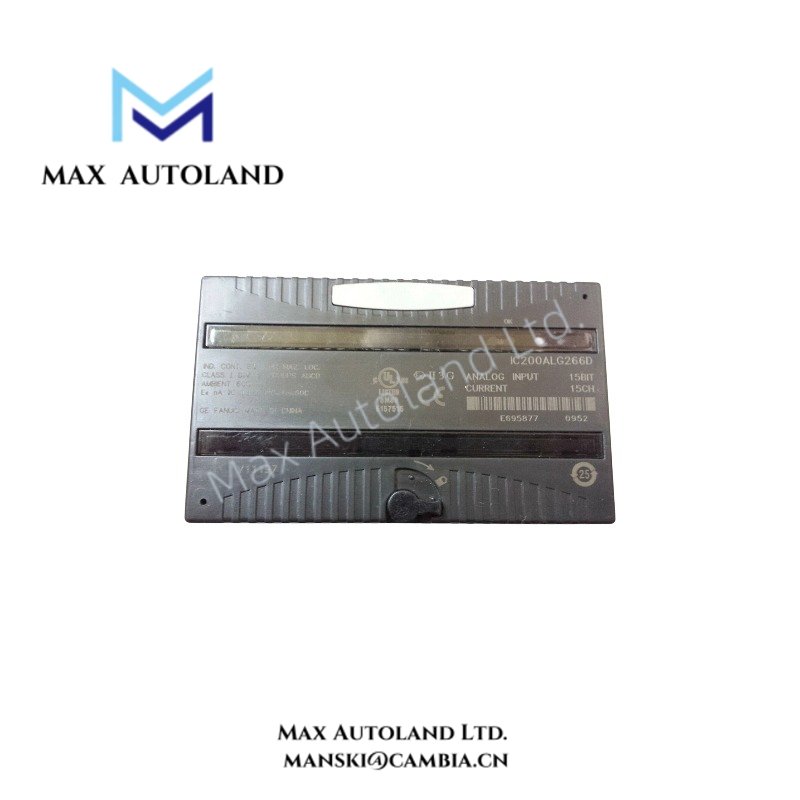

Configured for 4-20 mA current signal acquisition in the VersaMax I/O system, the GE Fanuc IC200ALG266 (IC200ALG266 Analog Input Module) provides direct electrical conversion of 15 single-ended field input channels for PLC processing. The module accepts current signals through one input group and applies 15-bit resolution for analog data handling.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC200ALG266 |
| Brand | GE Fanuc / General Electric |
| Series | VersaMax |
| Module Type | Analog Input Module |
| Product Parameters | VersaMax Input Module |
| Origin | USA |
| Weight | 0.1 kg |
| Dimensions | 11 x 5.8 x 6.5 cm |
| Operating Temp | 0 to 60 deg C specified accuracy range |
| Channels | 15 single-ended channels, one group |
| Input Signal | 4-20 mA |
| Resolution | 15 bit |
| Input Impedance | 100 Ohms |
| Input Fault Withstand | +30 V |
| Isolation | User input to logic and frame ground: 250 VAC continuous; 1500 VAC for 1 minute |
| Accuracy at 25 deg C | +/-0.3% typical of full scale; +/-0.5% maximum of full scale |
| Accuracy at 0 to 60 deg C | +/-1% maximum of full scale |
| Filter Response | 24 Hz +/-20% |
| LED Indicators | OK LED |
VersaMax I/O Density and Backplane Communication
The IC200ALG266 supports analog I/O density scaling by collecting 15 current input signals within one module group. It transfers the resulting analog information through the VersaMax I/O architecture for controller processing. Therefore, the module reduces the number of separate analog input modules required for multiple 4-20 mA field loops.
The single-group channel arrangement should also be considered during system wiring. Field wiring, signal references, and shielding practices should follow the applicable VersaMax installation requirements to maintain stable current signal measurement.
Frequently Asked Questions
Q: What type of analog signals does the IC200ALG266 accept?
A: The module accepts 4-20 mA current input signals across 15 single-ended channels.
Q: What input protection capability is specified for the module?
A: Each input has a specified fault withstand capability of +30 V. The user input circuit also provides specified isolation to logic and frame ground.
Q: What accuracy does the module provide across its specified temperature range?
A: At 25 deg C, accuracy is +/-0.3% typical and +/-0.5% maximum of full scale. From 0 to 60 deg C, the maximum specified accuracy is +/-1% of full scale.
Field Installation Guidelines
Install the IC200ALG266 in a compatible VersaMax I/O assembly according to the system hardware configuration.
Connect each 4-20 mA field loop to the designated analog input terminals and verify channel wiring before applying system power. In addition, keep analog signal conductors separated from high-current switching and motor power wiring.
Use appropriate shielded cable where the field installation requires noise reduction. Terminate cable shields according to the system grounding practice to avoid unwanted ground-loop currents.
Before commissioning, verify the field current range, input polarity, signal continuity, and controller configuration. Also confirm that field fault conditions remain within the specified input withstand limit.
