Overview

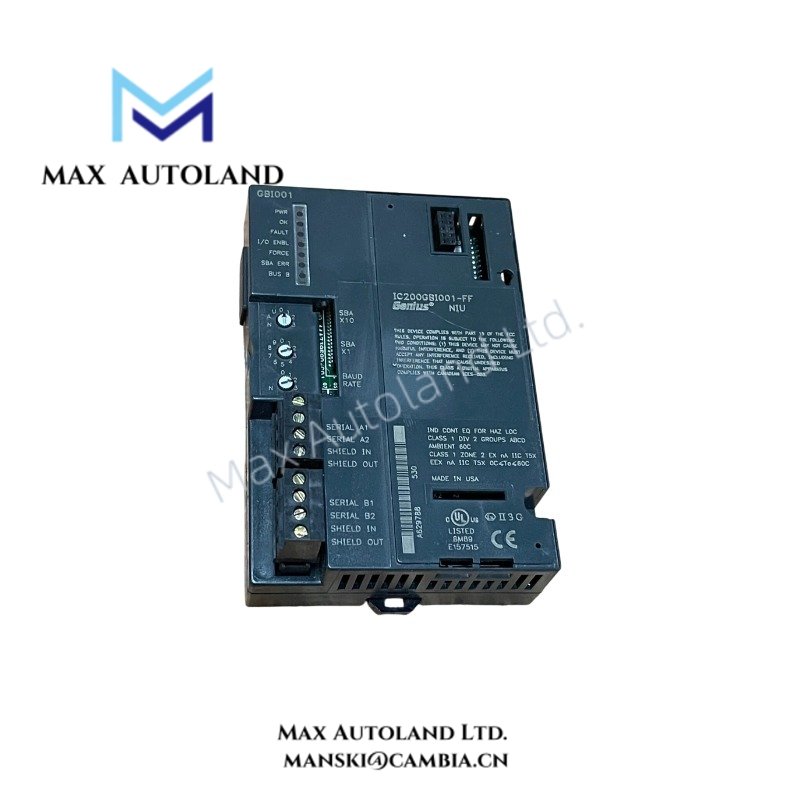

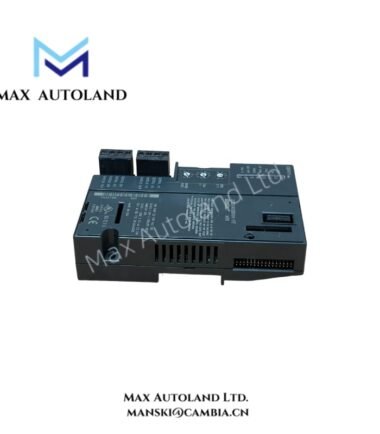

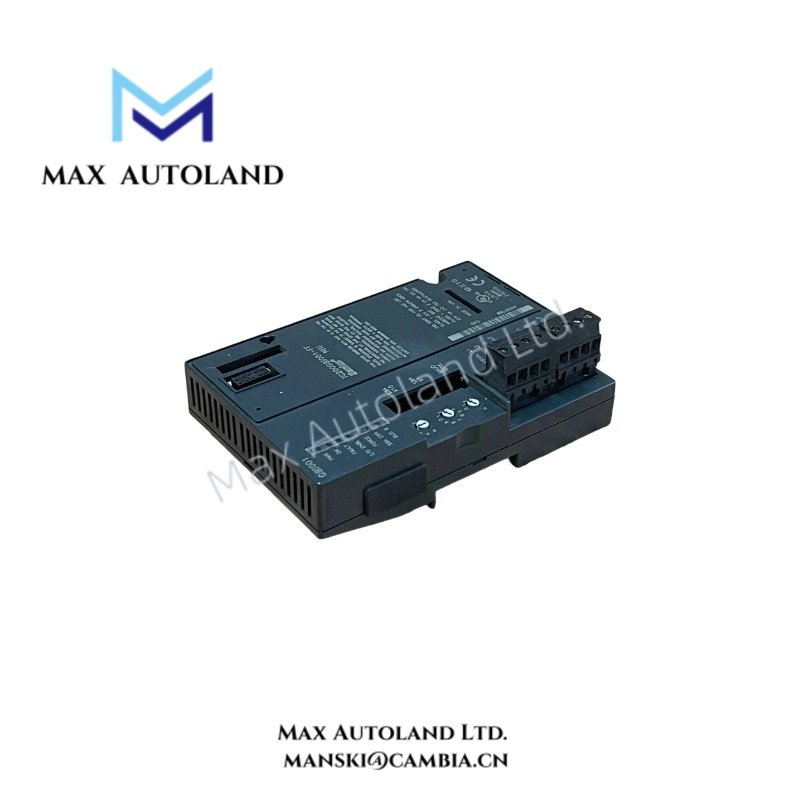

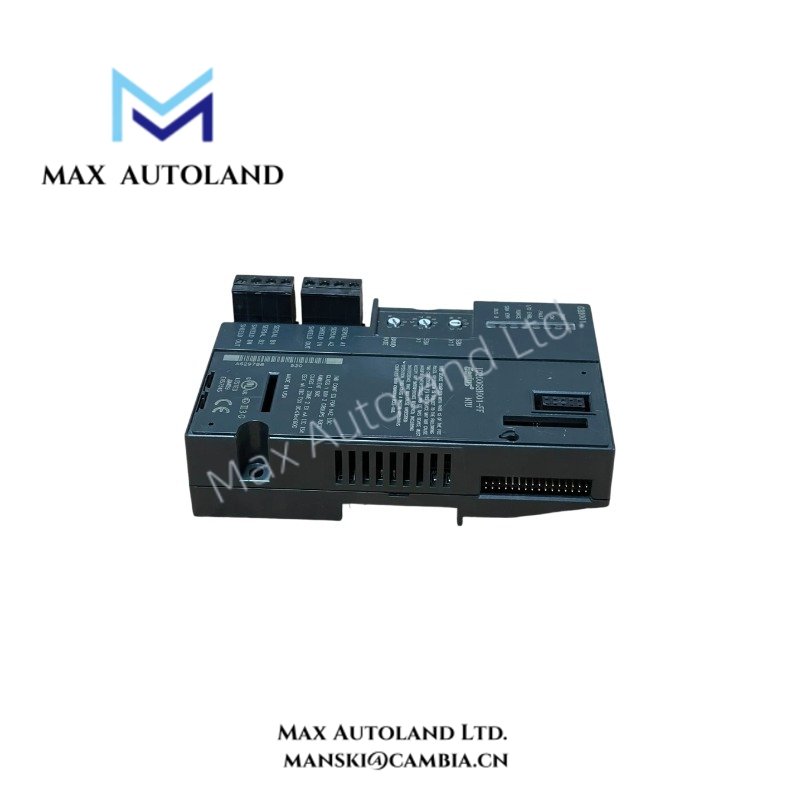

The General Electric IC200GBI001, also cataloged as the IC200GBI001 Genius Network Interface Unit, operates as a dedicated hardware component for exchanging remote I/O data across the Genius network within VersaMax control systems. It supports standard communication rates of 38.4, 76.8, and 153.6 Kbaud, while extended operation supports 153.6 Kbaud. The unit manages network inputs through bus scanning and connects up to eight I/O modules.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC200GBI001 |
| Brand | General Electric |
| Product Type | Genius Network Interface Unit |
| Series | VersaMax |
| Origin | USA |
| Weight | 0.16 kg |
| Dimensions | 12.8 x 8.5 x 4.3 cm |
| Network | Genius Network |
| Standard Communication Rates | 38.4, 76.8, 153.6 Kbaud |
| Extended Communication Rate | 153.6 Kbaud |
| Network Inputs / Bus Scan | 128 bytes |
| I/O Memory | 1024 points |
| Maximum Number of Modules | 8 modules |
| Compatible Controllers | Series 90-70, PACSystem RX7i, PACSystem RX3i |
Industrial Bus Communication and I/O Density Scaling
The IC200GBI001 performs the physical network interface function between VersaMax remote I/O hardware and the Genius communication network. It transfers I/O information through the network bus and provides 128 bytes for network input and bus scan data handling.
In addition, the unit supports I/O density scaling by managing up to eight connected VersaMax modules with a total I/O memory capacity of 1024 points. The supported communication rates allow the interface to match the configured Genius network operating speed. Therefore, the controller and remote I/O station can exchange process data through the configured network connection.
Frequently Asked Questions
Q: How many VersaMax I/O modules can the IC200GBI001 support?
A: The IC200GBI001 supports up to eight I/O modules.
Q: What Genius network communication rates does the IC200GBI001 support?
A: The unit supports standard rates of 38.4, 76.8, and 153.6 Kbaud. Extended operation supports 153.6 Kbaud.
Q: Which controllers are listed as compatible with the IC200GBI001?
A: The specified compatible controllers are Series 90-70, PACSystem RX7i, and PACSystem RX3i.
Field Installation Guidelines
Install the IC200GBI001 in the designated VersaMax I/O assembly according to the applicable General Electric hardware arrangement.
Verify the Genius network communication rate before connecting the network cable. Configure connected devices for compatible network communication settings to prevent data exchange errors.
Route network wiring separately from high-voltage power conductors and variable-frequency drive output cables where practical. Apply shield grounding according to the system wiring requirements and maintain correct network termination practices.
Before energizing the system, verify module seating, controller compatibility, network connections, and the number of installed I/O modules. Confirm that the installation does not exceed the specified eight-module capacity.
