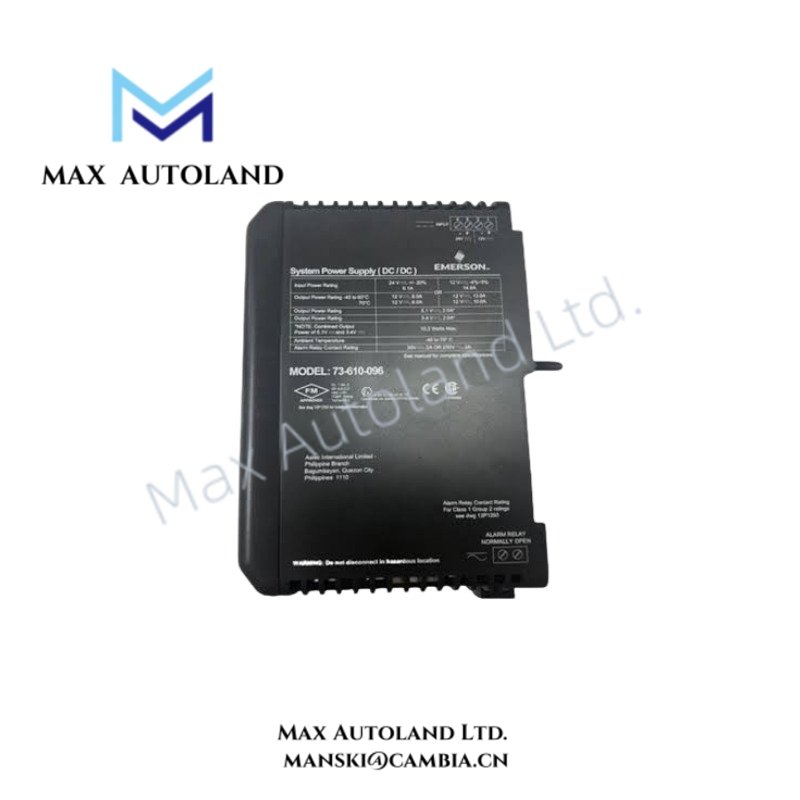

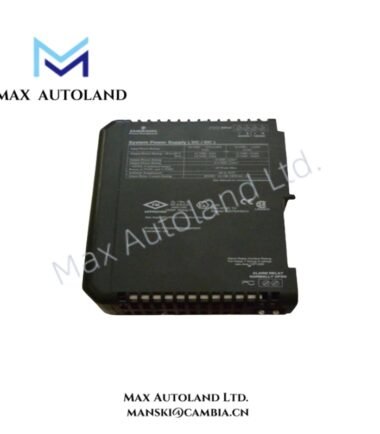

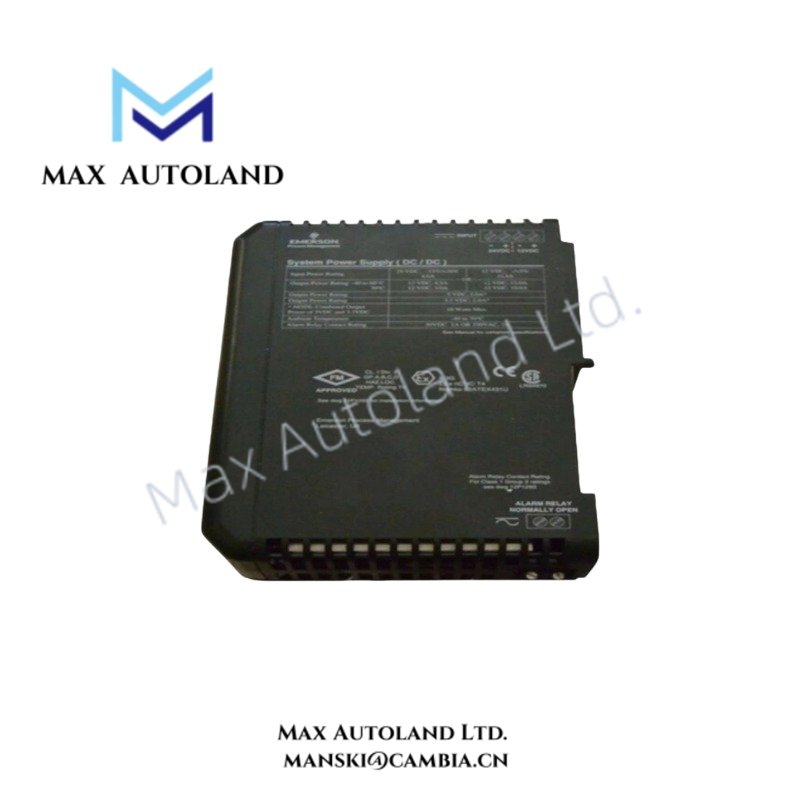

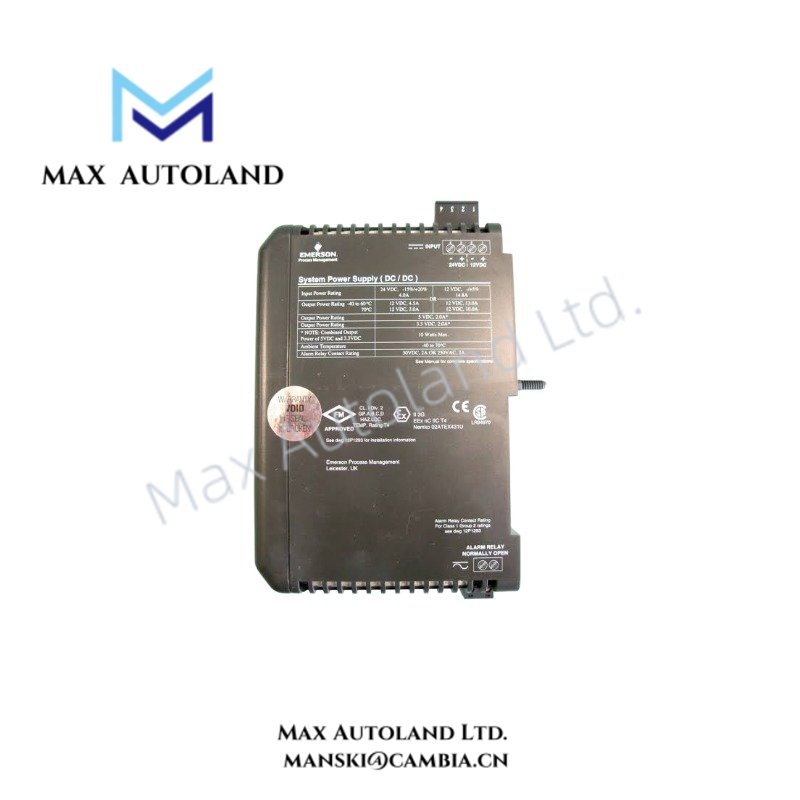

DeltaV KJ1501X1-PW1 Emerson DC Power Supply Module

Overview

Configured for regulated DC power conversion in the Emerson DeltaV system, the Emerson DeltaV KJ1501X1-PW1 (KJ1501X1-PW1 DC Power Supply Module) provides direct electrical power conditioning for DeltaV controller, I/O, and carrier backplane assemblies. The module accepts 12 VDC or 24 VDC input sources and generates regulated output rails for system hardware operation.

Hardware Specifications

DeltaV Process Control Power Architecture

The Emerson DeltaV KJ1501X1-PW1 applies regulated DC conversion technology within the DeltaV power distribution structure. It maintains controlled voltage output rails for connected controller and I/O hardware. Additionally, the module supports redundant power arrangements where multiple supply units share system loads through compatible DeltaV carrier configurations.

The module design includes hot-swap capability for supported DeltaV chassis installations. Therefore, technicians can replace the power module while maintaining energized system operation when the installed carrier configuration permits live replacement.

The KJ1501X1-PW1 supports DeltaV system architectures that require stable DC power delivery for controller electronics, I/O modules, and local bus communication circuits. Furthermore, the module minimizes voltage fluctuation effects on sensitive control electronics through regulated output management.

Frequently Asked Questions

Q: Can the KJ1501X1-PW1 operate with both 12 VDC and 24 VDC input sources?
A: Yes. The module accepts either 12 VDC or 24 VDC input configurations and provides regulated DC outputs for DeltaV hardware assemblies.

Q: Does the KJ1501X1-PW1 support hot-swap replacement?
A: The module supports hot-swap replacement when installed in a compatible DeltaV carrier configuration designed for energized module exchange.

Q: What output rails does the KJ1501X1-PW1 provide?
A: The module provides regulated 12 VDC, 5.1 VDC, and 3.4 VDC output rails for DeltaV system components.

Field Installation Guidelines

Install the KJ1501X1-PW1 inside the specified DeltaV power supply carrier or chassis location. Verify the input voltage source before connection and ensure correct polarity on DC terminals.

Use separated cable routing for power wiring and low-level signal wiring to reduce electrical interference. Maintain proper cabinet grounding practices and connect protective earth according to site electrical standards.

Before replacement, confirm the module status and verify that the carrier supports energized exchange. During installation, fully seat the module connector to maintain proper backplane electrical contact.

Inspect DC wiring insulation, terminal tightness, and grounding continuity during commissioning and scheduled maintenance activities.
