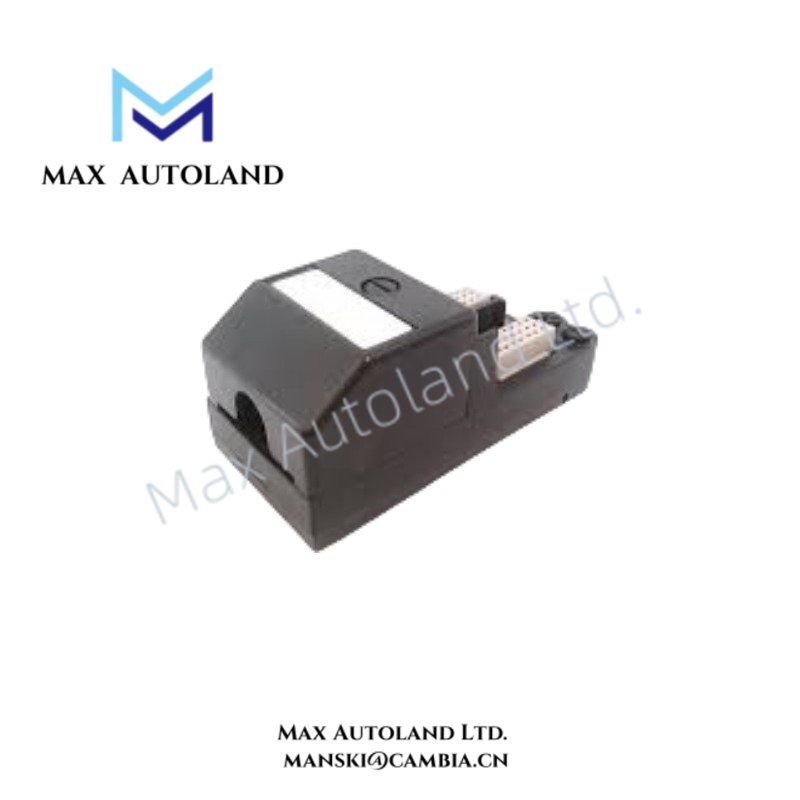

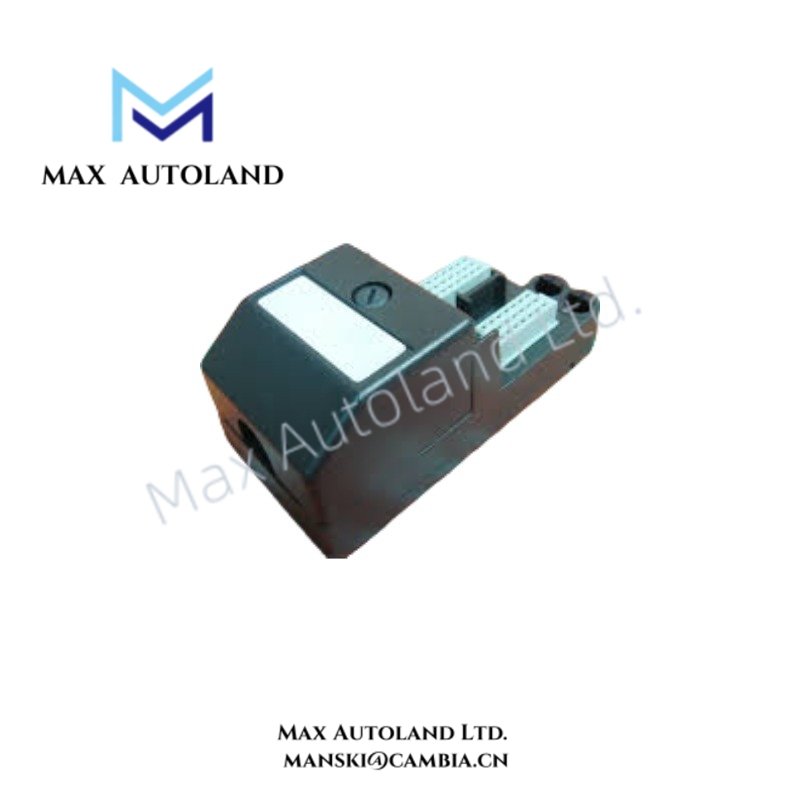

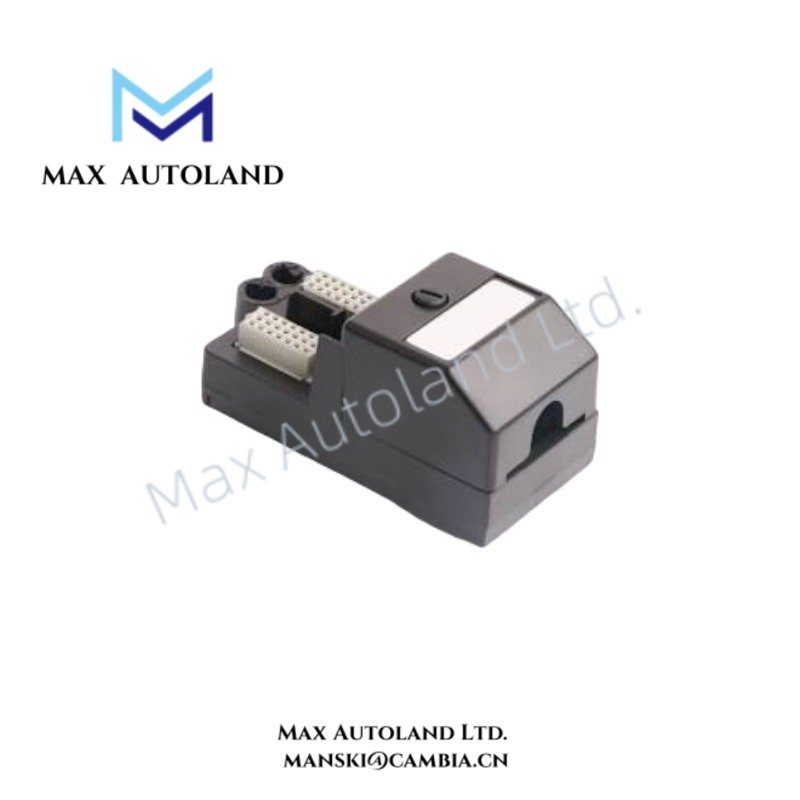

Emerson KJ4001X1-CF1 Mass Terminal Block 24 Pin

Overview

Configured for field wiring termination and electrical distribution in the Emerson DeltaV CHARMs Electronic Marshalling system, the Emerson KJ4001X1-CF1 (KJ4001X1-CF1 Mass Terminal Block 24 Pin) provides direct physical connection between field cables and the CHARMs I/O subsystem.

Hardware Specifications

Channel-to-Channel Field Termination and Isolation

The KJ4001X1-CF1 provides physical termination for DeltaV CHARMs field wiring connections. The terminal block supports structured cable routing between field devices and CHARMs I/O modules. Furthermore, the assembly maintains defined electrical connection paths for the associated I/O subsystem while operating under hazardous atmosphere installation requirements.

The Emerson CHARMs architecture separates field termination from I/O processing. Therefore, this mass terminal block allows engineers to manage field wiring independently from electronic signal conditioning modules. The unit supports installation practices required by the DeltaV Electronic Marshalling Digital Automation System Zone 2 environment.

Frequently Asked Questions

Q: Can the KJ4001X1-CF1 be removed or inserted while system power remains energized?
A: No. This unit cannot be removed or inserted with system power energized. The system must be de-energized before replacement or installation activities.

Q: Does the KJ4001X1-CF1 require field calibration or user maintenance?
A: No. The terminal block contains no user-serviceable parts and does not require calibration. The unit should not be disassembled.

Q: Which installation document defines hazardous area requirements for this terminal block?
A: Installation must follow document 12P2046, DeltaV Electronic Marshalling Digital Automation System (CHARM I/O Subsystem) Zone 2 Installation Instructions, together with the DeltaV S-Series and CHARMs Hardware Installation manual.

Field Installation Guidelines

• Install the KJ4001X1-CF1 according to DeltaV CHARMs hardware installation procedures and hazardous area requirements.
• Verify the product label for serial number, manufacturing location, and production date before installation.
• Confirm that system power is removed before inserting or removing the terminal block.
• Route field cables according to plant wiring standards to reduce electromagnetic interference and mechanical stress.
• Maintain proper cable shielding and grounding practices according to the installed control system design.
• Inspect terminal connections for correct mechanical engagement before applying system power.
• Do not disassemble the terminal block because internal components are not designed for field repair.
