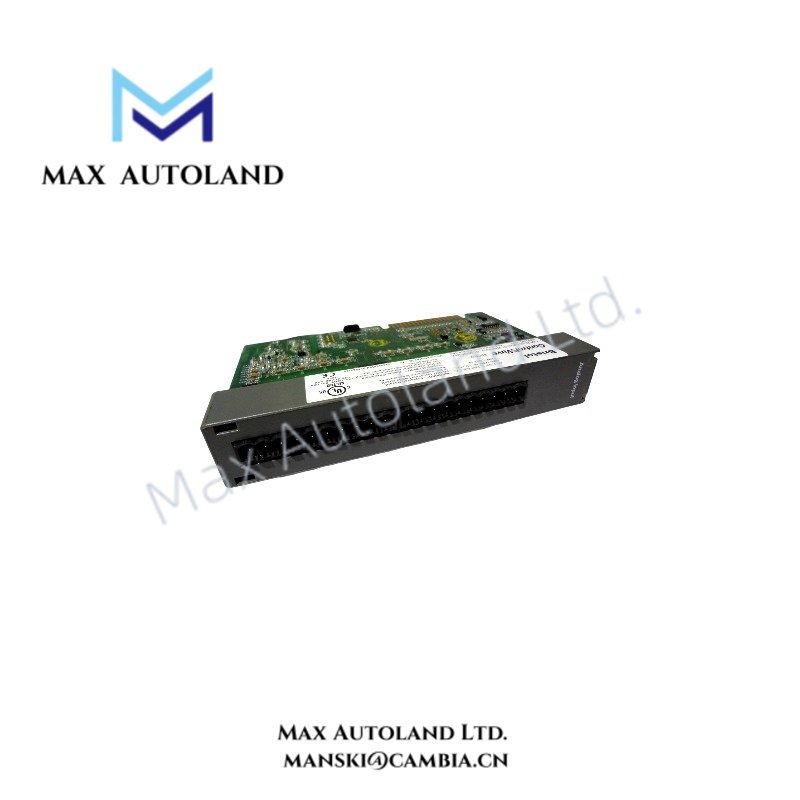

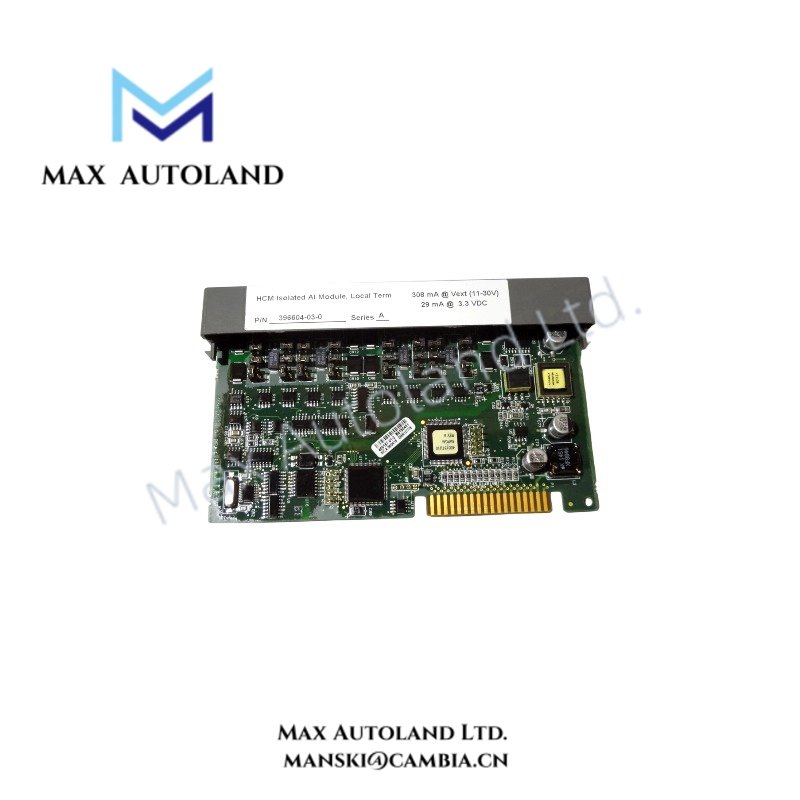

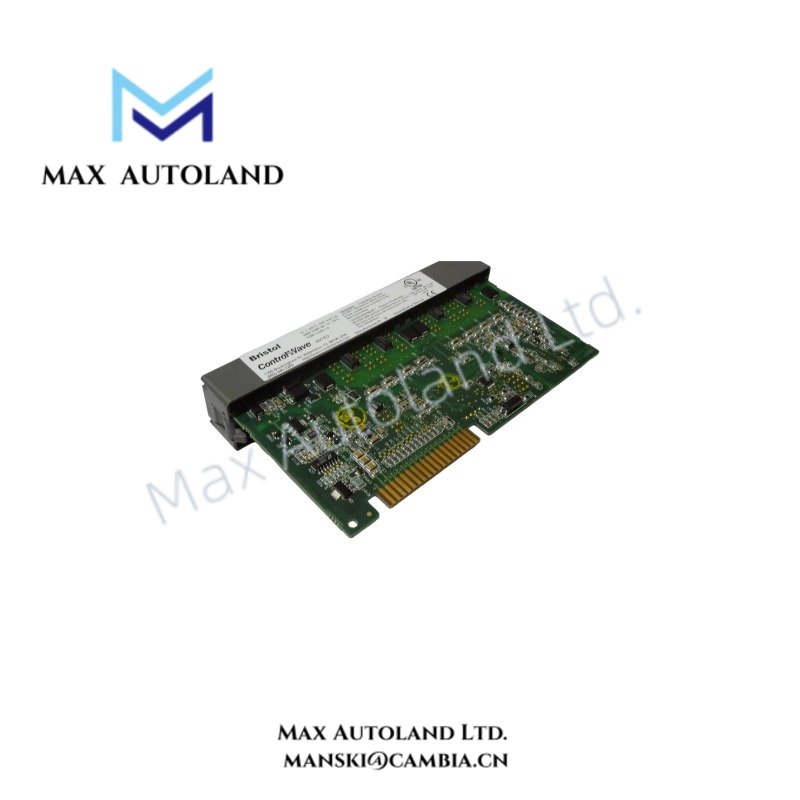

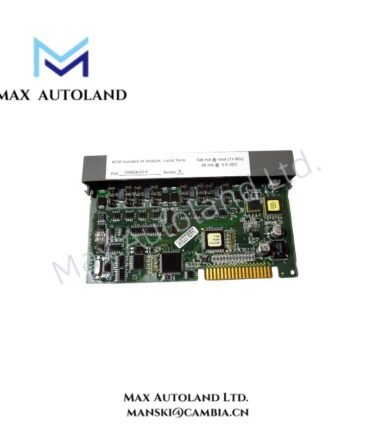

Emerson 396604-03-0 8-Point Isolated Analog Input Module

Overview

The Emerson 396604-03-0, also cataloged as the 396604-03-0 8-Point Isolated Analog Input Module, operates as a dedicated hardware component for analog signal acquisition within Emerson control rack I/O platforms.

Hardware Specifications

Process Signal Isolation and Analog Acquisition

The 396604-03-0 module provides isolated analog input channels for transferring field measurement signals into Emerson control system architectures. The isolation design separates input channels from electrical reference disturbances and reduces interference caused by ground potential differences.

Additionally, Emerson process I/O modules support engineering integration with analog transmitters and measurement devices. The module configuration depends on the installed rack, controller firmware, and application-specific I/O definitions.

For process instrumentation environments, channel-to-channel isolation improves signal separation during multi-device measurement tasks. Therefore, correct field wiring practices and shield termination methods remain necessary for maintaining measurement accuracy.

Frequently Asked Questions

Q: Does the Emerson 396604-03-0 support channel-to-channel isolation?
A: Yes. The module is specified as an isolated analog input module, providing isolation between input channels or module circuitry to reduce electrical interference.

Q: Can the 396604-03-0 directly process 4-20 mA HART communication signals?
A: Available documentation identifies the unit as an analog input module, but specific HART communication capability is not confirmed.

Q: What installation factors affect the module signal performance?
A: Field cable shielding, grounding method, signal cable routing, and compatibility with the Emerson I/O rack backplane affect analog signal performance.

Field Installation Guidelines

Install the 396604-03-0 module only in the specified Emerson control rack or compatible I/O chassis.

Use shielded instrumentation cables for analog field connections where required by the application. Terminate cable shields according to the system grounding design to reduce electromagnetic interference.

Separate analog signal wiring from high-voltage power cables and switching circuits. Verify terminal assignments, backplane connections, and controller configuration before applying field signals.

Confirm that the rack power supply and controller firmware configuration match the installed I/O module requirements before commissioning.
