Overview
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KJ3203X1-BK1 |
| Brand | Emerson |

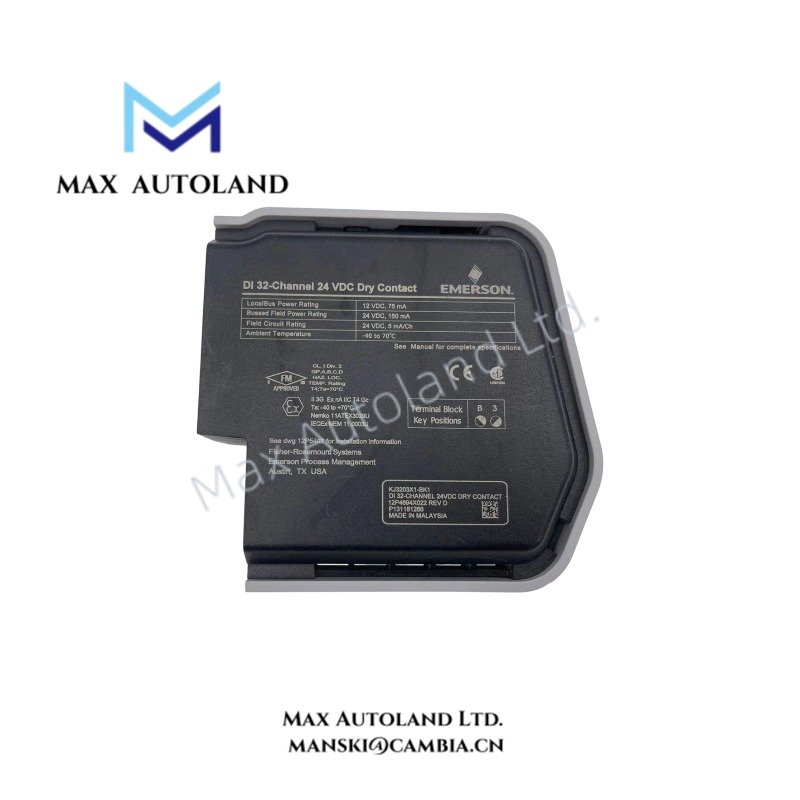

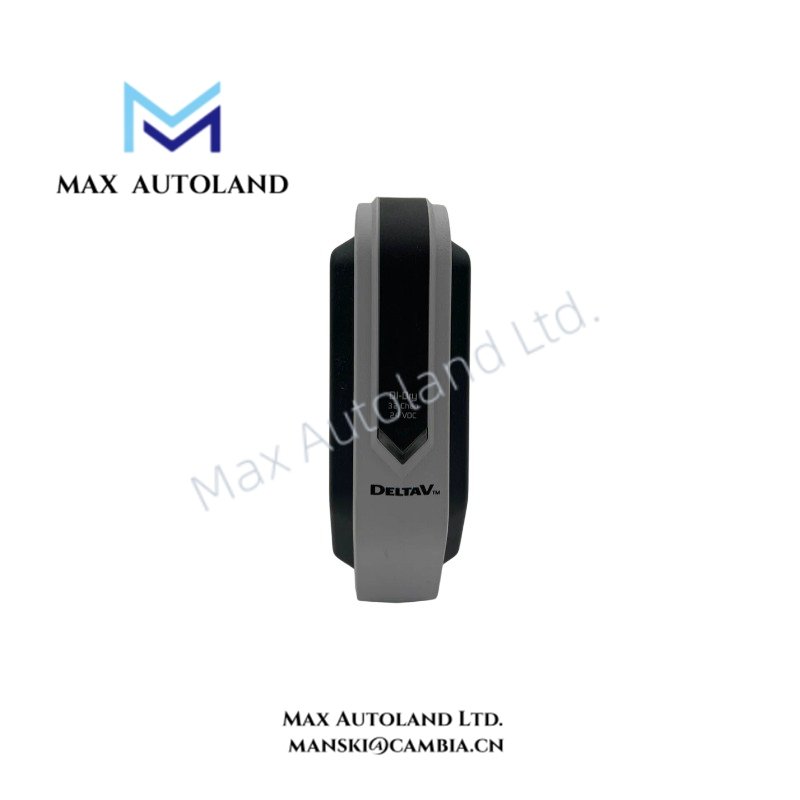

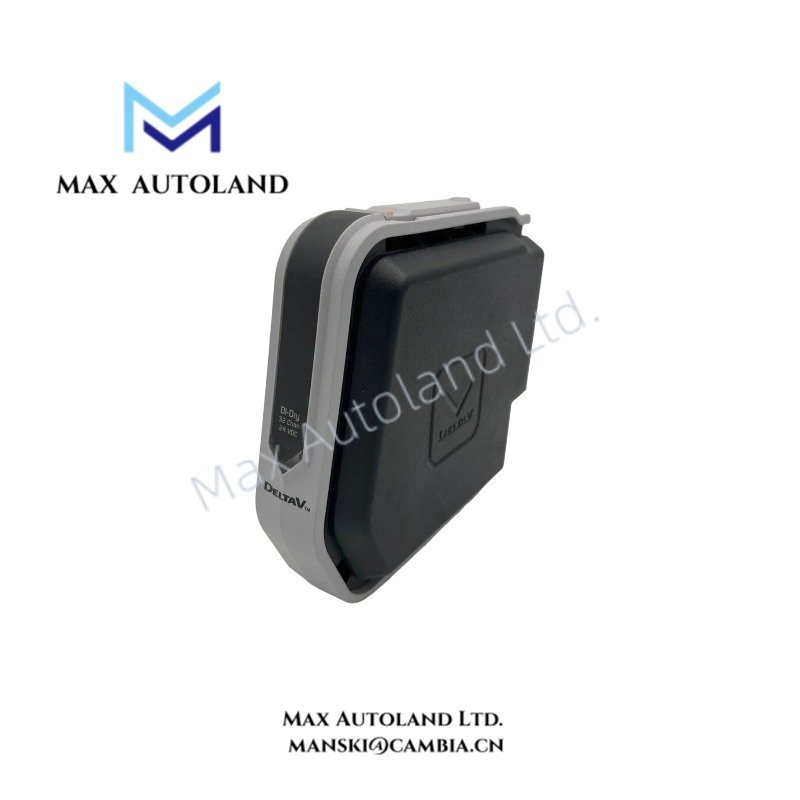

| Product Type | S-Series 32-Channel Discrete Input Card |
| System Platform | Emerson DeltaV S-Series |
| Signal Type | Digital Input for Dry Contact Signals |
| Channel Count | 32 Channels |
| Input Voltage Range | 5-60 VDC |
| On-State Threshold | <= 5 VDC (Logic “1”) |
| Off-State Threshold | >= 15 VDC (Logic “0”) |
| Input Impedance | 3.3 kOhm typical |
| Input Current | <= 8 mA at 24 VDC per channel |
| Terminal Block | Removable 16-pin terminal block, 2 groups per block |
| Wiring Specification | 12-22 AWG screw terminals |
| Terminal Torque | 0.5-0.6 N m |
| Local Bus Power Consumption | 12 VDC at 75 mA |
| Bussed Field Power | 24 VDC at 150 mA |
| Field Circuit Power | 24 VDC at 5 mA per channel |
| Origin | USA |
| Weight | 0.25 kg |
| Dimensions | Estimated shipping size: 4.1 x 13 x 13 cm |
| Operating Temp | -40 deg C to +70 deg C |
| Humidity | 5-95% RH, non-condensing |
| Tariff Code | 8537101190 |
Emerson DeltaV Digital Signal Interface Characteristics
The KJ3203X1-BK1 processes discrete field inputs through 32 independent channels and transfers digital status information to the DeltaV S-Series controller network. The module accepts DC voltage input signals from field switches, relay contacts, and binary sensing devices.
Additionally, the module design supports channel-to-channel signal separation required for process instrumentation wiring. The removable terminal block allows field wiring replacement without removing the complete electronic module assembly.
For DeltaV process control applications, the digital input architecture maintains direct signal acquisition performance for dry contact monitoring circuits. The module uses defined voltage thresholds to distinguish logic states and supports industrial field wiring practices.
Frequently Asked Questions
Q: What type of field signals can the KJ3203X1-BK1 process?
A: The KJ3203X1-BK1 processes 5-60 VDC discrete input signals from dry contact devices and DC switching circuits.
Q: Does the KJ3203X1-BK1 provide isolated input channels?
A: The module provides separated digital input channels designed for DeltaV S-Series signal acquisition. Specific isolation ratings depend on the installed DeltaV I/O architecture.
Q: What terminal connection method does the module use?
A: The KJ3203X1-BK1 uses removable 16-pin terminal blocks with screw terminals supporting 12-22 AWG field wiring.
Field Installation Guidelines
- Install the KJ3203X1-BK1 within the specified Emerson DeltaV S-Series carrier configuration.
- Verify field wiring polarity and voltage levels before connecting DC input circuits.
- Use shielded wiring practices where field environments contain electrical noise sources.
- Separate low-level signal wiring from high-current power cables to reduce interference.
- Confirm terminal screw torque during installation and maintenance procedures.
- Inspect the removable terminal block connection before system commissioning.
- Verify input channel operation through DeltaV diagnostic functions after installation.
