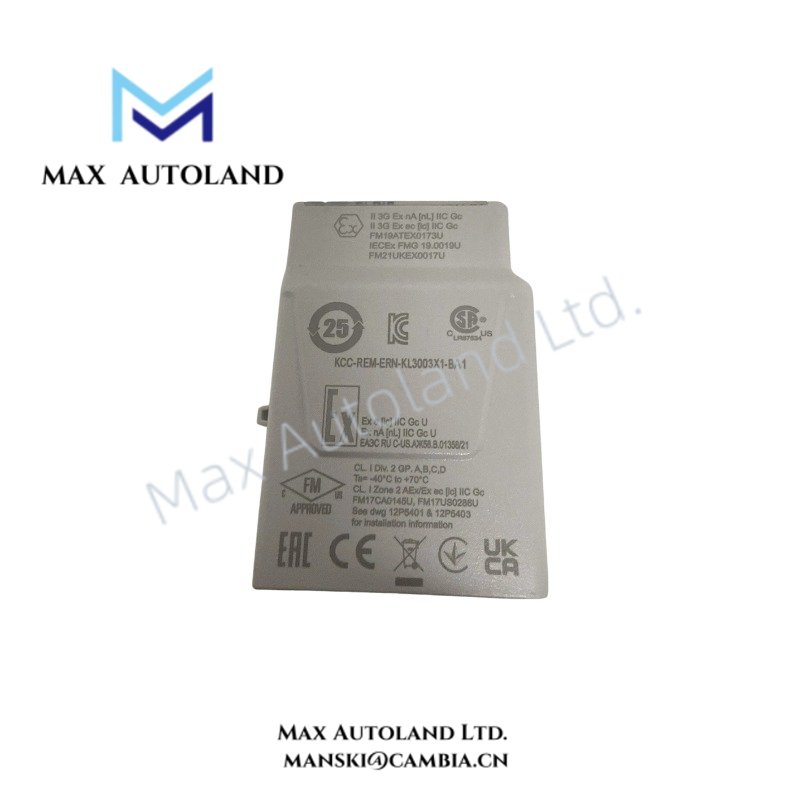

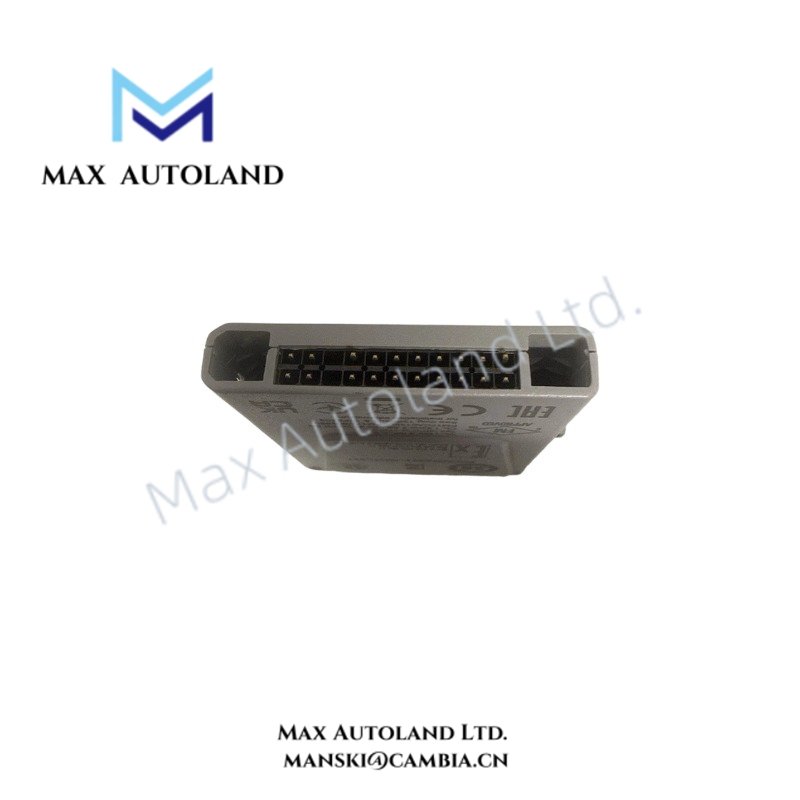

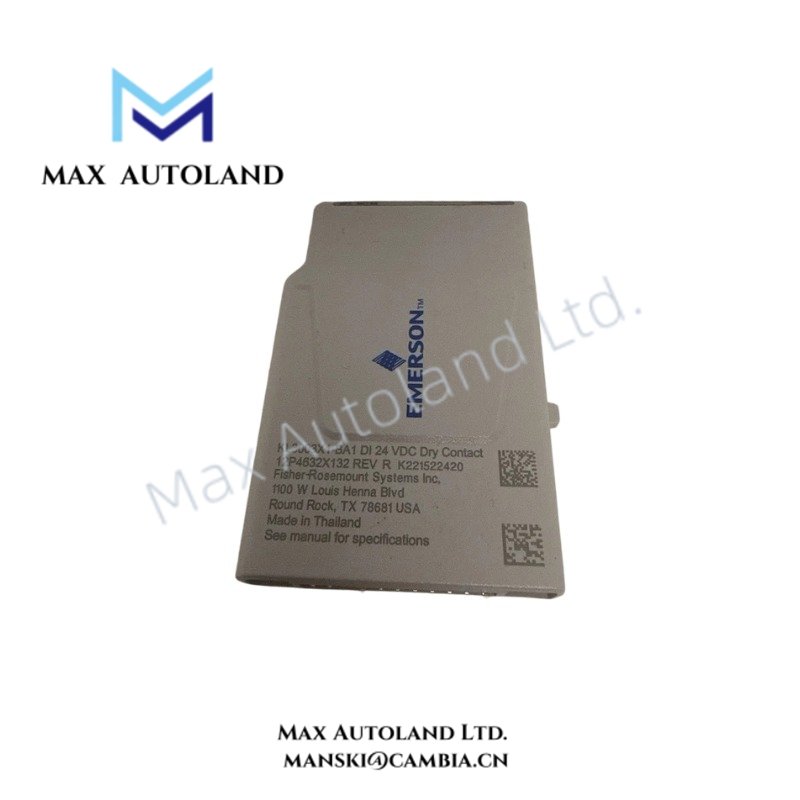

Emerson DeltaV KL3003X1-BA1 Digital Input CHARM Module

Overview

The Emerson DeltaV KL3003X1-BA1, also cataloged as the KL3003X1-BA1 Digital Input CHARM Module, operates as a dedicated hardware component for 24 VDC dry contact low-side sensing within Emerson DeltaV Distributed Control System platforms.

Hardware Specifications

DeltaV Electronic Marshalling Digital Input Characteristics

The KL3003X1-BA1 processes discrete field contact signals through a 24 VDC low-side sensing circuit. Therefore, the module accepts dry contact inputs and converts field switching states into DeltaV CHARM Bus data.

The CHARM architecture allows field termination without fixed signal-type allocation at the marshalling cabinet level. Consequently, the module supports flexible I/O assignment and reduces conventional point-to-point wiring requirements.

The module consumes +6.3 VDC from the CHARM Bus while maintaining a dedicated field circuit supply interface. Additionally, the electrical design separates field input behavior from controller-level processing to support distributed I/O deployment.

For Emerson process control installations, the module operates with DeltaV channel-to-channel isolation principles and supports direct integration of discrete field devices into the DCS I/O structure.

Frequently Asked Questions (FAQ)

Q: What type of field signals does the KL3003X1-BA1 accept?
A: The KL3003X1-BA1 accepts 24 VDC dry contact inputs using a low-side sensing configuration. It detects contact state changes and transfers the status through the DeltaV CHARM Bus.

Q: Can the KL3003X1-BA1 be replaced while the system remains powered?
A: Yes. The module supports hot swap replacement when technicians follow the specified DeltaV installation limitations and energy restriction requirements.

Q: What environmental conditions does the KL3003X1-BA1 support?
A: The module operates from -40 deg C to +70 deg C and supports 5% to 95% non-condensing relative humidity conditions.

Field Installation Guidelines

Install the KL3003X1-BA1 according to Emerson DeltaV CHARM system installation procedures. First, verify terminal block keying before inserting the module to prevent incorrect module placement.

Connect field dry contact wiring with appropriate industrial wiring practices. Keep field signal cables separated from high-voltage power conductors to reduce electrical interference.

Terminate cable shields according to the site grounding standard when shielded cables are used. Avoid routing input wiring near high-current switching devices, motor feeders, or electromagnetic noise sources.

Confirm the 24 VDC field circuit polarity and contact wiring arrangement before commissioning. After installation, verify input state changes through DeltaV engineering tools and confirm correct channel operation.
