Overview

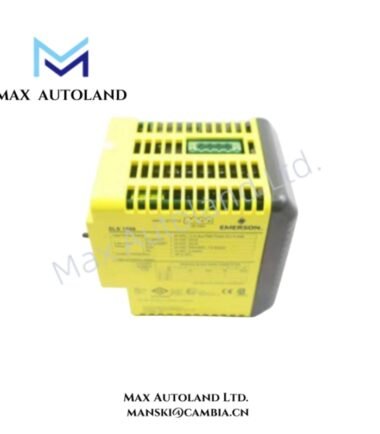

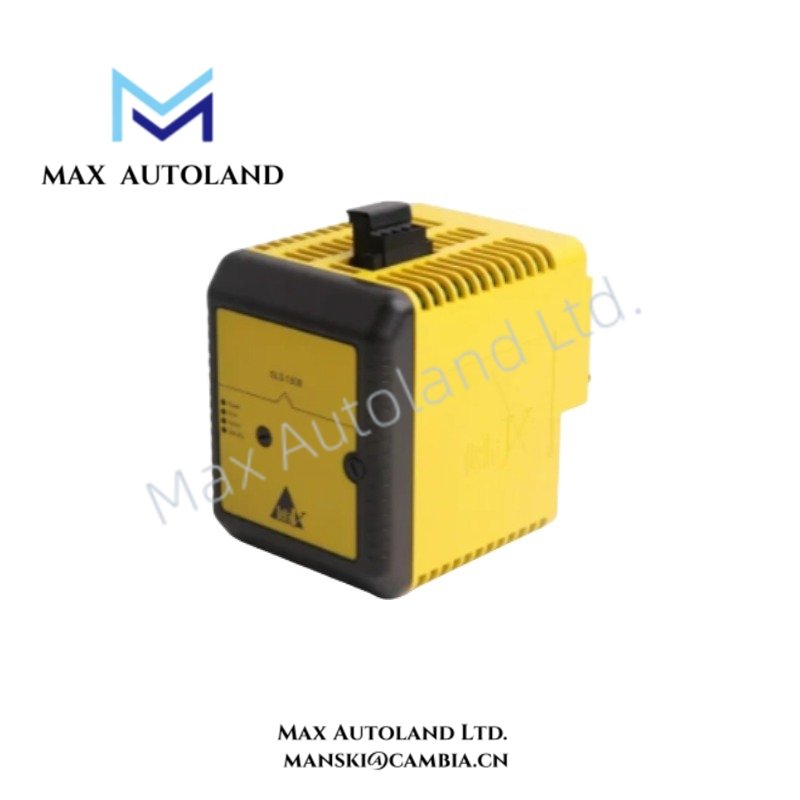

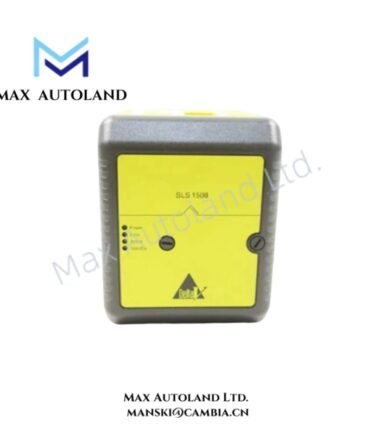

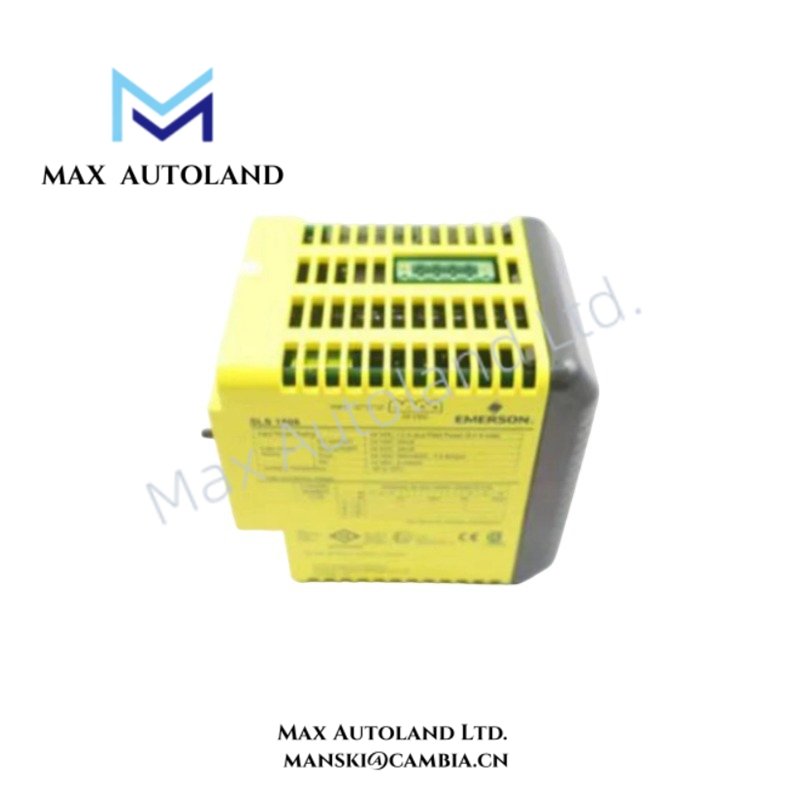

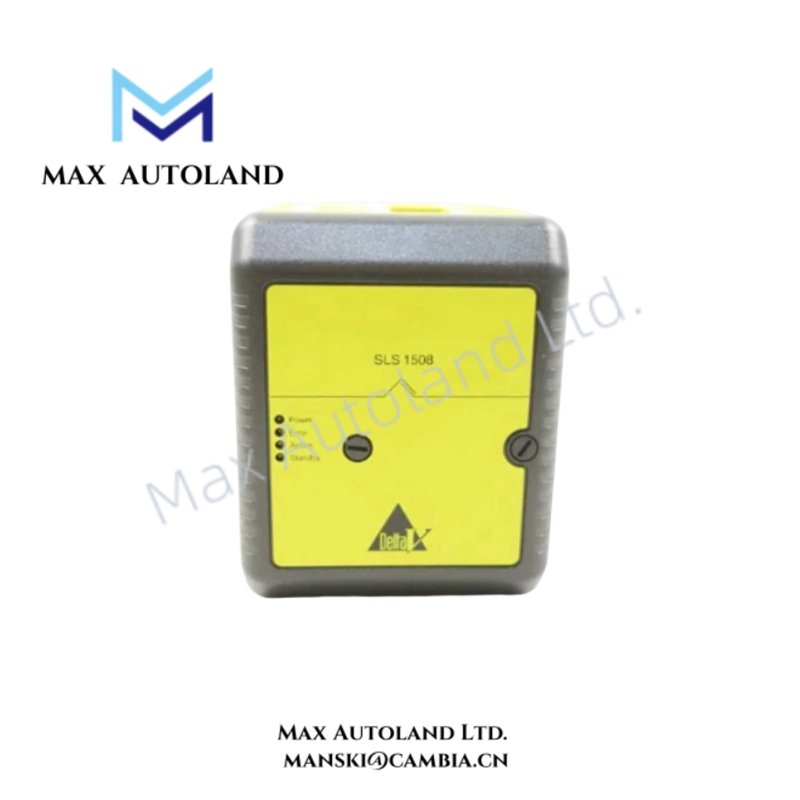

The Emerson DeltaV KJ2201X1-PW1, also cataloged as the KJ2201X1-PW1 Safety Logic Solver Hardware Module, operates as a dedicated hardware component for power distribution and safety execution tasks within Emerson DeltaV SIS platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KJ2201X1-PW1 |
| Brand | Emerson |
| Origin | USA |
| Product Type | Safety Logic Solver Hardware Module |
| Weight | Approx. 4.2 lbs (1.9 kg) |
| Dimensions | Approx. 7.5 x 5.5 x 4.5 inches (19.05 x 13.97 x 11.43 cm) |
| Operating Temp | -10 deg C to +60 deg C |
| Power Consumption | Supports up to 1.8 kW power rating |
| Input Voltage | 24 VDC |
| Output Voltage Range | 0-360 VDC (application dependent) |
| Current Rating | 5 A maximum/nominal depending on configuration |
| System Compatibility | Emerson DeltaV DCS and SIS platforms |
| Safety Capability | Supports safety instrumented applications up to SIL 3 |
| Communication Interface | SISnet, Ethernet |
Process Control Interface and Safety Signal Characteristics
The KJ2201X1-PW1 operates within Emerson DeltaV SIS architectures and manages electrical execution paths associated with safety control functions. The module processes configured logic interactions between DeltaV safety controllers and connected field devices.
Furthermore, Emerson SIS hardware designs support industrial communication structures that integrate process instrumentation signals. Depending on the installed I/O architecture, DeltaV systems support 4-20 mA HART loop protocol, FOUNDATION Fieldbus, and Profibus PA connectivity for process measurement devices.
The module installation also follows DeltaV channel-to-channel isolation requirements to maintain signal separation between independent safety circuits. This design reduces unwanted electrical interaction between field wiring groups and improves safety loop integrity.
Frequently Asked Questions (FAQ)
Q: Does the KJ2201X1-PW1 operate as a standalone controller?
A: No. The module functions as part of an Emerson DeltaV SIS hardware architecture and requires integration with compatible DeltaV safety system components.
Q: What power input does the KJ2201X1-PW1 require?
A: The module uses a 24 VDC input supply. The installed system configuration determines the final power distribution arrangement and load conditions.
Q: Can the KJ2201X1-PW1 support SIL 3 safety applications?
A: The module is designed for use in DeltaV SIS architectures that support SIL 3 safety instrumented functions when the complete safety loop configuration meets applicable requirements.
Field Installation Guidelines
- Install the module inside a compatible Emerson DeltaV SIS cabinet or approved mounting assembly.
- Verify that the 24 VDC supply wiring matches the system power distribution design before energizing the module.
- Separate safety signal wiring from high-voltage power cables to reduce electromagnetic interference.
- Connect cable shields according to the site grounding standard and DeltaV cabinet wiring practices.
- Confirm communication connections through the configured SIS network interface before system commissioning.
- Inspect terminal connections for correct polarity, secure fastening, and proper conductor routing.
- Follow Emerson DeltaV installation manuals for module replacement, maintenance access, and system diagnostics.
